8. Technical references
8.3 Electrical connections

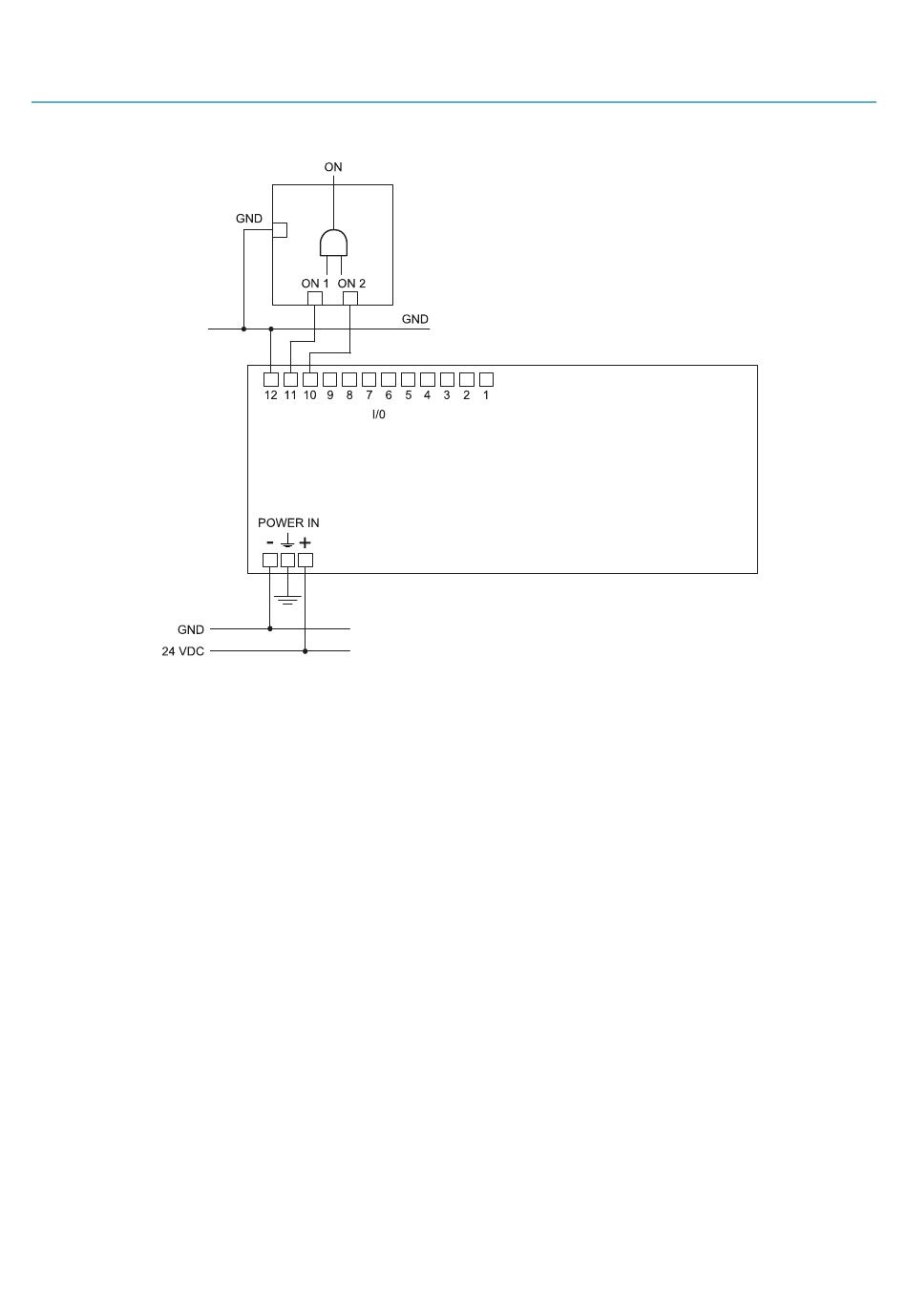

8.3.1 Connection of safety outputs to the machinery control system
Digital I/O settings (through the Inxpect Safety application)
Digital input #1 Not configured
Digital input #2 Not configured
Digital output #1 Detection signal 1
Digital output #2 Detection signal 1
Digital output #3 Not configured
Digital output #4 Not configured
84
SBV System Series | Instruction manual v1.2 DEC 2021 | SAF-UM-SBVBus-en-v1.2 | © 2021 Inxpect SpA
