6.2.5 Install the sensors
Note: for an example of sensor installation, see "Examples of sensor installation" on page 56.

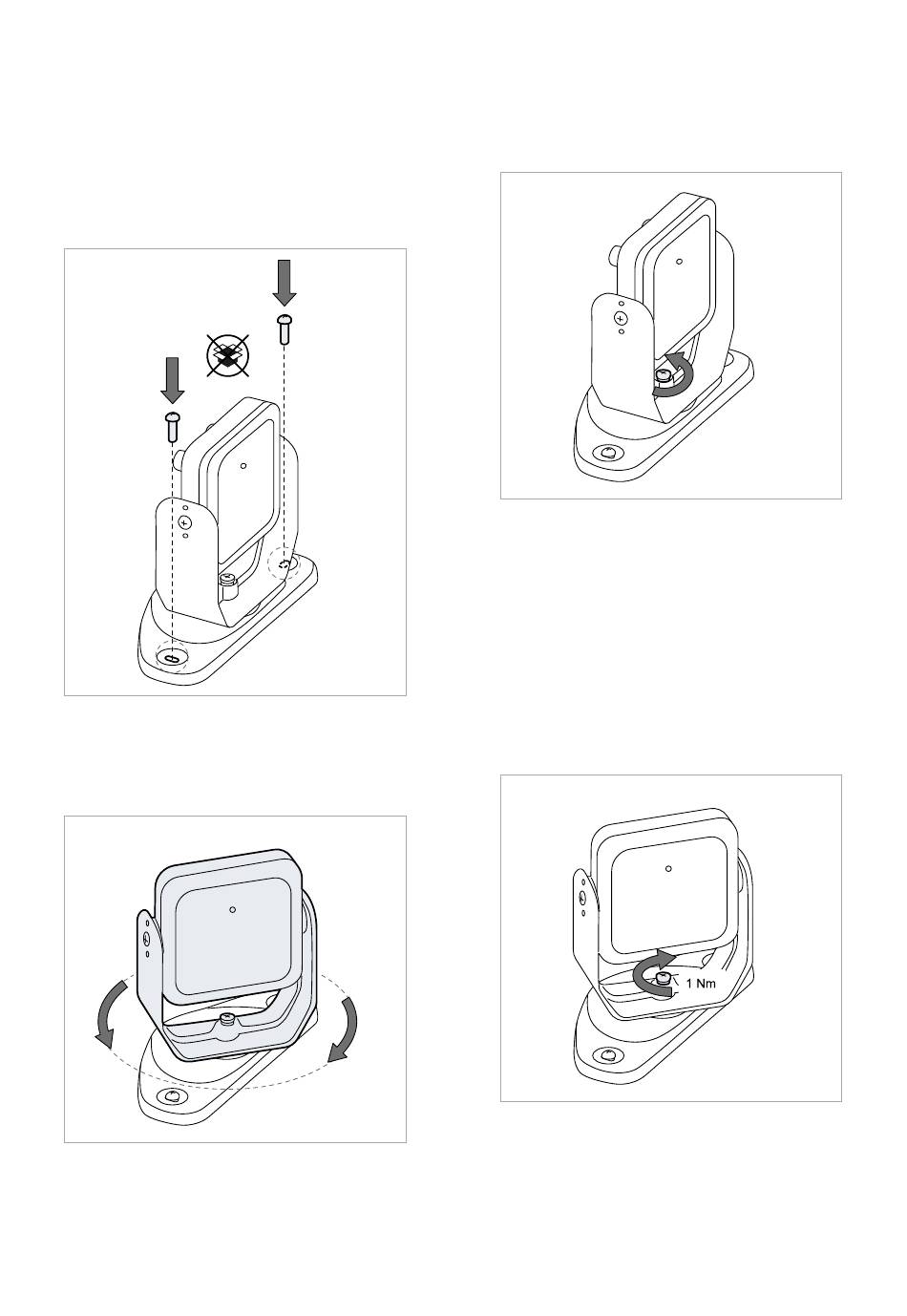

1. Position the sensor as indicated in the
configuration report and fasten the bracket
with two tamper-proof screws directly onto the
floor or another support.
NOTICE: make sure the support does not inhibit
machinery commands.
3. Pan the sensor until it reaches the desired
position.
Note: a notch is equal to 10° of rotation.
SBV System Series | Instruction manual v1.2 DEC 2021| SAF-UM-SBVBus-en-v1.2 | © 2021 Inxpect SpA
2. With an Allen key, loosen the screw at the
bottom to pan the sensor.
4. Tighten the screw.
