6. Installation and use procedures

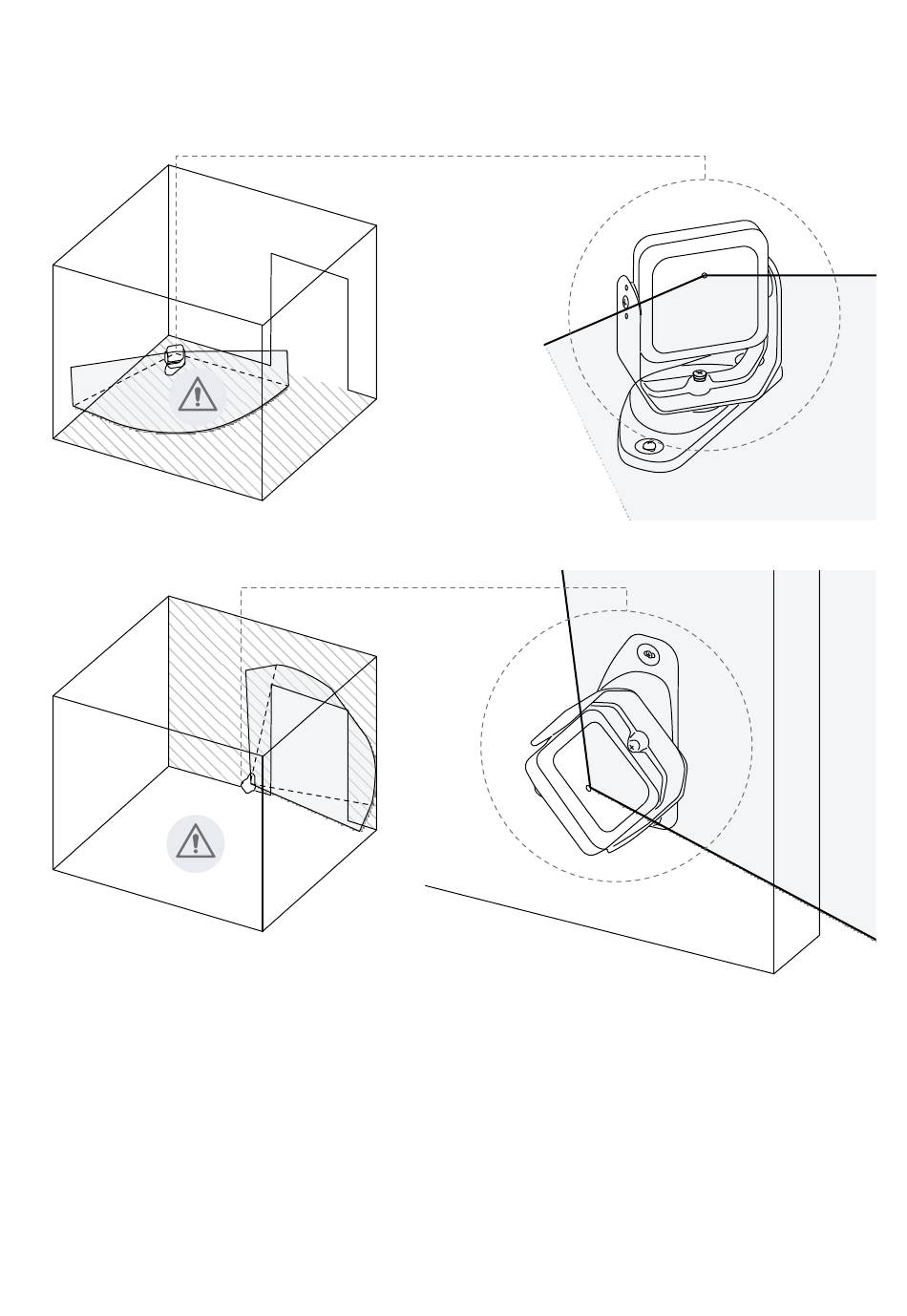

6.2.7 Examples of sensor installation
NOTICE: refer to the sensor LED position to identify the sensor field of view. See "Position of the field of view" on
page 44.
Floor installation
Wall installation (for example for access control of an entrance).
Note: install the sensor so that the field of view is shifted towards the outside of the hazardous area to avoid false alarms, see
"Position of the field of view" on page 44.
56
SBV System Series | Instruction manual v1.2 DEC 2021 | SAF-UM-SBVBus-en-v1.2 | © 2021 Inxpect SpA
