9. Mechanical Information

9.1.

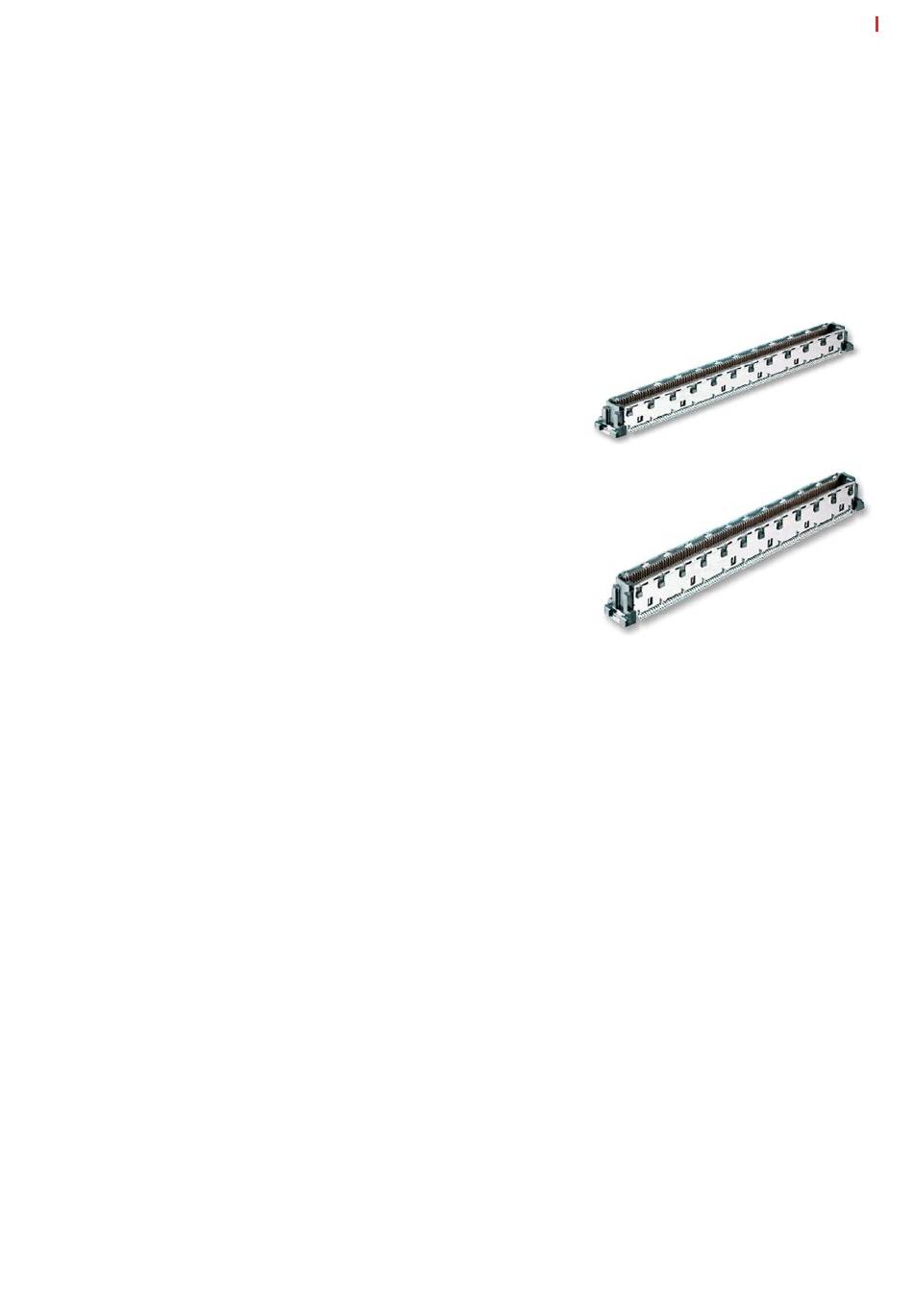

Board-to-Board Connectors

To allow for different stacking heights, the receptacles for COM Express carrier boards are available in two heights: 5 mm and 8 mm. When
5 mm receptacles are chosen, the carrier board should be free of components.
Tyco 3-1827253-6
Foxconn QT002206-2131-3H
•
220-pin board-to-board connector with 0.5mm for a stacking height of 5 mm.
•
This connector can be used with 5 mm through-hole standoffs (SMT type).
Tyco 3-6318491-6
Foxconn QT002206-4141-3H
•
220-pin board-to-board connector with 0.5mm for a stacking height of 8 mm.
•
This connector can be used with 8 mm through-hole standoffs (SMT type).
Common Specifications
•
Current capacity: 0.5A per pin
•
Rated voltage: 50 VAC
•
Insulation resistance: 100M or greater @ 500 VDC
•
Temperature rating: -40°C ~ 85°C
•
UL certification (ECBT2.E28476)
•
Copper alloy (contacts)
•
Housing: thermo-plastic molded compound (L.C.P.)
