9.2.

Thermal Solution (PM check)

9.2.1.

The function of the heat spreader is to ensure an identical mechanical profile for all COM Express modules. By using a heat spreader, the

thermal solution that is built on top of the module is compatible with all COM Express modules.

9.2.2.

A heat sink can be used as a thermal solution for a specific COM Express module and can have a fan or be fanless, depending on the

thermal requirements.

9.2.3.

Install a heat spreader or heat sink using the following instructions.

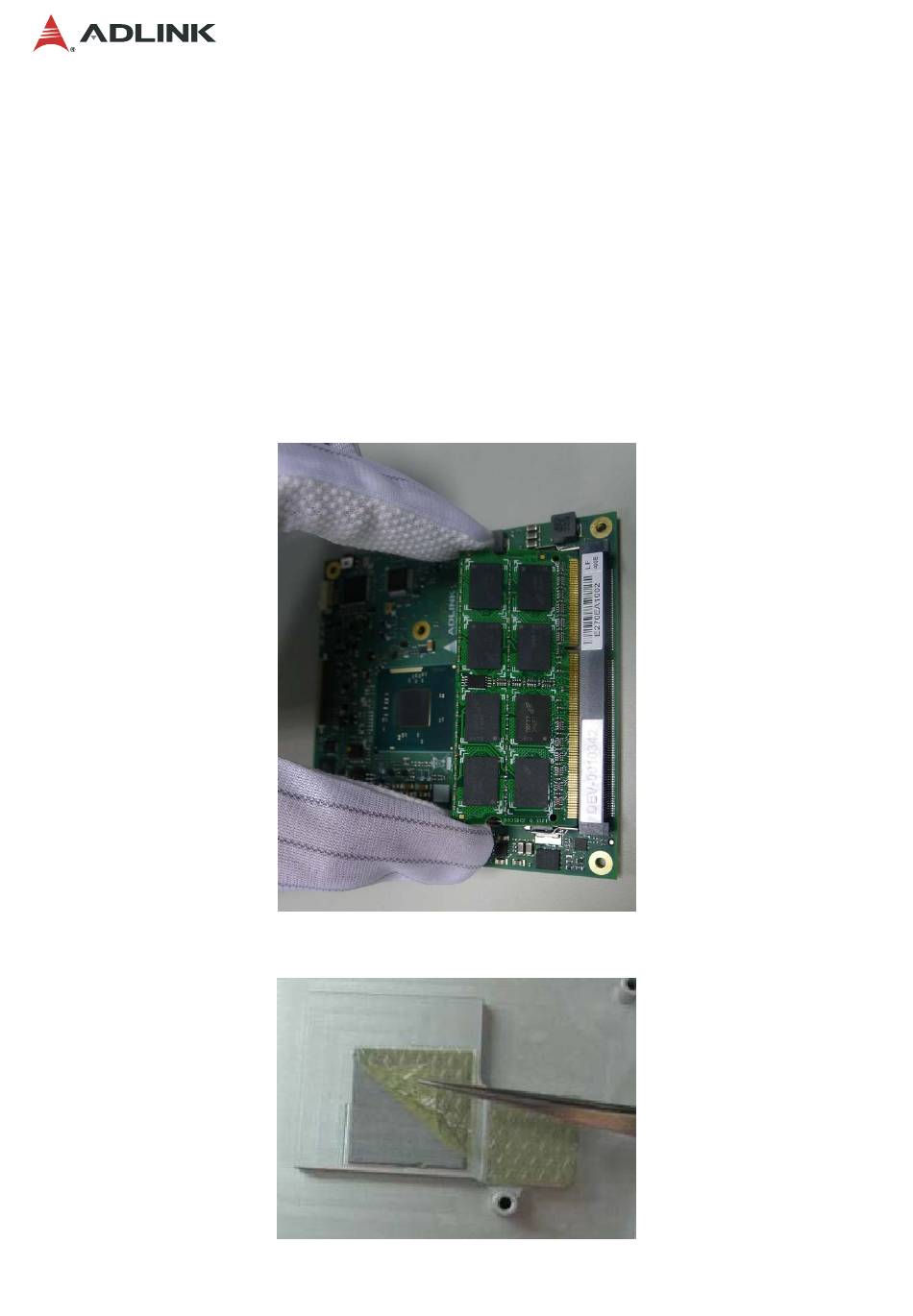

Step 1: Before mounting the heatsink, install the required memory modules onto the SODIMM socket(s) on the COM Express module.

Step 2: Remove the protective membranes from the thermal pads.

Page 84
