  • Page 1 Series 3U Height Subsystems for CompactPCI Modules User’s Manual Manual Rev.: 2.00 Date: September 15, 2014 Part Number: 50-15091-2000...
  • Page 2 Description of Change(s) 2.00 September 15, 2014 Initial release Copyright 2014 ADLINK Technology, Inc. All Rights Reserved. The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer.

  • Page 3: Table Of Contents

    Product Definition ..............1 Mechanical Drawing ..............2 Configurations................3 Customized Systems ..............3 Getting Started ................5 Shipping Contents ..............5 CompactPCI Board & PSU Installation cPCIS-1100 Series models with CompactPCI PSU(s) ............5 RTM (Rear Transition Module) Installation........8 Powering Up the System ............9 Backplane ..................11 cBP-3208[R] Backplane............11 Specifications ..............11...
  • Page 4 CompactPCI: cPS-H325/AC............35 Features ................35 Specifications ..............35 Input Characteristics............35 Output Characteristics ............36 CompactPCI ETT PSU: cPS-P325/AC........37 Features ................37 Specifications ..............37 Input Characteristics............37 Output Characteristics ............38 Specifications ................41 Features...................41 Mechanical................41 Environmental................42 Important Safety Instructions ...........43 iv Table of Contents...

  • Page 5: Introduction

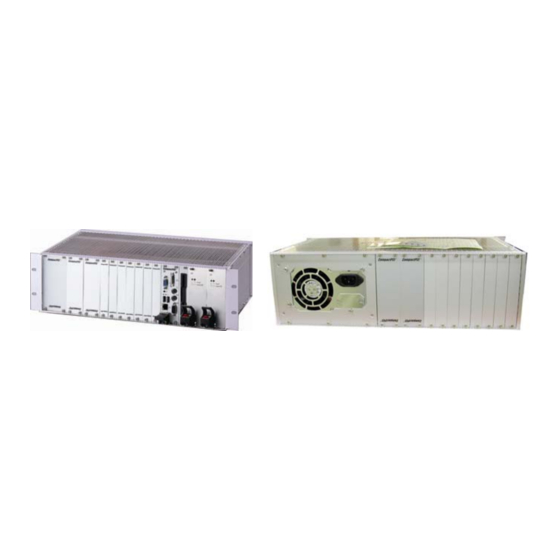

    Introduction Product Definition The cPCIS-1100 Series Subsystems are rack mountable, 3U in height, and designed for 3U CompactPCI cards and modules. They are ideal for industrial or transport applications where small chassis size with multi- functionality are important, and provide ample power capacity, a hot swap backplane and easy maintenance.

  • Page 6: Mechanical Drawing

    Mechanical Drawing Introduction...

  • Page 7: Configurations

    Configurations The cPCI-1100 Series comes in the following configurations: System Peripheral PSU(s) Monitor PICMG Slots Slots cPCIS-1100A[R] 400W ATX — 2.0, 2.1 250W cPCIS-1101[R] — 2.0, 2.1, 2.11 cPCI 250W cPCIS-1102[R] — 2.0, 2.1, 2.11 cPCI (1+1) 250W cPCIS-1202[R] 1 x 2 5 x 2 —...
  • Page 8 This page intentionally left blank. Introduction...

  • Page 9: Getting Started

    In this chapter, we will describe the unpacking procedure of the sub-system and CompactPCI board and power supply unit (PSU) installation procedures for cPCIS-1100 Series models with CompactPCI PSU(s) only. Shipping Contents Check the shipping carton for any damage. If the shipping carton and contents are damaged, please notify the dealer for a replacement.
  • Page 10 System Card Slot Peripheral Card Slots The handle on CompactPCI cards and PSUs ensures simple and safe installation and removal. Please follow the procedures below to install a CompactPCI module into a cPCIS-1100 Series chassis with CompactPCI PSU(s): Getting Started...
  • Page 11 CompactPCI Card Installation/Removal Procedure Place the sub-system on a level surface or rackmount it. Remove the blanking plates where required by undoing the retaining screws at each end. Retain the blanking plates for possible future use. The system should not be put into use without blanking plates for all empty slots, otherwise the EMC will be compromised Hold the SBC module, peripheral card or PSU module vertically.

  • Page 12: Rtm (Rear Transition Module) Installation

    Fully Latched Handle Engages with Chassis System Card Fully Inserted To remove the module, press the release button (if necessary), and reverse steps 1 through 5 above. RTM (Rear Transition Module) Installation Getting Started...

  • Page 13: Powering Up The System

    The installation and removal procedures for a RTM are the same as those for CompactPCI boards. Because they are shorter than front boards, pay careful attention when inserting or removing RTMs. Only models with an “R” at the end of the model number support RTMs. Note: We strongly recommended the use of RTMs with AB type connectors to prevent damaging the backplane during RTM installation.
  • Page 14 This page intentionally left blank. Getting Started...

  • Page 15: Backplane

    Backplane In this chapter, we will describe the backplanes for the cPCIS-1100 Series subsystems. The following table specifies the backplane(s) that correspond to each model. power backplane slots backplane cPCIS-1100A[R] cBP-3208[R] — cPCIS-1101[R] cBP-3208[R] cBP-3061 cPCIS-1102[R] cBP-3208[R] cBP-3062A cPCIS-1202[R] cBP-3206[R]...

  • Page 16: Mechanical Drawing

    Peripheral slots: 7 Peripheral Slots Rear I/O: P2 rear I/O with AB-type shroud (optional) Power Connectors: ATX connector x2, DC screw terminals V (I/O): 3.3V or 5V selectable, default 5V Other connectors: INH#, Reset, PWR_FAL# Mechanical Drawing 8 - P2 1 - P2 8 - P1 1 - P1...
  • Page 17 1 - P2 Optional Rear I/O: 2 - P2 to 8 - P2 cBP-3208[R] Rear View Backplane 13...

  • Page 18: Pin Assignment

    Pin Assignment [1 – P1] System Slot REQ64# ENUM# +3.3V AD[1] V(I/O) AD[0] ACK64# +3.3V AD[4] AD[3] AD[2] AD[7] +3.3V AD[6] AD[5] +3.3V AD[9] AD[8] M66EN C/BE[0]# AD[12] V(I/O) AD[11] AD[10] +3.3V AD[15] AD[14] AD[13] SERR# +3.3V C/BE[1]# +3.3V IPMB_SCL IPMB_SDA PERR# DEVSEL# V(I/O)
  • Page 19 [1 – P2] System Slot CLK6 CLK5 PRST# REQ6# GNT6# DEG# FAL# REQ5# GNT5# V(I/O) CLK4 GNT3# REQ4# GNT4# CLK2 CLK3 GNT2# REQ3# CLK1 REQ1# GNT1# REQ2# Backplane 15...
  • Page 20 [2 – P1] / [8 – P1] Peripheral Slot REQ64# ENUM# +3.3V AD[1] V(I/O) AD[0] ACK64# +3.3V AD[4] AD[3] AD[2] AD[7] +3.3V AD[6] AD[5] +3.3V AD[9] AD[8] M66EN C/BE[0]# AD[12] V(I/O) AD[11] AD[10] +3.3V AD[15] AD[14] AD[13] SERR# +3.3V C/BE[1]# +3.3V IPMB_SCL IPMB_SDA PERR#...
  • Page 21 CN1 / CN2 – ATX Power Connector Signal Signal +3.3V +3.3V +3.3V -12V PS_ON_L POWER GOOD 5V STB +12V JP7 – connector Pin # Signal Name +12V -12V Sense JP8 – connector Pin # Signal Name INH# JP9 – connector Pin # Signal Name PRST#...

  • Page 22: Cbp-3206[R] Backplane

    cBP-3206[R] Backplane The cBP-3206[R] is a 3U CompactPCI 32-bit backplane with optional rear I/O (designated by an “R” suffix). The cPCIS-1202[R] uses two of these backplanes. Specifications Standard CompactPCI height for 3U cPCI cards CompactPCI Compliancy PICMG 2.0 CompactPCI core specification R3.0 PICMG 2.1 CompactPCI hot swap R2.0 Dimensions: 100.7 x 128.7 mm PCI bus clock: up to 32-bit/33MHz...

  • Page 23: Mechanical Drawing

    Mechanical Drawing 6 - P2 1 - P2 6 - P1 1 - P1 cBP-3206[R] Front View JP8 - JP10 1 - P2 Opt. Rear I/O: 2 - P2 to 6 - P2 cBP-3206[R] Rear View Backplane 19...

  • Page 24: Pin Assignment

    Pin Assignment [1 – P1] System Slot REQ64# ENUM# +3.3V AD[1] V(I/O) AD[0] ACK64# +3.3V AD[4] AD[3] AD[2] AD[7] +3.3V AD[6] AD[5] +3.3V AD[9] AD[8] M66EN C/BE[0]# AD[12] V(I/O) AD[11] AD[10] +3.3V AD[15] AD[14] AD[13] SERR# +3.3V C/BE[1]# +3.3V IPMB_SCL IPMB_SDA PERR# DEVSEL# V(I/O)
  • Page 25 [1 – P2] System Slot CLK6 CLK5 PRST# REQ6# GNT6# DEG# FAL# REQ5# GNT5# V(I/O) CLK4 GNT3# REQ4# GNT4# CLK2 CLK3 GNT2# REQ3# CLK1 REQ1# GNT1# REQ2# Backplane 21...
  • Page 26 [2 – P1] – [6 – P1] Peripheral Slot REQ64# ENUM# +3.3V AD[1] V(I/O) AD[0] ACK64# +3.3V AD[4] AD[3] AD[2] AD[7] +3.3V AD[6] AD[5] +3.3V AD[9] AD[8] M66EN C/BE[0]# AD[12] V(I/O) AD[11] AD[10] +3.3V AD[15] AD[14] AD[13] SERR# +3.3V C/BE[1]# +3.3V IPMB_SCL IPMB_SDA PERR#...
  • Page 27 CN1 / CN2 – ATX Power Connector Signal Signal +3.3V +3.3V +3.3V -12V PS_ON_L POWER GOOD 5V STB +12V JP8 – connector Pin # Signal Name INH# -12V Sense JP9 – connector Pin # Signal Name PRST# JP10 – connector Pin # Signal Name FAL#...

  • Page 28: Cbp-3061 Power Backplane

    cBP-3061 Power Backplane The cBP-3061 is a PICMG 2.11 CompactPCI 3U 47-pin power backplane for one power module. It is used by the cPCIS-11011/cPCIS-1202[R]/cPCIS- ET1101/cPCIS-1202. Specifications CompactPCI Compliancy: PICMG 2.11 CompactPCI Power Interface Dimensions: 39.64x 128.7 mm Power Module Sockets: one AC/DC input screw terminal: yes DC output (ATX connector): one Cascading voltage Sense: Built-in ATX connector...

  • Page 29: Pin Assignment

    Pin Assignment CN1 – Power Sense Connector Pin # Signal Name V1_Sense GND_S V2_Sense V3_Sense CN2 – Power Sense Connector Pin # Signal Name V1_Sense GND_S V2_Sense V3_Sense CN3 – connector Pin # Signal Name INHJ Backplane 25...
  • Page 30 CN4 – Modular Power 47P Connector Signal Signal ACL/-DC IN ACN/+DC IN V1 SENSE CGND V1ADJ V3 SHARE IPMB_PWR +FAL# RESERVED V2 SHARE IPMB_SDA INH# RESERVED DEG# IPMB_SCL V3 SENSE V1 SHARE S RTN 13-18 V2 SENSE 5-12 V2ADJ CN5 – Current Share Connector Pin # Signal Name V1_Share...
  • Page 31 CN7 –AC/DC in Let Connector Pin # Signal Name ACN/DC+ ACL/DC- CGND CN8 – IPMB Connector Pin # Signal Name IPMB_SCL IPMB_SDA IPMB_PWR ALERT CN9 – ATX Power Connector Signal Signal +3.3V +3.3V +3.3V -12V PS_ON_L POWER GOOD 5V STB +12V Backplane 27...

  • Page 32: Cbp-3062A Power Backplane

    cBP-3062A Power Backplane The cBP-3062A is a PICMG 2.11 CompactPCI 3U 47-pin power backplane for two power modules. It is used by the cPCIS-1102[R]/cPCIS-ET1102. Specifications CompactPCI Compliancy: PICMG 2.11 CompactPCI Power Interface Dimensions: 80.28 x 128.7 mm Power Module Sockets: two AC/DC input screw terminal: yes DC output (ATX connector): two Cascading Current Sharing: yes...

  • Page 33: Pin Assignment

    Pin Assignment CN1 / CN2 – Modular Power 47P Connector Signal Signal ACL/-DC IN ACN/+DC IN V1 SENSE CGND V1ADJ V3 SHARE IPMB_PWR +FAL# RESERVED V2 SHARE IPMB_SDA INH# RESERVED DEG# IPMB_SCL V3 SENSE V1 SHARE S RTN 13-18 V2 SENSE 5-12 V2ADJ CN3 –AC/DC in Let Connector...
  • Page 34 CN5 – Power Sense Connector Pin # Signal Name V1_Sense GND_S V2_Sense V3_Sense CN6 –Connector Pin # Signal Name IPMB_SCL IPMB_DA IPMB_PWR ALERT CN7 – Current Share Connector Pin # Signal Name V1CS GND_S V2 CS V3 CS CN8 – Current Share Connector Pin # Signal Name V1 CS...
  • Page 35 CN9 / CN10 – ATX Power Connector Signal Signal +3.3V +3.3V +3.3V -12V PS_ON_L POWER GOOD 5V STB +12V JP1 – connector Pin # Signal Name INH#2 JP2 – connector Pin # Signal Name INH#1 JP3 – connector Pin # Signal Name DEG#1 FAL#1...
  • Page 36 This page intentionally left blank. Backplane...

  • Page 37: Power Supply Units

    Power Supply Units The cPCIS-1100 Series subsystems are equipped with either the Zippy Technology Corp. PS2 HG2-6400P industrial grade ATX power supply, ADLINK’s cPS-H325/AC CompactPCI power module or ADLINK’s cPS-P325/AC wide range temperature operating CompactPCI power module (see Section 1.3 Configurations).

  • Page 38: Input Characteristics

    Input Characteristics Voltage: 90 – 240 VAC Full Range Frequency : 47 ~ 63 HZ Input Current: 8.0 A ( RMS ) FOR 115 VAC 4.0 A ( RMS ) FOR 230 VAC Inrush Current: 65A MAX. FOR 115 VAC 125A MAX.

  • Page 39: Compactpci: Cps-H325/Ac

    CompactPCI: cPS-H325/AC Features 250W 3U x 8HP Eurocard package Meets IEC1000-3-2 harmonic correction Internal OR-ing diodes for N+1 redundancy Hot-swappable Third-wire current sharing EMI meets EN 55022 / FCC CLASS A CE marking compliance Fully compliant with PICMG Specifications Operating Temperature Range: 0 °C to 50°C Storage Temperature: -40 to +85 °C Temperature Coefficient: Typ.

  • Page 40: Output Characteristics

    Dielectric Withstand: Meets IEC950 regulation EMI: Meets EN55022 / FCC Class A Hold-up Time: 5mS after power fail signal Remote ON/OFF: Available at [INH#] & [EN#] pins Power Fail Signal: Available at [FAL#] pin Status LED: <Green> means valid input voltage; <Amber> means a critical fault.

  • Page 41: Compactpci Ett Psu: Cps-P325/Ac

    CompactPCI ETT PSU: cPS-P325/AC Features 250W 3U x 8HP Eurocard package Meets EN 61000-3-2 active power factor correction Internal OR-ing diodes for N+1 redundancy Hot-swappable Active current sharing EMI meets EN 55022 / FCC CLASS A CE marking compliance Fully compliant with PICMG Specifications Operating Temperature Range: -25°C to +50°C Storage Temperature: -40 to +85 °C...

  • Page 42: Output Characteristics

    Power Fail Signal: available at [FAL#] pin Status LED: <green> means valid input voltage; <amber> means a critical fault. Thermal Protection (OTP): Installed NTC and thermostat for thermal sensor at [DEG#] pin Power OK: Installed at all outputs Leakage Current: 1.18mA at 254Vac/60Hz Output Characteristics Output Current (A) Output...
  • Page 43 Over Current Protection: Installed at each rail. Overload Protection: Fully protected against output overload or short circuit. Typical 120% max. load. Output power versus temperature T at V i nom Power Supply Unit 39...
  • Page 44 This page intentionally left blank. Power Supply Unit...

  • Page 45: Specifications

    Specifications Features Standard 19” Rack-mount 3U CompactPCI form factor (3U height). Board Space: Supports both front and rear access for I/O, CPU, and power supply. Standard 3U, 21-slot width chassis. Suitable for rack-mount. Comprehensive EMC shielding [EMC gaskets are installed on front rails (top and bottom), rear rails, and side panels].

  • Page 46: Environmental

    Environmental Operating Temperature: 1. cPS-H325/AC: 0°C ~ +50°C ; 2. cPS-P325/AC: -25°C ~ +50°C (Up to 70°C but will have derating issue when above 50°C. Power efficiency will be derating 2.5% every Celsius degree and it will only have 50% of power efficiency when 70°C.) Storage Temperature: -40°C to +85°C.

  • Page 47: Important Safety Instructions

    Important Safety Instructions Read and follow all instructions marked on the product and in the documentation before you operate your system. Retain all safety and operating instructions for future use. Please read these safety instructions carefully. Please keep this User‘s Manual for later reference. The equipment can be operated at an ambient temperature of 50ºC.
  • Page 48 If one of the following situations arises, get the equipment checked by a service personnel: The power cord or plug is damaged. Liquid has penetrated into the equipment. The equipment has been exposed to moisture. The equipment has not work well or you can not get it work according to user‘s manual.
