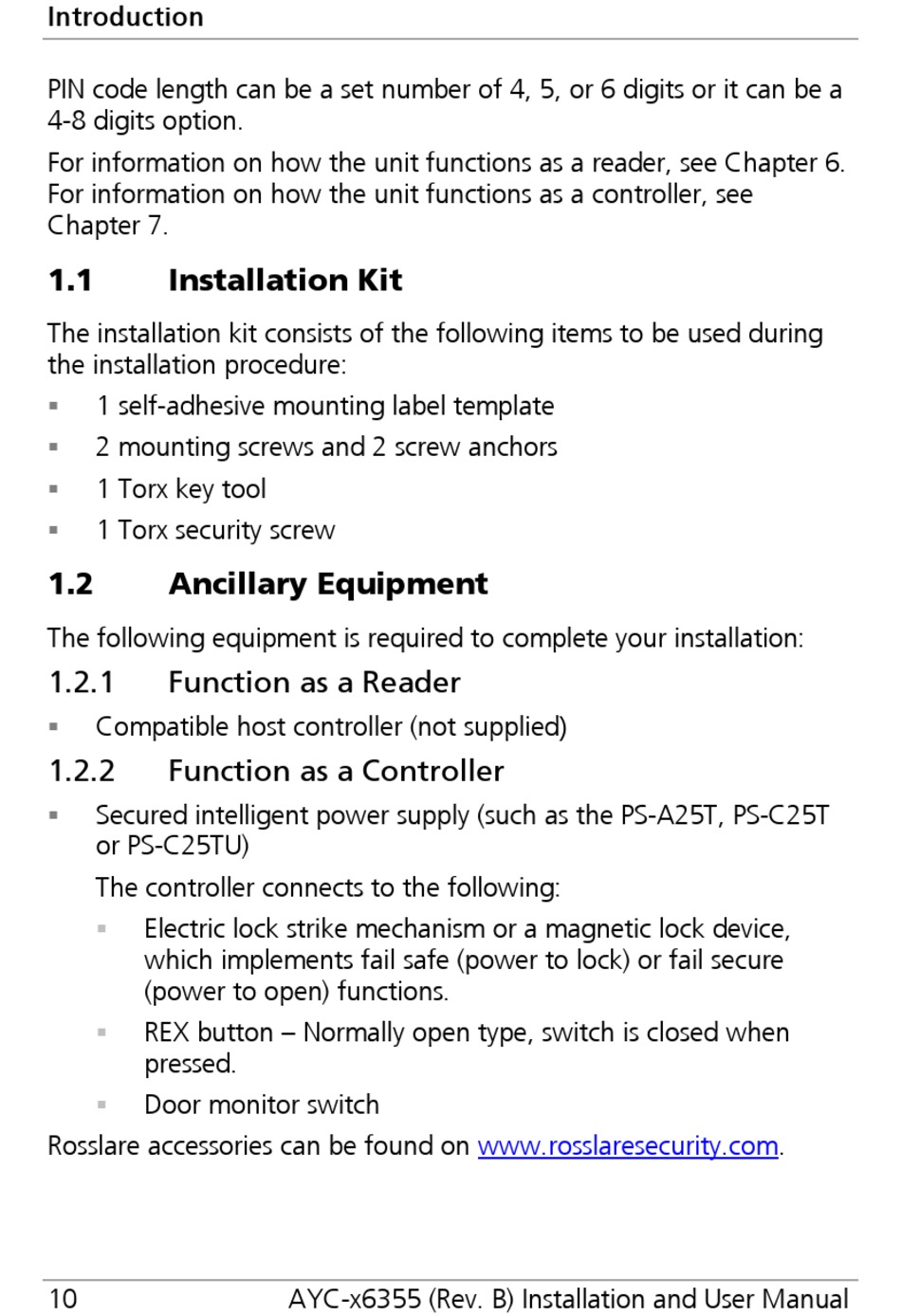

Introduction
PIN code length can be a set number of 4, 5, or 6 digits or it can be a
4-8 digits option.
For information on how the unit functions as a reader, see Chapter 6.
For information on how the unit functions as a controller, see
Chapter 7.
1.1

Installation Kit

The installation kit consists of the following items to be used during
the installation procedure:
 1 self-adhesive mounting label template
 2 mounting screws and 2 screw anchors
 1 Torx key tool
1 Torx security screw

1.2

Ancillary Equipment

The following equipment is required to complete your installation:
1.2.1

Function as a Reader

Compatible host controller (not supplied)

1.2.2

Function as a Controller

Secured intelligent power supply (such as the PS-A25T, PS-C25T

or PS-C25TU)
The controller connects to the following:
Electric lock strike mechanism or a magnetic lock device,

which implements fail safe (power to lock) or fail secure
(power to open) functions.
 REX button – Normally open type, switch is closed when
pressed.
Door monitor switch

Rosslare accessories can be found on www.rosslaresecurity.com.
10 AYC-x6355 (Rev. B) Installation and User Manual
