Installation

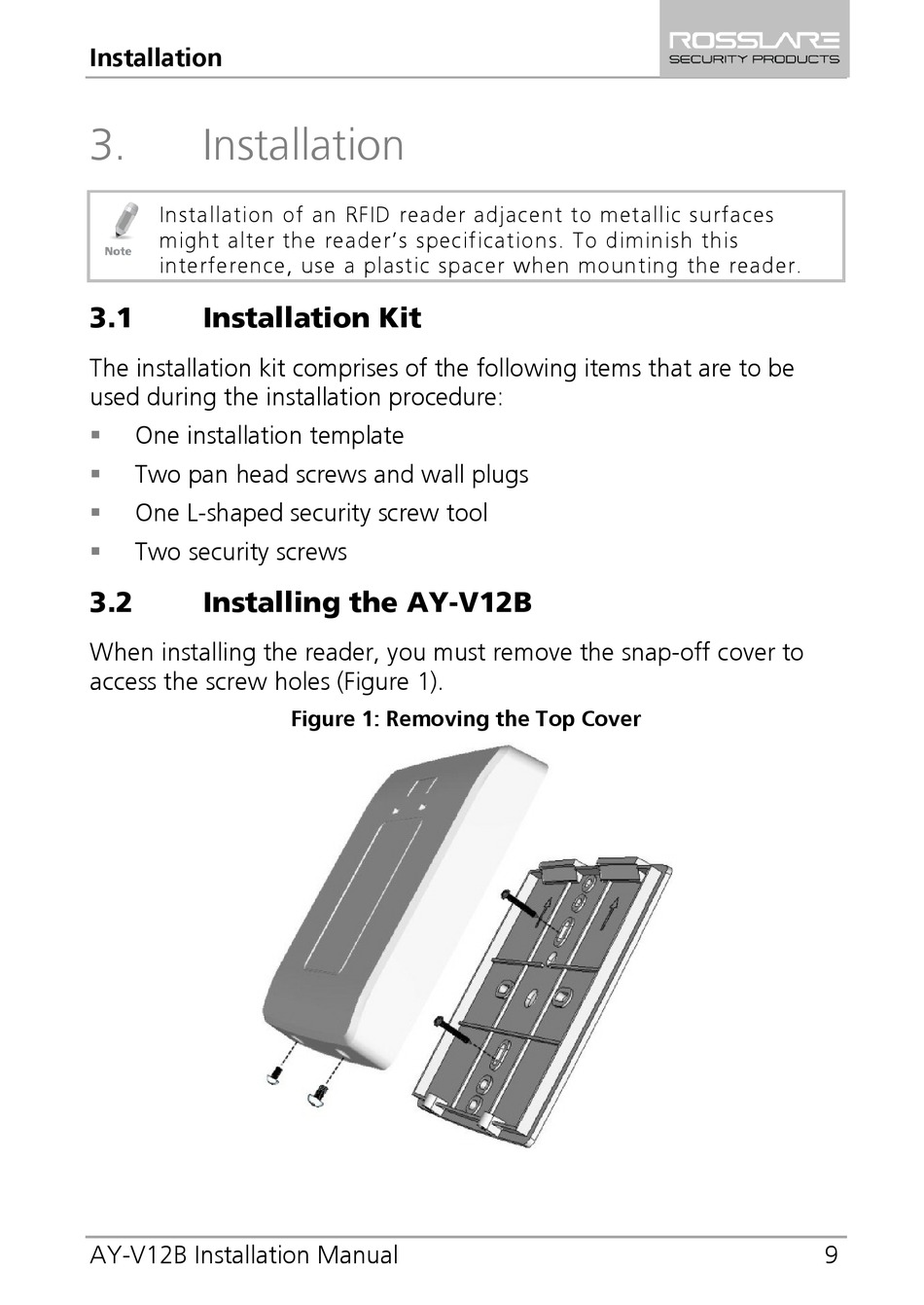

3. Installation
Installation of an RFID reader adjacent to metallic surfaces
might alter the reader's specifications. To diminish this
interference, use a plastic spacer when mounting the reader.
3.1

Installation Kit

The installation kit comprises of the following items that are to be
used during the installation procedure:
One installation template

 Two pan head screws and wall plugs
 One L-shaped security screw tool
Two security screws

3.2

Installing the AY-V12B

When installing the reader, you must remove the snap-off cover to
access the screw holes (Figure 1).
AY-V12B Installation Manual
Figure 1: Removing the Top Cover
