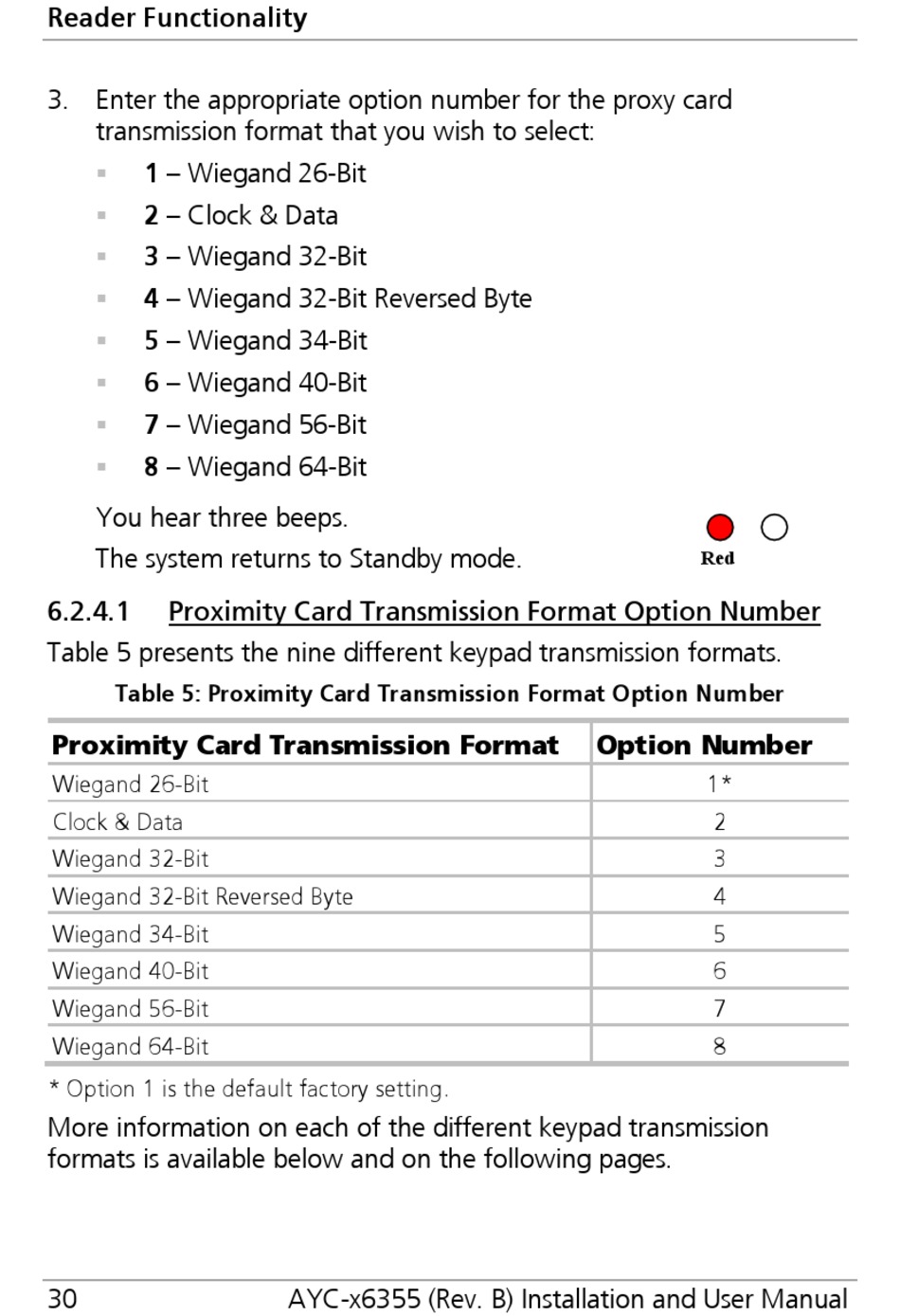

Reader Functionality
3. Enter the appropriate option number for the proxy card
transmission format that you wish to select:
1 – Wiegand 26-Bit

2 – Clock & Data

3 – Wiegand 32-Bit

4 – Wiegand 32-Bit Reversed Byte

5 – Wiegand 34-Bit

6 – Wiegand 40-Bit

7 – Wiegand 56-Bit

8 – Wiegand 64-Bit

You hear three beeps.
The system returns to Standby mode.
6.2.4.1 Proximity Card Transmission Format Option Number
Table 5 presents the nine different keypad transmission formats.

Table 5: Proximity Card Transmission Format Option Number

Proximity Card Transmission Format
Wiegand 26-Bit
Clock & Data
Wiegand 32-Bit
Wiegand 32-Bit Reversed Byte
Wiegand 34-Bit
Wiegand 40-Bit
Wiegand 56-Bit
Wiegand 64-Bit
* Option 1 is the default factory setting.
More information on each of the different keypad transmission
formats is available below and on the following pages.
30 AYC-x6355 (Rev. B) Installation and User Manual
Red
Option Number
1*
2
3
4
5
6
7
8
