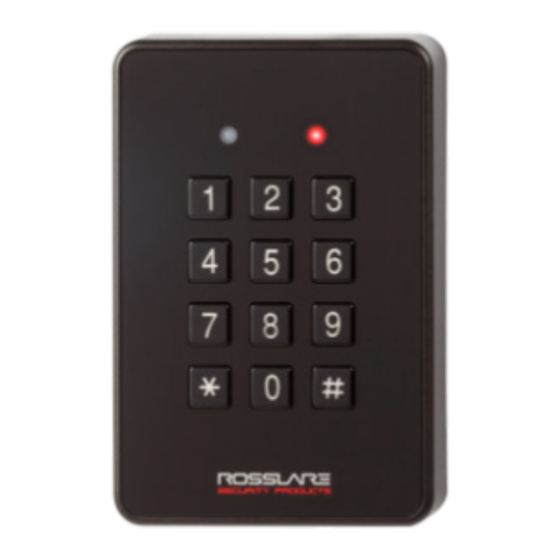

- Page 1 AYC-x6355 Series CSN SELECT™ Smart Card Readers/Controllers (Rev. B) Installation and User Manual Models: AYC-H6355 AYC-M6355 AYC-Q6355 AYC-H6355 AYC-M6355 AYC-Q6355...
- Page 2 ROSSLARE. ROSSLARE reserves the right to revise and change this document at any time, without being obliged to announce such revisions or changes beforehand or after the fact.
-
Page 3: Table Of Contents
Table of Contents Table of Contents Introduction ..............9 Installation Kit ............... 10 Ancillary Equipment .............. 10 1.2.1 Function as a Reader ..............10 1.2.2 Function as a Controller ..............10 Technical Specifications ..........11 Mounting ..............13 Wiring Instructions ........... 15 Wiring the Unit as a Reader ........... - Page 4 Table of Contents Controller Functionality..........37 Normal, Secure, and Master Users .......... 37 Modes of Operation .............. 38 7.2.1 Normal Mode ................38 7.2.2 Bypass Mode ................38 7.2.3 Secure Mode ................39 7.2.4 Changing the Modes of Operation ..........39 Auxiliary Input and Output.............
- Page 5 Table of Contents 7.9.14 Enrolling Primary and Secondary Codes ........56 7.9.15 Deleting Primary and Secondary Codes ......... 60 7.9.16 Relay Codes Assignment ............... 62 7.9.17 Relay Code Assignment using Standard Method ......63 7.9.18 Relay Code Assignment using Search Method ......64 7.9.19 PIN Code Length/Factory Default Settings ........
- Page 6 List of Figures List of Figures Figure 1: Removing the Top Cover ..............13 Figure 2: Controller Application Wiring Diagram ..........17 Figure 3: Auxiliary Output Connection with Internal Power ......18 Figure 4: Auxiliary Output Connection with External Power......18 Figure 5: DIP Switch Compartment ..............
- Page 7 List of Tables List of Tables Table 1: Wiring the Unit as a Reader to a Control Panel ........15 Table 2: Wiring the Unit as a Controller............16 Table 3: Reader Programming Menus .............. 22 Table 4: Keypad Transmission Format Option Number ........25 Table 5: Proximity Card Transmission Format Option Number ......
- Page 8 ROSSLARE exclusive warranty and liability is limited to the warranty and liability statement provided in an appendix at the end of this document.
-
Page 9: Introduction
If the unit is connected to a standard access control unit, then it functions as a reader. If the unit is connected to Rosslare's secured intelligent power supply such as the PS-A25T, PS-C25T or PS-C25TU, it functions as a secured controller. -
Page 10: Installation Kit
(power to lock) or fail secure (power to open) functions. REX button – Normally open type, switch is closed when pressed. Door monitor switch Rosslare accessories can be found on www.rosslaresecurity.com. AYC-x6355 (Rev. B) Installation and User Manual... -
Page 11: Technical Specifications
Outdoor Usage Weather-resistant, UV-resistant, epoxy-potted, suitable for indoor and outdoor use * Measured using a Rosslare MIFARE Classic EV1 (ISO card). Read range with other credential technologies may vary. Range also depends on electrical environment and proximity to metal. AYC-x6355 (Rev. B) Installation and User Manual... - Page 12 Technical Specifications Physical Characteristics Dimensions AYC-H6355: 110.7 × 75.0 × 18.2 mm (4.4 x 3.0 x 0.7 in.) (H x W x D) AYC-M6355: 89.5 × 88.9 × 18.3 mm (3.5 x 3.5 x 0.7 in.) AYC-Q6355: 120.0 × 76.0 × 21.5 mm (4.7 x 3.0 x 0.9 in.) Weight AYC-H6355: 185 g (6.5 oz)
-
Page 13: Mounting
Mounting Mounting Before mounting, you should determine the best location for the reader. To mount the units: 1. Peel off the back of the self-adhesive mounting label template and place it at the required mounting location. 2. Using the template as a guide, drill two holes (sizes indicated on the template) used for mounting the back plate onto the surface. - Page 14 Mounting 7. Align the two holes of the reader with those drilled in the wall and firmly attach the reader to the wall with two screws, whose size is indicated on the template. 8. Relocate the front cover onto the reader. The reader can also be mounted using strong epoxy glue.
-
Page 15: Wiring Instructions
Wiring Instructions Wiring Instructions An AYC-x6355 unit is supplied with a 10-conductor 56-cm (22-in.) pigtail with exposed wires coated with solder. Wiring the Unit as a Reader If you connect the unit to a standard access control unit, it automatically functions as a reader. To connect the unit as a reader to an access control unit: 1. -
Page 16: Wiring The Unit As A Controller
This configuration is best for shielding the reader cable from external interference. Wiring the Unit as a Controller If you connect the unit to a Rosslare PS-x25T secured power supply, it automatically functions as a controller. To connect the unit as a controller: 1. -
Page 17: Figure 2: Controller Application Wiring Diagram
Wiring Instructions To connect the unit to the desired power supply option, refer to the following wiring diagrams. Figure 2 shows the wiring for the controller application using a dual relay secured intelligent power supply. Figure 2: Controller Application Wiring Diagram This wiring diagram is for reference only. -
Page 18: Figure 3: Auxiliary Output Connection With Internal Power
Wiring Instructions Figure 3 shows the auxiliary output connection using the internal power. Figure 3: Auxiliary Output Connection with Internal Power Figure 4 shows the auxiliary output connection using external power. Figure 4: Auxiliary Output Connection with External Power AYC-x6355 (Rev. B) Installation and User Manual... -
Page 19: Osdp Operation
OSDP Operation OSDP Operation • In OSDP mode, all control lines (Inputs/Outputs) are disabled. • In OSDP mode, if a connection is not established or lost with the controller, the LED flashes orange continuously. CSN SELECT readers that support OSDP operation are compatible with all reader-related OSDP commands. -
Page 20: Figure 6: Dip Switch Settings
OSDP Operation Figure 6 shows the DIP switch settings, which are also described below. Figure 6: DIP Switch Settings DIP Switch 1 This switch is used to select the reader output (Wiegand or OSDP): Off = Wiegand On = OSDP ... -
Page 21: Reader Functionality
Upon power on, the unit flashes red, then green, and then orange, each for 1 second and a beep is heard for each color. The unit searches for the presence of Rosslare's secured intelligent power supply. If a secured intelligent power supply is not detected, the unit is automatically configured as a reader. -
Page 22: Table 3: Reader Programming Menus
Table 3: Reader Programming Menus Menu Description Default Selecting Keypad Transmission Format Single Key, 6-Bit Wiegand (Rosslare Format) Single Key, 6-Bit Wiegand with Nibble + Parity Bits Single Key, 8-Bit Wiegand, Nibbles Complemented 4 Keys Binary + Facility Code, Wiegand 26-Bit... -
Page 23: Entering Programming Mode
Reader Functionality 6.2.1 Entering Programming Mode To reach the Programming Menu System, the unit must first be placed into Programming mode. • The factory 4-digit Programming code is 1234. • If a Programming code is not entered within 20 seconds, the unit returns to Standby mode. -
Page 24: Selecting Keypad Transmission Format
Reader Functionality 6.2.3 Selecting Keypad Transmission Format The AYC-x6355 has nine different keypad transmission formats. See Table 4 in Section 6.2.3.1 for more information on keypad transmission formats. • Only one keypad transmission format can be active at any one time. -
Page 25: Table 4: Keypad Transmission Format Option Number
More information on each of the different keypad transmission formats is available below and on the following pages. Option 1: Single Key, Wiegand 6-Bit (Rosslare Format) Each key press immediately sends 4 bits with 2 parity bits added – even parity for the first 3 bits and odd parity for the last 3 bits. - Page 26 Reader Functionality Option 2: Single Key, Wiegand 6-Bit Nibble and Parities Each key press immediately sends 4 bits with 2 parity bits added – even parity for the first 3 bits and odd parity for the last 3 bits. 0 = 0 0000 1 6 = 1 0110 0 1 = 0 0001 0 7 = 1 0111 1...
- Page 27 Reader Functionality If the entry of the 4-digit keypad PIN code is disrupted and no number key is pressed within 5 seconds, the keypad clears the PIN code entry buffer, generates a beep and is ready to receive a new 4-digit keypad PIN code.
- Page 28 Reader Functionality (EP) FFFF FFFF AAAA AAAA AAAA AAAA (OP) Where: EP = Even parity for first 12 bits OP = Odd parity for last 12 bits F = 8-bit Facility code A = 16-bit code generated from keypad Option 6: 6 Keys BCD and Parity Bits, Wiegand 26-Bit Option 6 sends buffer of 6 keys, adds parity and sends a 26-Bit Binary BCD message.
-
Page 29: Selecting Proximity Card Transmission Format
Reader Functionality the PIN code. The data is sent across the two data output lines as binary data in Clock & Data format. If * or # key is pressed during PIN code entry, the keypad clears the PIN code entry buffer, generates a beep, and is ready to receive a new keypad PIN code. -
Page 30: Table 5: Proximity Card Transmission Format Option Number
Reader Functionality 3. Enter the appropriate option number for the proxy card transmission format that you wish to select: 1 – Wiegand 26-Bit 2 – Clock & Data 3 – Wiegand 32-Bit 4 – Wiegand 32-Bit Reversed Byte ... - Page 31 Reader Functionality Option 1: Wiegand 26-Bit In this mode, 3 LSB bytes from the card serial number (UID) are transmitted in Wiegand 26-Bit format. Two parity bits are added. An even parity bit is sent first, followed by three bytes of card data, and by an odd parity bit.
- Page 32 Reader Functionality Where: D = 1 (LSB) byte of card serial number C = 2 byte of card serial number B = 3 byte of card serial number A = 4 (MSB) byte of card serial number Option 5: Wiegand 34-Bit In this mode, 4 LSB bytes of card serial number are transmitted in Wiegand 34-Bit format.
-
Page 33: Changing The Programming Code
Reader Functionality Option 7: Wiegand 56-Bit In this mode, 7 bytes of card serial number are transmitted in Wiegand 56-Bit format. No parity bits are added. AAAA AAAA BBBBBBBB CCCCCCCC DDDDDDDD EEEEEEEE FFFFFFFF GGGGGGGG Option 8: Wiegand 64-Bit In this mode, 8 bytes of card serial number are transmitted in Wiegand 64-Bit format. -
Page 34: Changing The Facility Code
Reader Functionality 6.2.6 Changing the Facility Code • The Facility code can be in the range of 000 to 255. • The default Facility code is 0. 1. Enter Programming mode. Green 2. Press 4 to enter Menu 4. The left LED turns red. Red Green 3. -
Page 35: Setting The Backlight Behavior
Reader Functionality You hear three beeps. The system returns to Standby mode. 6.2.8 Setting the Backlight Behavior To set the backlight behavior: 1. Enter Programming mode. Green 2. Press 6 to enter Menu 6. The Transmit LED turns red. Red Green 3. -
Page 36: Replacing A Lost Programming Code
Reader Functionality If the Programming code is valid, all memory is erased. You hear three beeps and the reader returns to Standby mode. If the Programming code is invalid, you hear a long beep and the reader returns to Standby mode without erasing the memory of the reader. -
Page 37: Controller Functionality
Upon power on or reset, the unit flashes red, then green, and then orange, each for 1 second and a beep is heard for each color. The unit searches for the presence of Rosslare's secured intelligent power supply. If a secured intelligent power supply is detected, the buzzer emits 2 short beeps and the unit is automatically configured as a secure access control unit. -
Page 38: Modes Of Operation
Controller Functionality Secure A Secure user must have a Primary and Secondary code programmed; the two codes cannot be the same. The Secure user can gain access when the unit is in any of its three modes of operation. In Normal mode, the Secure user must use the Primary code to gain entry. -
Page 39: Secure Mode
Controller Functionality 7.2.3 Secure Mode The left LED is red. Only Secure and Master users can access the premises during the Secured mode. A Secure user must enter the Primary and Secondary codes to gain entry. After entering their Primary code, the Door LED flashes green for 10 seconds, during which the Secondary code must be entered. -
Page 40: Auxiliary Input And Output
Controller Functionality 7.2.4.3 Changing from Normal Mode to Bypass Mode See Section 7.9.7 to create/modify the Normal/Bypass code. To change from Normal to By pass mode: 1. Enter the Normal/Secure code. Green The left LED flashes orange. Orange 2. Press # to confirm the mode change. The left LED stops flashing. -
Page 41: Internal Case And Back Tamper
R EX Function 1 9 B The REX button is connected to Rosslare’s secured intelligent power supply. The REX button must be located inside the premises to be secured and is used to open the door without the use of a code. It is usually located in a convenient location, such as inside the door or at a receptionist's desk. -
Page 42: Secured Intelligent Power Supply
Controller Functionality Secured Intelligent Power Supply Rosslare’s secured intelligent power supplies are designed for use with Rosslare's secured standalone access control units, including the AYC-x6355 series. The AYC-x6355 units are designed to operate indoors and are installed within the secured premises. The units must be used with one of Rosslare’s secured intelligent power supplies,... -
Page 43: Table 6: Controller Programming Menu
Controller Functionality Table 6 shows the names of all controller menus. It also shows of all the default factory codes and settings for the units. Table 6: Controller Programming Menu Menu Menu Description Default 4–8 digits digits digits digits Changing Lock Strike Code 2580 25802 258025 25802580... -
Page 44: Entering Programming Mode
Controller Functionality 7.9.1 Entering Programming Mode • The unit must be in Normal mode to enter the Programming mode. • The factory four digit Programming Code is 1234. • If a Programming Code is not entered within five seconds, the unit returns to Normal mode. -
Page 45: Changing Lock Strike Code
Controller Functionality 7.9.3 Changing Lock Strike Code The Lock Strike code is mainly used as a method to quickly test the Lock Strike Relay during installation. When the first user is added to the controller, the default Lock Strike code is automatically deleted. Once the code is programmed again, it is not deleted with the entry of additional user codes. -
Page 46: Changing Auxiliary Code
Controller Functionality 7.9.4 Changing Auxiliary Code The Auxiliary code is mainly used as a method to quickly test the Auxiliary Relay during installation. When the first user is added to the controller, the default Auxiliary code is automatically deleted. Once the code is programmed again, it is not deleted with the entry of additional user codes. -
Page 47: Changing The Programming Code
Controller Functionality 7.9.5 Changing the Programming Code • Programming code cannot be erased, meaning the code 0000 is not valid and does not erase the Programming code. • The factory four-digit programming code is 1234. To change the Programming code: 1. -
Page 48: Changing The Normal/Bypass Code And Door Chime Settings
Controller Functionality 7.9.7 Changing the Normal/Bypass Code and Door Chime Settings To change the Normal/By pass code and door chime settings: 1. Enter Programming mode. Green 2. Press 5 to enter Menu 5. The left LED flashes orange. Orange Green 3. -
Page 49: Setting Fail Safe/Secure Operation, Tamper Siren And Lock Strike Release Time
Controller Functionality 7.9.8 Setting Fail Safe/Secure Operation, Tamper Siren and Lock Strike Release Time • The default value is 0004, which corresponds to Fail Secure operation, no siren, and 4-seconds Lock Strike release time. • When the siren is sounding, entering a valid Lock Strike code deactivates the siren until the next siren event. -
Page 50: Defining The Auxiliary Input And Output
Controller Functionality 7.9.9 Defining the Auxiliary Input and Output The default setting for the auxiliary input and output is 2004. To define the aux iliary input and output: 1. Enter Programming mode. Green 2. Press 6 to enter Menu 6. The left LED flashes green. -
Page 51: Table 7: Quick Reference Guide For Auxiliary Mode Setting
Controller Functionality Table 7: Quick Reference Guide for Auxiliary Mode Setting Aux. Aux. Input Aux. Output Aux. Aux. Settings Mode Function Activated by Relay (in seconds) AUX REX Valid code or AUX N.O. 01 to 99 Aux. relay release time Normal/Secure Valid code N.O. - Page 52 Controller Functionality The auxiliary setting defines the door open time for the second door. The auxiliary input can switch the mode of operation of the controller between Normal and Secure modes. By connecting a switch timer or alarm system output to the auxiliary input, the controller can be automatically switched from Normal mode (during office hours) to Secure mode (after office hours).
- Page 53 Controller Functionality 7.9.9.5 Auxiliary Mode 6 Auxiliary input function: Door Monitor Auxiliary output activated by: Forced entry For example, in Auxiliary Mode 6, the controller can trigger the auxiliary relay if the door has been forced. If the siren settings are enabled, the siren is activated.
-
Page 54: Setting The Lockout Feature
Controller Functionality 7.9.10 Setting the Lockout Feature If the controller is presented with wrong codes several times consecutively, the unit goes into Lockout mode. When a lockout occurs, the controller keypad and reader are locked so no codes can be entered until the set lockout period expires. During Lockout, the left LED is Off, the right LED flashes red, and the controller beeps every two seconds. -
Page 55: Setting The Backlight Behavior
Controller Functionality 7.9.11 Setting the Backlight Behavior The controller allows you to define the way the unit’s backlight works. To set the backlight behavior: 1. Enter Programming mode. Green 2. Press 6 to enter Menu 6. The left LED flashes green. Green Green 3. -
Page 56: Selecting Credential Technology
Controller Functionality 7.9.13 Selecting Credential Technology To select the credential technology : 1. Enter Programming mode. Green 2. Press 6 to enter Menu 6. The Mode LED flashes green. Green Green 3. Enter one of the following codes: 6000 – All formats (default) ... - Page 57 Controller Functionality 7.9.14.2 Secondary Codes Secondary codes can only be enrolled to a user slot that already has a Primary code enrolled but has no Secondary code. Secondary codes do not have to be unique, meaning multiple users can all hold the same Secondary code. ...
- Page 58 Controller Functionality 7.9.14.4 Enrolling Primary and Secondary Codes using Standard Method To enroll primary and secondary codes using the Standard method: 1. Enter Programming mode. Green 2. Press 7 to enter Menu 7. The right LED turns orange. Orange 3. Enter the 3-digit user slot number between 001 and 500 that you wish to enroll a Primary or Secondary code to.
- Page 59 Controller Functionality If the PIN or user card presented is valid, the left LED stops flashing and the controller is ready for you to enter the next 3-digit slot number (refer to Step 3) for the slot to which you want to assign a code.
-
Page 60: Deleting Primary And Secondary Codes
Controller Functionality The left LED flashes red. Red Orange If the Primary code entered is not valid, you hear a long beep and the unit continues to wait for a valid Primary code. 5. Perform one of the following: Enter the 4- to 8-digit code to be used as ... - Page 61 Controller Functionality The left LED turns red and the right LED turns orange. Orange 3. Enter the 3-digit User Slot code you wish to delete. The left LED flashes red indicating the controller is waiting for the Programming code to confirm the deletion. Red Orange If the user slot is empty, you hear a long beep and the unit returns to Normal mode.
-
Page 62: Relay Codes Assignment
Controller Functionality The right LED flashes orange. Red Orange The controller is now waiting for the Primary code of the user you want to delete. 4. Perform one of the following: Enter the 4- to 8-digit PIN code of the ... -
Page 63: Relay Code Assignment Using Standard Method
Controller Functionality 7.9.17 Relay Code Assignment using Standard Method To assign relay code using the Standard method: 1. Enter Programming mode. Green 2. Press 9 to enter Menu 9. The left LED turns green and the right LED turns orange. Green Orange 3. -
Page 64: Relay Code Assignment Using Search Method
Controller Functionality 7.9.18 Relay Code Assignment using Search Method To assign relay code using the Search method: 1. Enter Programming mode. Green 2. Press 9 to enter Menu 9. The left LED turns green and the right LED turns orange. Green Orange 3. -
Page 65: Pin Code Length/Factory Default Settings
Controller Functionality 7.9.19 PIN Code Length/Factory Default Settings You must be very careful before using this command! Changing the PIN code length also erases the entire memory contents, including all user and special codes, and return all codes to their factory default settings. To change the PIN code length: 1. -
Page 66: Replacing A Lost Programming Code
Controller Functionality 7.9.20 Replacing a Lost Programming Code The unit must be in Normal mode; otherwise, this does not work. Make sure that the left LED is green before proceeding. To replace a lost Programming code: 1. Remove power from the power supply unit. 2. -
Page 67: Declaration Of Conformity
Declaration of Conformity Declaration of Conformity This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. -
Page 68: Limited Warranty
The full ROSSLARE Limited Warranty Statement is available in the Quick Links section on the ROSSLARE website at www.rosslaresecurity.com. Rosslare considers any use of this product as agreement to the Warranty Terms even if you do not review them. AYC-x6355 (Rev. B) Installation and User Manual... - Page 69 Tel: +86-755-8610 6842 Fax: +86-755-8610 6101 Rosslare Security Products, Inc. support.cn@rosslaresecurity.com Southlake, TX, USA India Toll Free: +1-866-632-1101 Local: +1-817-305-0006 Rosslare Electronics India Pvt Ltd. Fax: +1-817-305-0069 Tel/Fax: +91-20-40147830 support.na@rosslaresecurity.com Mobile: +91-9975768824 Europe sales.in@rosslaresecurity.com Rosslare Israel Ltd. 22 Ha'Melacha St., P.O.B. 11407...
