AY-U9xxBT
UHF SMART™ Long-Range
Reader
Installation & User Guide
1. Introduction

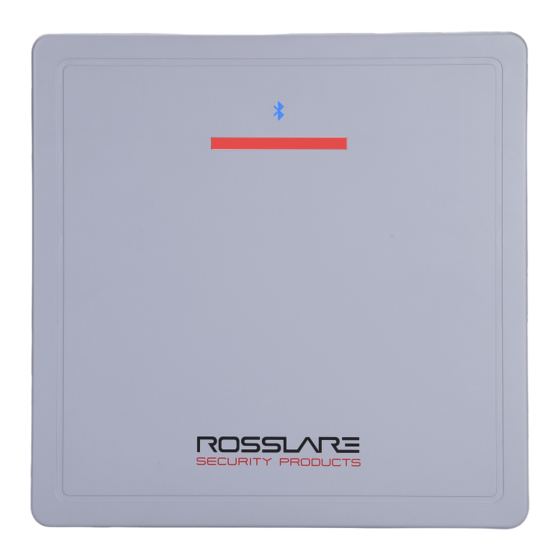

The AY-U9xxBT series of UHF and Bluetooth readers are available with versions in both UHF frequencies (865-868
and 902-928 MHz) and support Bluetooth BLE frequencies and protocols.
The Rosslare BLE-ID™ app and the Rosslare BLE-Admin™ app for iOS and Android smartphones can be used with the
readers for programming operational settings.
The readers are waterproof (IP67) and vandal resistant (IK10). They are suitable for use in a wide range of RFID
applications, such as transport management, vehicle management, car parking, production process control, and
access control.
The readers support the following functions:
•
Reading UHF credentials
•
Reading BLE soft credentials
•
Transmitting credential ID to the controller
•
Acting based on controller's input (allowing access or not)
•
Reconfiguration provided by credential (soft or hard) or by PC SW
The AY-U9xxBT series includes the following models:
•
AY-U9xxBT-US: 902–928 MHz (America)
•
AY-U9xxBT-EU: 865–868 MHz (Europe)
1.1. Installation Kit
The installation kit consists of the following items to be used during the installation procedure.
Description
AY-U9xxBT reader with a 5 m (16.4 ft) 10-wire cable
100–240 VAC switching power supply: 15 VDC @ 4 A
installation bracket kit
Installation and user guide
www.rosslaresecurity.com
1
Quantity
1
1
1
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rosslare UHF SMART AY-U9 BT Series
Summary of Contents for Rosslare UHF SMART AY-U9 BT Series
- Page 1 The AY-U9xxBT series of UHF and Bluetooth readers are available with versions in both UHF frequencies (865-868 and 902-928 MHz) and support Bluetooth BLE frequencies and protocols. The Rosslare BLE-ID™ app and the Rosslare BLE-Admin™ app for iOS and Android smartphones can be used with the readers for programming operational settings.
- Page 2 AY-U9xxBT Installation & User Guide 2. Mounting All RFID readers can be affected by Radio Frequency Interference (RFI). For optimal read range, RFID readers should be installed away from areas with RFI. Installing an RFID reader adjacent to metallic surfaces might alter the reader’s specifications. To diminish this interference, use a plastic spacer when mounting the reader.
- Page 3 AY-U9xxBT Installation & User Guide Figure 3: Antenna Angle Side View Figure 4: Antenna Angle Top View www.rosslaresecurity.com...
- Page 4 AY-U9xxBT Installation & User Guide 3. Wiring The units are supplied with a 5 m (16.4 ft) 10-conductor pigtail with exposed wires coated with solder (see Figure 5: Wiring Colors). Figure 5: Wiring Colors To connect the unit as a reader to an access control unit: 1.
- Page 5 AY-U9xxBT Installation & User Guide 4. Trim and insulate the ends of all unused conductors individually. Do not short any unused wires together. • The individual wires from the reader are color coded according to the Wiegand standard. • When using a separate power supply for the reader, this supply and that of the controller must have a common ground.
- Page 6 AY-U9xxBT Installation & User Guide 3. Enter the password. • Use the default password (12345678) when you log in to the BLE-Admin application for the first time. • It is highly recommended that you change the password (see step 4). 4.
- Page 7 AY-U9xxBT Installation & User Guide Parameter Options Remarks Wiegand: 26-bit (default), 32, 34, 40, 56, 64, 96, 128-bit, Wiegand Reverse: On/Off (default) Host-controlled: On (default)/Off • On - the LED and buzzer operate as specified in the OSDP commands received from the controller Protocol •...
-
Page 8: Configuration Options
AY-U9xxBT Installation & User Guide The BLE-ID™ application allows a mobile device to be used as a credential. Download the application from Google Play or App Store using the following: 5.1. Configuration Options Tap the menu icon located at the top-right of the screen to do the following functions. Option Remarks Reset... -
Page 9: Technical Specifications
Dual polarization read mode • EPC GEN2 (ISO18000-6C) tags Cards and Tags • BLE-ID soft credentials * Measured using a Rosslare proximity card or equivalent. ** For future use Environmental Characteristics Vandal Resistance IK10 Operating Temp. Range -35°C to 60°C (-31°F to 140°F) -
Page 10: Declaration Of Conformity
AY-U9xxBT Installation & User Guide 8. Declaration of Conformity FCC ID = GCD-AYU9XXBT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference. • This device must accept any interference received, including interference that may cause undesired operation. -
Page 11: Radio Equipment Directive (Red)
All technical specifications weights, measures and colors shown, are best approximations. Rosslare can not be held responsible and assumes no legal liability for the accuracy or completeness of the information provided. Rosslare reserves the right to change, delete, or otherwise modify the information, which is represented, at any time, without any prior notice.
