Wiring Instructions

To connect the unit to the desired power supply option, refer to the

following wiring diagrams.

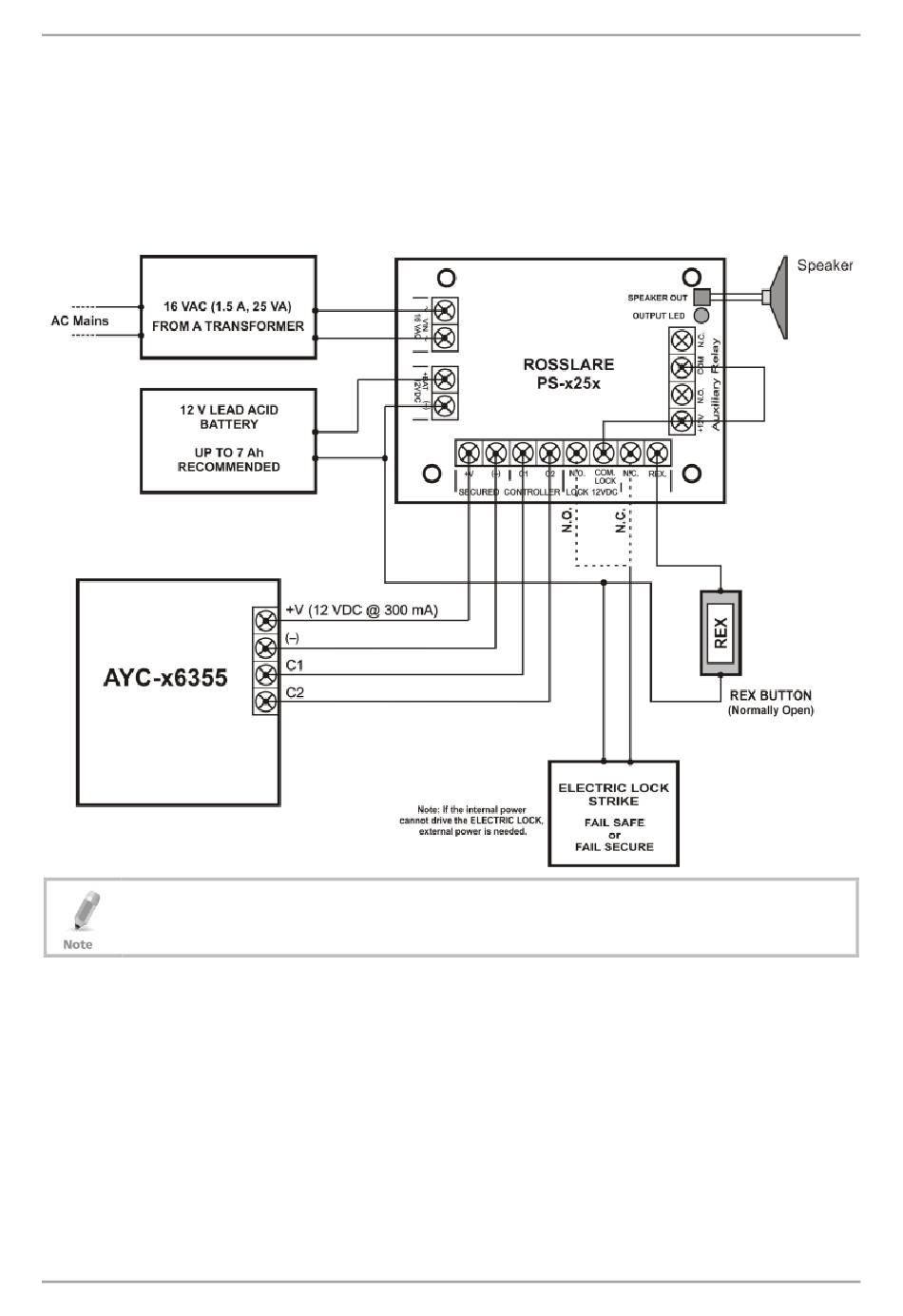

Figure 2 shows the wiring for the controller application using a dual

relay secured intelligent power supply.

Figure 2: Controller Application Wiring Diagram

This wiring diagram is for reference only. Please wire according

to actual PS-x25T samples.

AYC-x6355 (Rev. B) Installation and User Manual
