Controller Functionality
7.9.17

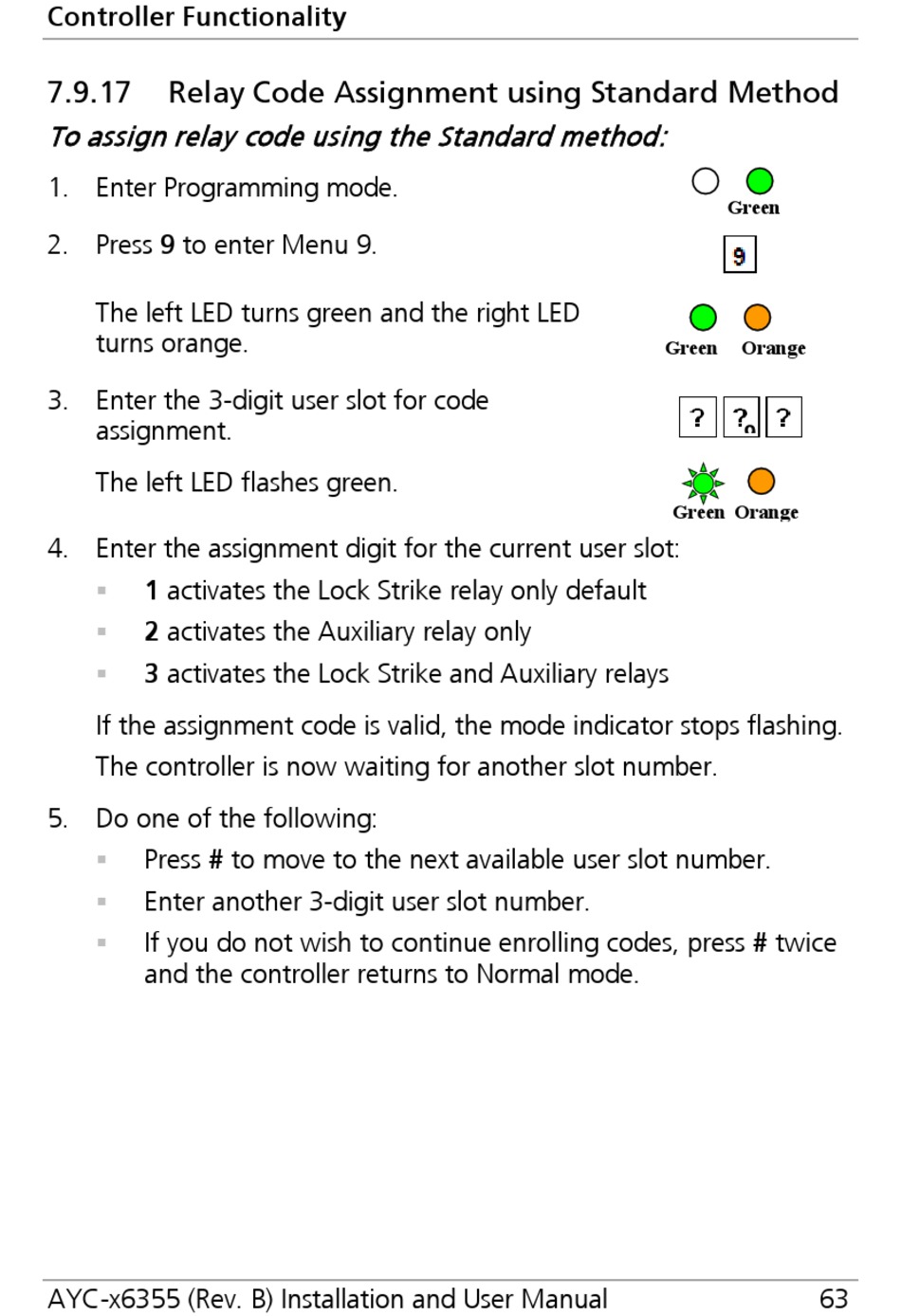

Relay Code Assignment using Standard Method

To assign relay code using the Standard method:
1. Enter Programming mode.
2. Press 9 to enter Menu 9.
The left LED turns green and the right LED
turns orange.
3. Enter the 3-digit user slot for code
assignment.
The left LED flashes green.
4. Enter the assignment digit for the current user slot:
1 activates the Lock Strike relay only default

2 activates the Auxiliary relay only

3 activates the Lock Strike and Auxiliary relays

If the assignment code is valid, the mode indicator stops flashing.
The controller is now waiting for another slot number.
5. Do one of the following:
Press # to move to the next available user slot number.

 Enter another 3-digit user slot number.
If you do not wish to continue enrolling codes, press # twice

and the controller returns to Normal mode.
AYC-x6355 (Rev. B) Installation and User Manual
Green
Green Orange
9
Green Orange
63
