- Page 1 Long range Multi Reader AY-Z12 Installation Guide May 2009...
-
Page 3: Table Of Contents
Table of Contents Table of Contents Introduction..............3 Technical Specifications ..........5 Installation................ 6 The Installation Kit........... 6 Installing the AY-Z12 Long Range Reader: ..... 6 Wiring Instructions............9 Operation Instructions ..........10 Appendix A: Limited Warranty ........11 Appendix B: Technical Support ........ -
Page 4: Introduction

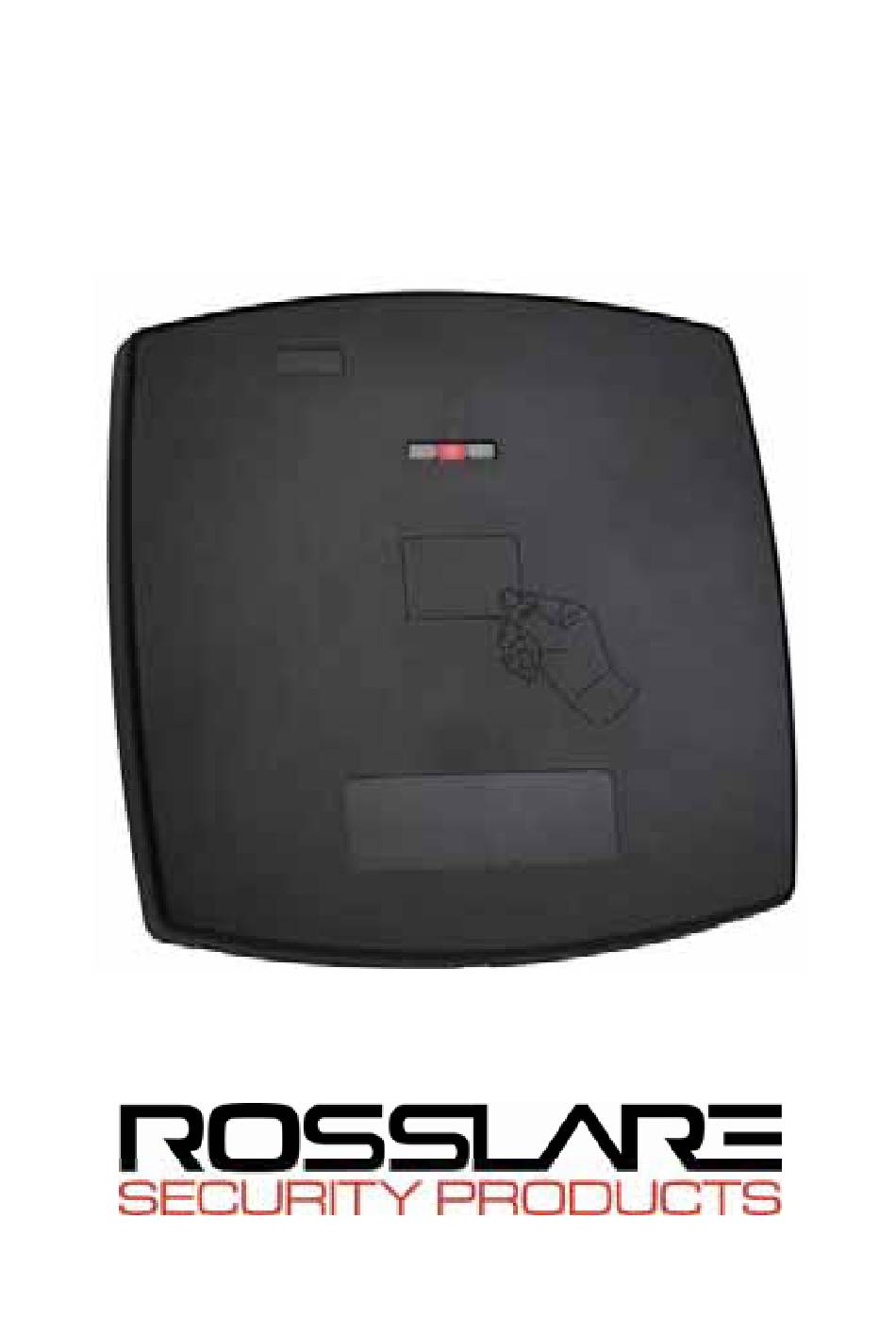

Introduction Introduction The AY-Z12 Long-range Reader is an RFID proximity card reader, utilized with access control systems. Figure 1 The AY-Z12 Long-Range Reader This Manual contains the following information: • Installation • Wiring Instructions • Operation Instructions Page 3 AY-Z12 Installation Manual... - Page 5 Introduction The AY-Z12, while easy to install and set up, must be installed professionally. This product has only one available channel. Pursuant to FCC §15.21 [ 54 FR 17714 , Apr. 25, 1989, as amended at 68 FR 68545 , Dec. 9, 2003], changes or modifications made to equipment, which are not expressly approved by Rosslare Enterprises, Ltd., may void the user's authority to operate the...
-
Page 6: Technical Specifications
Height x Width x Depth 11.81" x 11.81" x 1.0" 300mm x 300mm x 25.4 mm Weight 2.35 Lbs. (1066g) * Measured using Rosslare Proximity Card AT-R14 or equivalent. Range also depends on electrical environment and proximity to metal. Page 5 AY-Z12 Installation Manual... -
Page 7: Installation
The Installation kit comprises of the following items that are to be used during the installation procedure: • One Installation Template • Four pan head screws & wall plugs • One L shaped security screw tool • Three Security screws Installing the AY-Z12 Long Range Reader: AY-Z12 Installation Manual Page 6... - Page 8 Installation Figure 2: Removing the Top Cover Figure 2 shows the front view of the AY-Z12 Long-Range Reader. When installing the reader, you must remove the snap-off cover to access the screw holes. The Reader must be mounted with the appropriate screws (not supplied), as described in the template provided.
- Page 9 MP- Z02 spacer. Route the interface cable from the Reader to the Controller. A linear type power supply is recommended. AY-Z12 Installation Manual Page 8...
-
Page 10: Wiring Instructions
Wiring Instructions Wiring Instructions The AY-Z12 Reader is supplied with an 18” pigtail, comprising a 6- conductor cable. To connect the Reader to the Controller: Prepare the Reader cable by cutting its jacket back 1¼” and strip the insulation from the wires, ½”. -
Page 11: Operation Instructions
LED operation for Controllers with Reader LED control. The LED then returns to its idle state (red) The range is measured using a Rosslare Proximity Card (P/N AT- 11/12) or equivalent. The range also depends on electrical environment and/or proximity to metal. -
Page 12: Appendix A: Limited Warranty
Months). Warranty Remedy Coverage In the event of a breach of warranty, ROSSLARE will credit Customer with the price of the Product paid by Customer, provided that the warranty claim is delivered to ROSSLARE by the Customer during the warranty period in accordance with the terms of this warranty. - Page 13 This warranty shall not extend to any ancillary equipment not furnished by ROSSLARE, which is attached to or used in conjunction with a Product, nor to any Product that is used with any ancillary equipment, which is not furnished by ROSSLARE.
-
Page 14: Appendix B: Technical Support
Technical Support Appendix B: Technical Support Asia Pacific, Middle East, Africa Rosslare Security Products Headquarters 905-912 Wing Fat Industrial Bldg, 12 Wang Tai Road, Kowloon Bay Hong Kong Tel: +852 2795-5630 Fax: +852 2795-1508 E-mail: support.apac@rosslaresecurity.com United States and Canada... - Page 16 www.rosslaresecurity.com...
