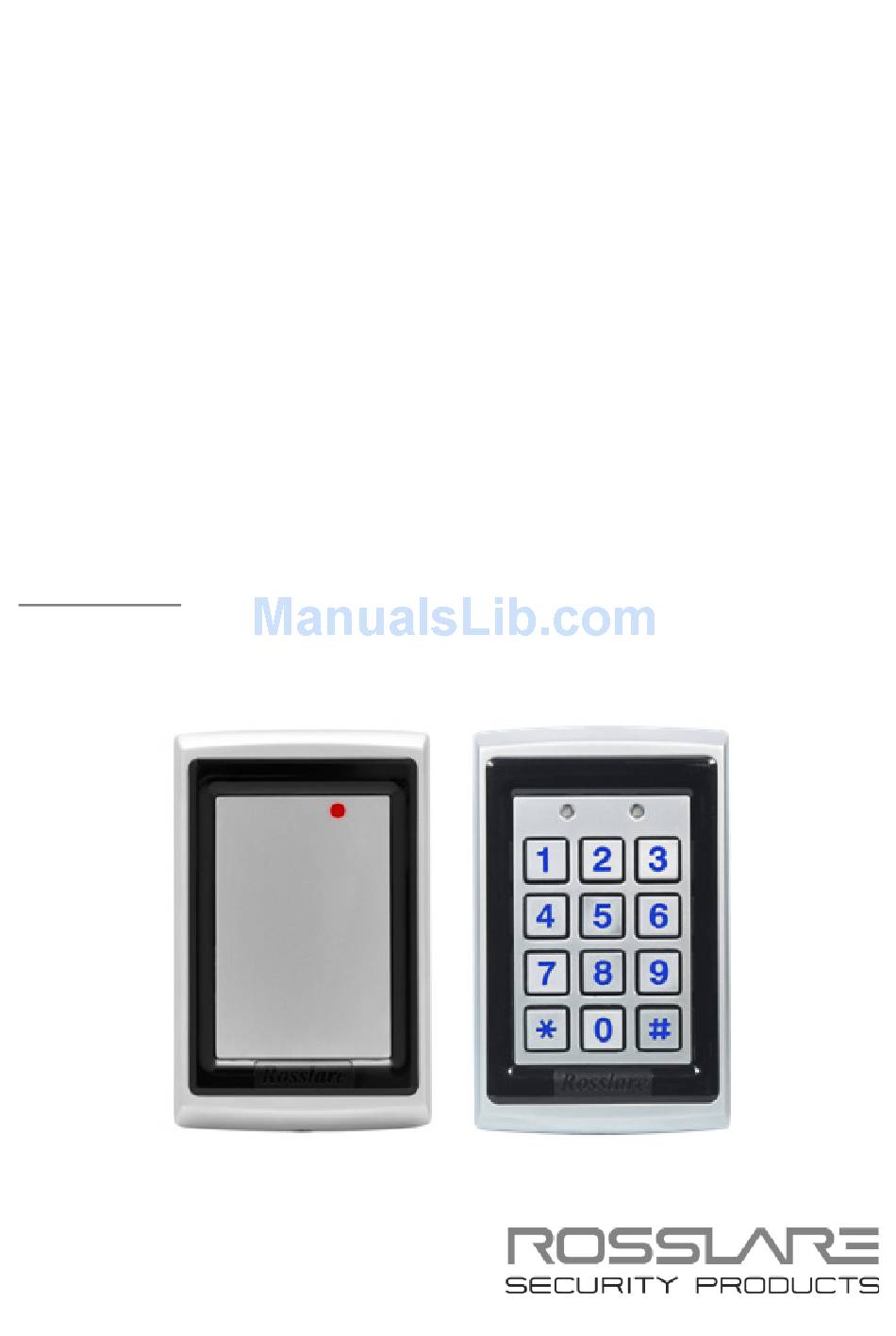

- Page 1 AY-Q6x50 Family Anti-Vandal MIFARE Contactless Smart Card / PIN Readers Installation and Programming Manual Models: AY-Q6250 AY-Q6350 AY-Q6250 AY-Q6350...
- Page 2 ROSSLARE. ROSSLARE reserves the right to revise and change this document at any time, without being obliged to announce such revisions or changes beforehand or after the fact.
-
Page 3: Table Of Contents
Exiting Programming Mode ........... 17 Selecting Keypad Transmission Format ........18 Keypad Transmission Format Option Number ......19 5.7.1 Single Key, Wiegand 6-Bit (Rosslare Format) ......... 19 5.7.2 Single Key, Wiegand 6-Bit, Nibble & Parities ......... 20 5.7.3 Single Key, Wiegand 8-Bit, Nibbles Complemented ...... 20 5.7.4... - Page 4 Table of Contents 5.7.6 6 Keys BCD and Parity Bits, Wiegand 26-Bit........22 5.7.7 Single Key, 3x4 Matrix Keypad ............22 5.7.8 1 to 8 Keys BCD, Clock & Data ............. 23 Selecting the Proximity Card Transmission Format ....23 Card Transmission Format Option Number ......
- Page 5 List of Figures List of Figures Figure 1: Back Plate ..................11 Figure 2: Connecting the Reader to an Access Control System ......13 AY-Q6x50 Family Installation and Programming Manual...
- Page 6 List of Tables List of Tables Table 1: Wiring Colors ..................12 Table 2: Programming Menu ................16 Table 3: Keypad Transmission Formats ............19 AY-Q6x50 Family Installation and Programming Manual...
- Page 7 ROSSLARE exclusive warranty and liability is limited to the warranty and liability statement provided in an appendix at the end of this document. This manual describes the maximum configuration of the system with the ...
-
Page 8: Introduction

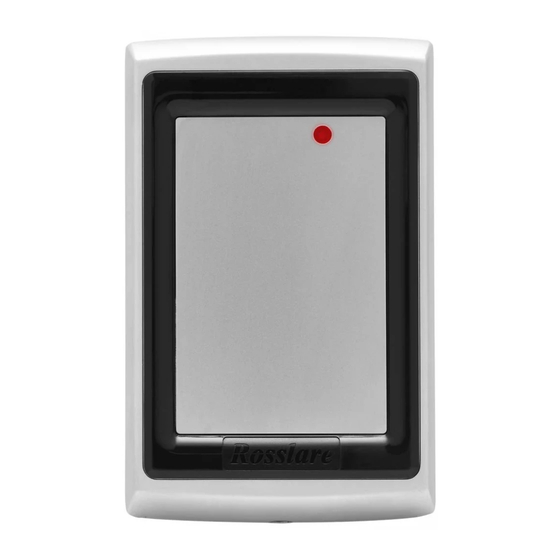

Introduction Introduction ® The AY-Q6250 and AYQ6350 series are metallic, anti-vandal MIFARE contactless smart card/PIN readers for indoor and outdoor use. The units read the MIFARE card serial number (CSN) and transmit in Wiegand, Clock & Data or Wiegand Card + PIN formats. -
Page 9: Supported Rfid Transponders
Introduction Metallic anti-vandal – suitable for outdoor use Two, tri-colored LED Supported RFID Transponders The AY-Q6250 and AY-Q6350 read the following transponders: MIFARE Ultralight 512-bit EEPROM MIFARE Classic 1K bytes memory MIFARE Classic 4K bytes memory MIFARE Ultralight 512-bit EEPROM is only partly supported;... -
Page 10: Technical Specifications
120 x 76 x 27 mm (4.7 x 3.0 x 1.1 in.) Weight 500 g (1.1 lb) Measured using a Rosslare proximity card or equivalent. Range also depends on electrical environment and proximity to metal. AY-Q6x50 Family Installation and Programming Manual... -
Page 11: Installation
To diminish this interference, use a plastic spacer when mounting the reader. The AY-Q6250 and AY-Q6350 packs include everything needed to install and operate the smart card sector readers. Mount the reader on the required surface and connect it to the access control system. -
Page 12: Wiring Instructions
Installation 3. Use the provided drilling template to accurately locate and drill the required holes in the wall or panel. 4. Use the hardware provided to mount the back plate on the wall or on a gang box. Be sure to route the wiring via the large center hole in the back plate. - Page 13 Installation Figure 2: Connecting the Reader to an Access Control System 4. If the tamper output is being utilized, connect the purple wire to the correct input on the controller. 5. Trim and cover all unused conductors. • The individual wires from the reader are color coded according the Wiegand standard.
-
Page 14: How To Use The Reader
MSB byte of the MIFARE 1K card’s serial number is not transmitted. Optical Back Tamper The AY-Q6250 and AY-Q6350 includes an optical back tampering mechanism which detects all attempts to dismantle the unit or remove it from the wall. -
Page 15: Keypad Programming Instructions (Ay-Q6350)
Keypad Programming Instructions (AY-Q6350) Keypad Programming Instructions (AY-Q6350) Transmit Mode When the AY-Q6350 is in Transmit mode, it is ready to read MIFARE CSN or entered PIN code data. When the reader is in Transmit mode, the Transmit Program Transmit LED is red. When a card or PIN entry is being transmitted, Transmit Program... - Page 16 Menu Description Default Selecting Keypad Transmission Format 1 – Single Key, Wiegand 6-Bit (Rosslare Format, Default) 2 – Single Key, Wiegand 6-Bit with Nibble + Parity Bits 3 – Single Key, Wiegand 8-Bit, Nibbles Complemented 4 – 4 Keys Binary + Facility Code, Wiegand 26-Bit 5 –...
-
Page 17: Entering Programming Mode
Keypad Programming Instructions (AY-Q6350) Entering Programming Mode To enter Programming mode: 1. Press # 4 times. Program The Transmit LED turns off and the Transmit Program LED turns red. 2. Enter your Programming code. 3. If the Programming code is valid, the Transmit Program Green... -
Page 18: Selecting Keypad Transmission Format
Keypad Programming Instructions (AY-Q6350) Selecting Keypad Transmission Format The AY-Q6350 has eight different keypad transmission selectable formats (see Section 5.7). To select the key pad transmission format: Program 1. Enter Programming mode. Transmit Green 2. Press 1 to enter Menu 1. Program The Transmit LED turns red. -
Page 19: Keypad Transmission Format Option Number
Table 3: Keypad Transmission Formats Keypad Transmission Format Option Number Single Key, Wiegand 6-Bit (Rosslare Format) Single Key, Wiegand 6-Bit with Nibble + Parity Bits Single Key, Wiegand 8-Bit, Nibbles Complemented 4 Keys Binary + Facility code, Wiegand 26-Bit... -
Page 20: Single Key, Wiegand 6-Bit, Nibble & Parities
Keypad Programming Instructions (AY-Q6350) 5.7.2 Single Key, Wiegand 6-Bit, Nibble & Parities Each key press immediately sends 4 bits with 2 parity bits added – even parity for the first 3 bits and odd parity for the last 3 bits. 0 = 0 0000 1 6 = 1 0110 0 1 = 0 0001 0... -
Page 21: To 5 Keys + Facility Code, Wiegand 26-Bit
Keypad Programming Instructions (AY-Q6350) If the entry of the 4-digit keypad PIN code is disrupted and no number key is pressed within 5 seconds, the keypad clears the PIN code entry buffer, generates a beep and is ready to receive a new 4-digit keypad PIN code. -
Page 22: Keys Bcd And Parity Bits, Wiegand 26-Bit
Keypad Programming Instructions (AY-Q6350) Where: EP = Even parity for first 12 bits OP = Odd parity for last 12 bits F = 8-Bit Facility code A = 24-Bit code generated from keyboard 5.7.6 6 Keys BCD and Parity Bits, Wiegand 26-Bit This option sends a buffer of 6 keys, adds parity, and sends a 26-Bit BCD message. -
Page 23: To 8 Keys Bcd, Clock & Data
Keypad Programming Instructions (AY-Q6350) 5.7.8 1 to 8 Keys BCD, Clock & Data This option buffers up to 8 keys and outputs keypad data, much like standard Clock and Data card output. The keypad PIN code can be one to eight digits in length. The PIN code length is selected while programming the reader for Option 8. -
Page 24: Card Transmission Format Option Number
Keypad Programming Instructions (AY-Q6350) If an incorrect option number is entered, the reader returns to Transmit mode and the keypad transmission format remains unchanged. Card Transmission Format Option Number Keypad Transmission Format Option Number Wiegand 26-Bit (default) Clock & Data Wiegand Card and PIN Wiegand 26-Bit with Facility code output Wiegand 32-Bit... -
Page 25: Clock And Data
Keypad Programming Instructions (AY-Q6350) 5.9.2 Clock and Data In this mode, 4 bytes of card serial number are transmitted in Clock & Data format. 5.9.3 Wiegand Card + PIN Transmission Format This unique mode is intended to let host controllers get card and keypad data simultaneously. -
Page 26: Wiegand 32-Bit
Keypad Programming Instructions (AY-Q6350) 5.9.5 Wiegand 32-Bit In this mode, 4 bytes of card serial number are transmitted in Wiegand 32-bit format. No parity bits are added. AAAA AAAA BBBB BBBB CCCC CCCC DDDD DDDD Where: A = 4 (MSB) byte of card serial number B = 3 byte of card serial number C = 2... -
Page 27: Wiegand 40-Bit And Checksum
Keypad Programming Instructions (AY-Q6350) Where: EP = Even parity for first 16 data bits OP = Odd parity for last 16 data bits A = 4 (MSB) byte of card serial number B = 3 byte of card serial number C = 2 byte of card serial number D = 1... -
Page 28: Changing The Facility Code
Keypad Programming Instructions (AY-Q6350) You hear three beeps. Transmit Program The system returns to Transmit mode. • The Default Programming code is 1234 • Programming code cannot be erased, meaning the code 0000 is not valid and does not erase the Programming code 5.11 Changing the Facility Code To change the Facility code:... -
Page 29: Return To Factory Default Settings
Keypad Programming Instructions (AY-Q6350) 3. Enter the appropriate option number for the backlight option that you wish to select: 0 for always off 1 for always on 2 for 10 sec. backlight after a key is pressed otherwise off ... -
Page 30: Replacing A Lost Programming Code
Keypad Programming Instructions (AY-Q6350) 5.14 Replacing a lost Programming Code In the event that the Programming code is forgotten, the AY-Q6350 may be reprogrammed in the field using the following instructions: 1. Remove power from the reader. 2. Activate tamper by removing the reader from the wall or removing the reader's case. -
Page 31: Limited Warranty
The full ROSSLARE Limited Warranty Statement is available in the Quick Links section on the ROSSLARE website at www.rosslaresecurity.com. Rosslare considers any use of this product as agreement to the Warranty Terms even if you do not review them. AY-Q6x50 Family Installation and Programming Manual... - Page 32 +86 755 8610 6842 Fax: +86 755 8610 6101 Rosslare Security Products, Inc. support.cn@rosslaresecurity.com Southlake, TX, USA Toll Free: +1-866-632-1101 India Local: +1-817-305-0006 Rosslare Electronics India Pvt Ltd. Fax: +1-817-305-0069 Tel/Fax: +91 20 40147830 support.na@rosslaresecurity.com Mobile: +91 9975768824 Europe sales.in@rosslaresecurity.com Rosslare Israel Ltd.
