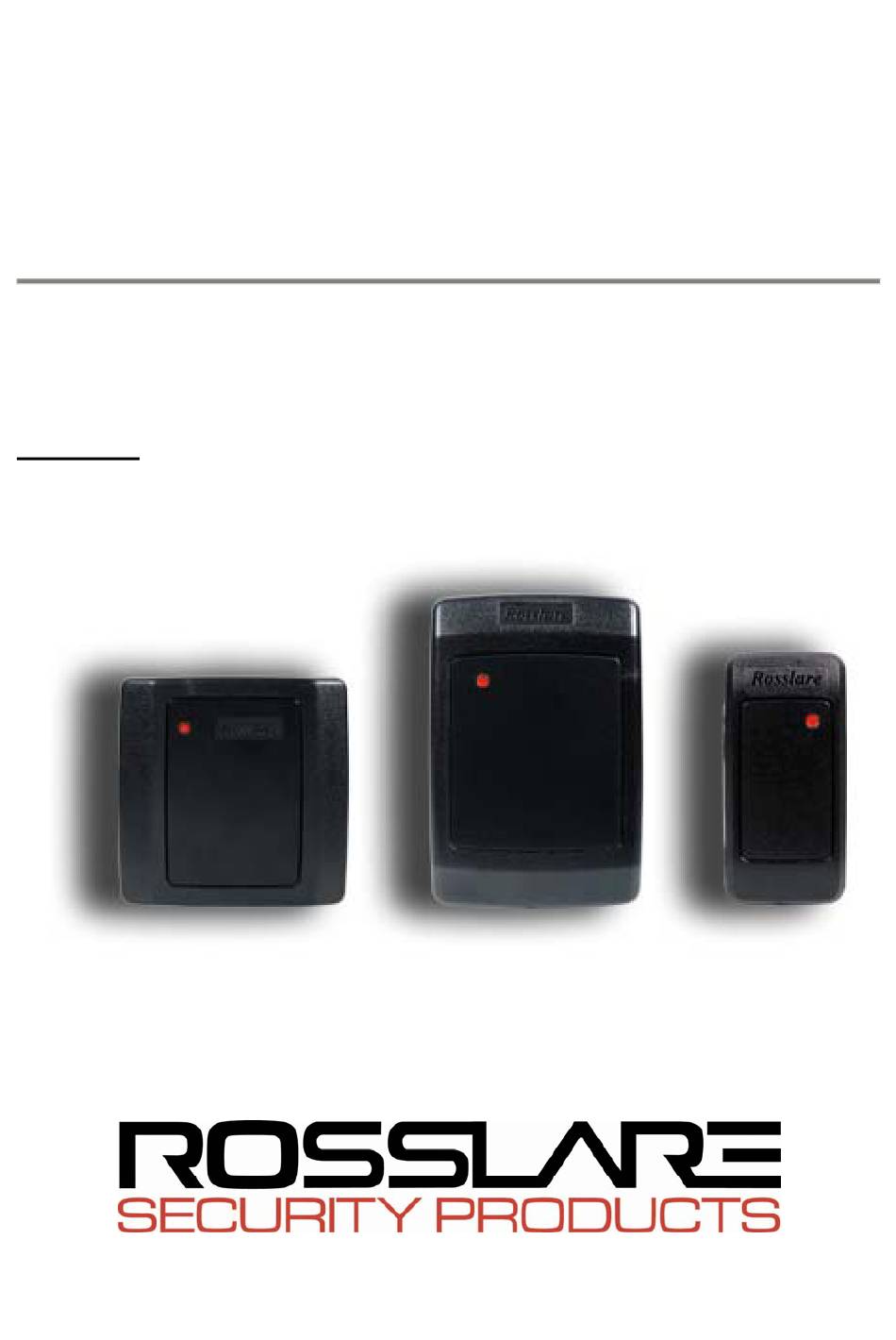

- Page 1 AY-x25 Family Mifare® ID Read-Only Proximity Reader Installation & Operational Manual Models: AY-H25 AY-K25 AY-M25 March 2008...
-
Page 3: Table Of Contents
Table of Contents Table of Contents Introduction..............3 General Specifications..........3 Supported Transponders ........... 4 Technical Specifications ..........5 Installation................ 6 The Installation Kit........... 6 Installing the AY-x25 Reader:........6 Wiring Instructions............8 Operation Instructions ..........10 Appendix A. Limited Warranty ........11 Appendix B. -
Page 4: Introduction
Introduction 1. Introduction The AY-x25 Prox Reader is a MIFARE ID Read-only family of proximity ® readers that are intended primarily for use in access control system applications. The AY-x25 family reads the MIFARE Card Identification ® Number and transmits it to the access control system, using multi- formats common Wiegand interface. -
Page 5: Supported Transponders
Introduction 1.2 Supported Transponders • MIFARE Ultralight 512-bit EEPROM ® • MIFARE Classic 1Kbytes memory ® • MIFARE Classic 4Kbytes memory ® Note: Mifare Ultra light 512 bit EEPROM is partly supported. Only 32 bits out of the 56 bits can be transmitted. -
Page 6: Technical Specifications
109.9x74.9x15mm (3.5x3.5x0.59'') (3.15x1.57x0.50'') (4.33x2.95x0.59'') H x W x D 116g (0.255lbs) 69g (0.152lbs) 114g (0.251lbs) Weight Range depends on the electrical environment and proximity to metal measured with Rosslare's MIFARE® Classic 1Kbytes cards. Page 5 AY-x25 Installation & Operating Manual... -
Page 7: Installation
Installation 3. Installation 3.1 The Installation Kit The Installation kit comprises the following items that are to be used during the installation procedure: • One Mounting Template • Two pan head screws & wall plugs • One L shaped security screw tool •... - Page 8 Installation Figure 1: Removing the Top Cover Align the two holes of the Reader with those drilled in the wall and firmly attach the Reader to the wall with two screws, whose size is indicated on the template. Relocate the front cover onto the Reader. Note: The Reader can also be mounted using strong epoxy glue.
-
Page 9: Wiring Instructions
Wiring Instructions Wiring Instructions The AY-x25 is supplied with an 18” pigtail, comprising a 6-conductor cable To connect the Reader to the Controller: Prepare the Reader cable by cutting its jacket back 1¼" and strip the insulation from the wires, ½". Prepare the Controller cable by cutting its jacket back 1¼"... - Page 10 Wiring Instructions Note: • The individual wires from the Reader are color-coded according the Wiegand standard. • When using a separate power supply for the Reader, this supply and that of the Controller must have a common ground. • The Reader’s cable shield wire should be preferably attached to an earth ground, or a signal ground connection at the panel, or power supply end of the cable.
-
Page 11: Operation Instructions
Operation Instructions Operation Instructions The Reader should be tested after wiring it to a power supply and the Controller. To test the Reader: Power up the Reader. The LED flashes green and the Beeper sounds, three times, thus indicating that the Reader is working properly. -
Page 12: Appendix A. Limited Warranty
2 years (24 Months). Warranty Remedy Coverage In the event of a breach of warranty, ROSSLARE will credit Customer with the price of the Product paid by Customer, provided that the warranty claim is delivered to ROSSLARE by the Customer during the warranty period in accordance with the terms of this warranty. - Page 13 This warranty shall not extend to any ancillary equipment not furnished by ROSSLARE, which is attached to or used in conjunction with a Product, nor to any Product that is used with any ancillary equipment, which is not furnished by ROSSLARE.
-
Page 14: Appendix B. Technical Support
Technical Support Appendix B. Technical Support Asia Pacific, Middle East Rosslare Security Products Headquarters 905-912 Wing Fat Industrial Bldg, 12 Wang Tai Road, Kowloon Bay Hong Kong Tel: +852 2795-5630 Fax: +852 2795-1508 E-mail: support.apac@rosslaresecurity.com United States and Canada 1600 Hart Court, Suite 103... - Page 16 www.rosslaresecurity.com...
