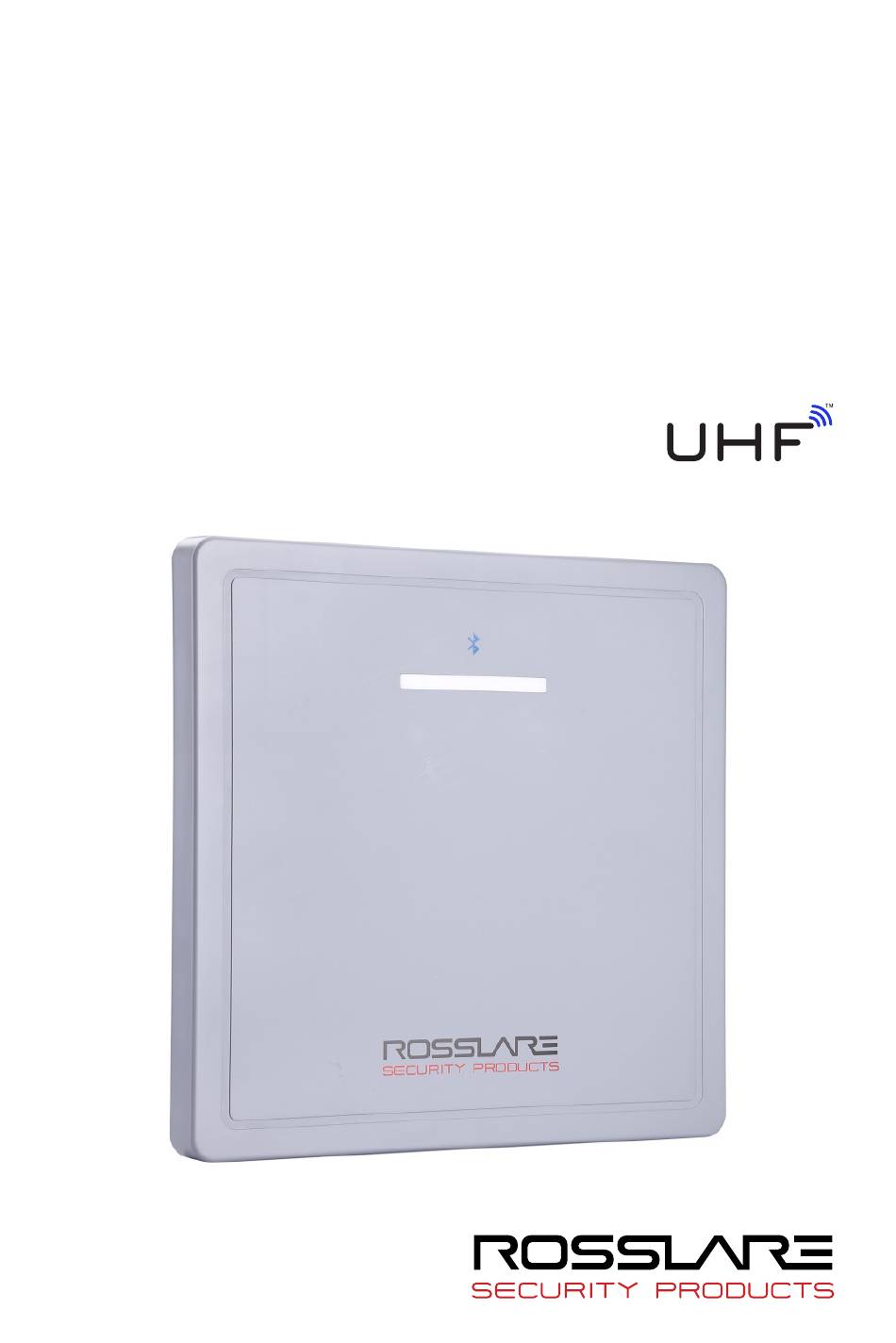

- Page 1 AY-U920BT-US Extended Long-Range UHF-RFID Reader with Bluetooth BLE-ID Installation and User Manual S M A R T...
- Page 2 ROSSLARE. ROSSLARE reserves the right to revise and change this document at any time, without being obliged to announce such revisions or changes beforehand or after the fact.
-
Page 3: Table Of Contents
Reader Settings ................. 16 AY-U920BT Reader Configuration Settings ........17 Additional Settings ................18 A. Declaration of Conformity ..........19 B. Radio Equipment Directive (RED) ........20 C. RoHS Directive ..............21 D. Limited Warranty ............22 AY-U920BT-US Installation and User Manual... - Page 4 Figure 1: 1-shaped Stand Bracket Side-Loaded ..........9 Figure 2: L-shaped Stand Bracket Loaded............10 Figure 3: Antenna Angle Side View .............. 11 Figure 4: Antenna Angle Top View ............... 11 Figure 5: Wiring Colors................. 12 AY-U920BT-US Installation and User Manual...
- Page 5 List of Tables List of Tables Table 1: Wiring the Unit as a Reader to a Control Panel ........ 12 AY-U920BT-US Installation and User Manual...
- Page 6 ROSSLARE exclusive warranty and liability is limited to the warranty and liability statement provided in an appendix at the end of this document. ...
-
Page 7: Introduction
UHF frequencies (865-868 and 902-928 MHz) and supports Bluetooth BLE frequencies and protocols. Two associated apps for iOS and Android smartphones made by Rosslare can be used with the reader – BLE-ID credential app and BLE-Admin configuration app – for programming operational settings. -
Page 8: Technical Specifications
Dual polarization read mode Cards and Tags • EPC GEN2 (ISO18000-6C) Tags • BLE-ID soft credentials * Measured using a Rosslare proximity card or equivalent. Environmental Characteristics Operating Temp. Range -20°C to 60°C (-4°F to 140°F) Operating Humidity Range 0 to 95% (non-condensing) -
Page 9: Mounting
(mainly large car and small car) (Figure 1). Figure 1: 1-shaped Stand Bracket Side-Loaded Adjust the height from the center of AY-U920BT reader to lane level to be around 2.0 m (6.5 ft). AY-U920BT-US Installation and User Manual... -
Page 10: L-Shaped Stand Bracket Top-Loaded
(Figure 2). Figure 2: L-shaped Stand Bracket Loaded Adjust the height between the rail and the ground to between 3.5 to 4.0 m (11.5 to 13 ft), depending on the height of vehicle. AY-U920BT-US Installation and User Manual... -
Page 11: Adjusting The Azimuth Angle Of Antenna
The angle of inclination with the ground plane of the antenna should be approximately 60° to 75° (Figure 3), while the deviation angle of the antenna should be biased towards the lane direction (Figure 4). Figure 3: Antenna Angle Side View Figure 4: Antenna Angle Top View AY-U920BT-US Installation and User Manual... -
Page 12: Wiring
Green LED Control Brown Yellow LED Control Purple OC Output* Yellow Hold/Trigger Control Blue RS-485 - A / OSDP** Gray RS-485 - B / OSDP** * for future use ** RS-485 is used for firmware update. AY-U920BT-US Installation and User Manual... - Page 13 • The reader’s cable shield wire should be preferably attached to an earth ground, or a signal ground connection at the panel, or the power supply end of the cable. This configuration is best for shielding the reader cable from external interference. AY-U920BT-US Installation and User Manual...
-
Page 14: Operation Instructions
Power up the reader. One beep is emitted and then it begins an auto- calibration procedure. After 2 seconds, the reader enters working mode. Present the appropriate type of credential to the reader. A short beep is emitted, indicating that the credential is read properly. AY-U920BT-US Installation and User Manual... -
Page 15: App-X421 Admin App
APP-x421 Admin App APP-x421 Admin App The settings for the AY-U920BT reader can be configured using Rosslare’s APP-x421 Admin app. Opening the App Download the APP-x421 Admin app for the AY-U920BT reader from Google Play or the Apple Store, depending on the model of your mobile device. -
Page 16: Reader Settings
Tap to view/edit the reader configuration Tap to update the firmware Tap to make the reader beep so you Tap to send the can identify it device ID to the reader to test access AY-U920BT-US Installation and User Manual... -
Page 17: Ay-U920Bt Reader Configuration Settings
Starting Address – Slide to select the initial ID bit Read Mode – Select the read mode Read Trigger – Slide to select the amount of time between reading of credentials in the surrounding AY-U920BT-US Installation and User Manual... -
Page 18: Additional Settings
Tap to: Set the reader’s read range Change the GUI language Set the automation, which Tap to see the EULA allows the reader to support self checkups in specific chosen intervals AY-U920BT-US Installation and User Manual... -
Page 19: Declaration Of Conformity
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment . This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with minimum distance 25cm between the radiator &you body. AY-U920BT-US Installation and User Manual... -
Page 20: Radio Equipment Directive (Red)
Radio Equipment Directive (RED) Radio Equipment Directive (RED) Under our sole responsibility that the following labeled AY-U920BT is tested to conform to the EU Radio Equipment Directive – RED 2014/53/EU – in electrical and electronic equipment. AY-U920BT-US Installation and User Manual... -
Page 21: Rohs Directive
RoHS Directive RoHS Directive Under our sole responsibility that the following labeled AY-U920BT is tested to conform to the Restriction of Hazardous Substances (RoHS) directive – 2011/65/EU – in electrical and electronic equipment AY-U920BT-US Installation and User Manual... -
Page 22: Limited Warranty
The full ROSSLARE Limited Warranty Statement is available in the Quick Links section on the ROSSLARE website at www.rosslaresecurity.com. Rosslare considers any use of this product as agreement to the Warranty Terms even if you do not review them. AY-U920BT-US Installation and User Manual... - Page 23 Fax: +86 755 8610 6101 Southlake, TX, USA support.cn@rosslaresecurity.com Toll Free: +1-866-632-1101 Local: +1-817-305-0006 India Fax: +1-817-305-0069 support.na@rosslaresecurity.com Rosslare Electronics India Pvt Ltd. Tel/Fax: +91 20 40147830 Europe Mobile: +91 9975768824 sales.in@rosslaresecurity.com Rosslare Israel Ltd. 22 Ha'Melacha St., P.O.B. 11407 Rosh HaAyin, Israel...
