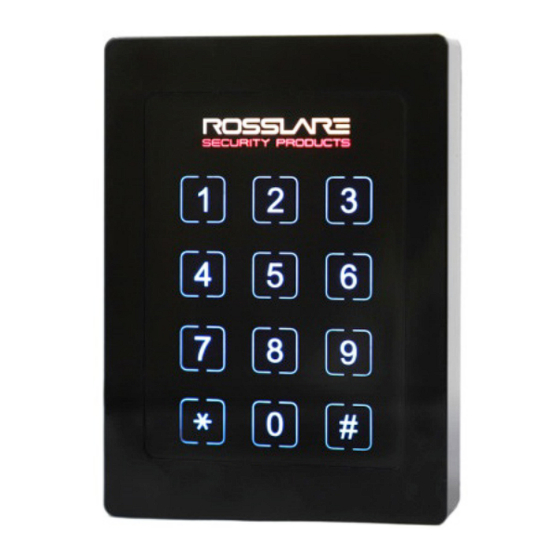

Rosslare MIFARE AY-T6350 Installation And Programming Manual

Rosslare MIFARE AY-T6350 Installation And Programming Manual

Contactless smart card / pin readers

Advertisement

AY-T6350
MIFARE® Contactless Smart Card / PIN
Readers
Installation and Programming Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MIFARE AY-T6350 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Rosslare MIFARE AY-T6350

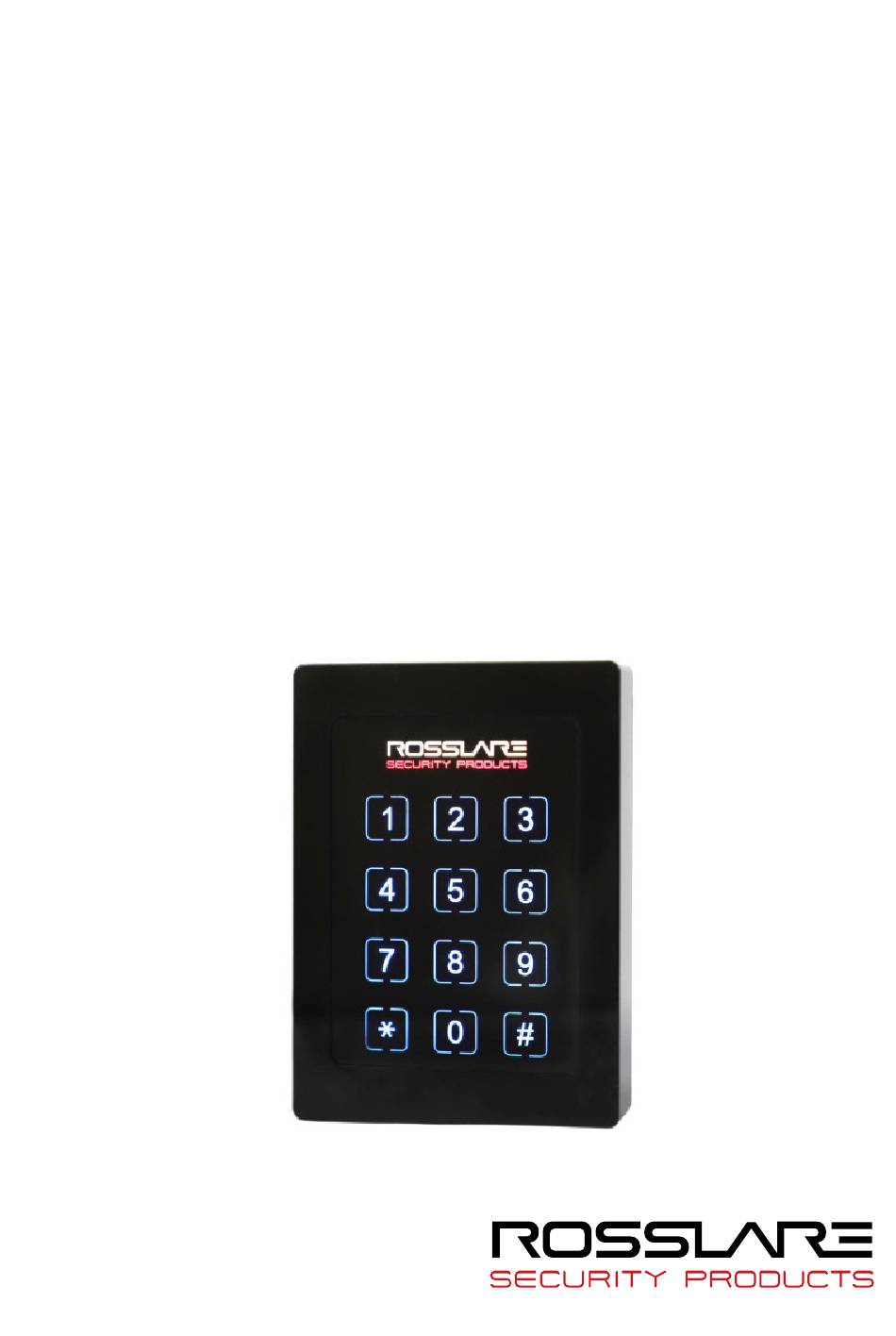

  • Page 1 AY-T6350 MIFARE® Contactless Smart Card / PIN Readers Installation and Programming Manual...
  • Page 2 ROSSLARE. ROSSLARE reserves the right to revise and change this document at any time, without being obliged to announce such revisions or changes beforehand or after the fact.
  • Page 3: Table Of Contents

    Entering Programming Mode ..........16 Exiting Programming Mode ........... 16 Selecting Keypad Transmission Format ........17 5.4.1 Single Key, Wiegand 6-Bit (Rosslare Format) ......... 18 5.4.2 Single Key, Wiegand 6-Bit, Nibble & Parities ......... 18 5.4.3 Single Key, Wiegand 8-Bit, Nibbles Complemented ...... 18 5.4.4...
  • Page 4 Table of Contents Selecting the Proximity Card Transmission Format ....22 5.5.1 Wiegand 26-Bit ................23 5.5.2 Clock and Data ................23 5.5.3 Wiegand Card + PIN Transmission Format ........23 5.5.4 Wiegand 26-Bit and Facility Code ..........24 5.5.5 Wiegand 32-Bit ................
  • Page 5 List of Figures List of Figures Figure 1: Removing the Top Cover ..............10 AY-T6350 Installation and Programming Manual...
  • Page 6 List of Tables List of Tables Table 1: Wiring Colors ..................11 Table 2: Programming Menu ................15 AY-T6350 Installation and Programming Manual...
  • Page 7 ROSSLARE exclusive warranty and liability is limited to the warranty and  liability statement provided in an appendix at the end of this document.
  • Page 8: Introduction

    32 bits out of the 64 bits can be transmitted. Box Content Before beginning, verify that all of the following is in the box; if anything is missing, please contact your nearest Rosslare office.  One AY-T6350 reader Installation kit including: ...
  • Page 9: Technical Specifications

    110 x 80 x 17.5 mm (4.3 x 3.2 x 0.7 in.) Weight 170 g (6 oz) * Measured using a Rosslare proximity card or equivalent. Range also depends on electrical environment and proximity to metal. AY-T6350 Installation and Programming Manual...
  • Page 10: Installation

    Installation Installation Installation of an RFID reader adjacent to metallic surfaces might alter the reader’s specifications. To diminish this interference, use a plastic spacer when mounting the reader. The AY-T6350 pack includes everything needed to install and operate the smart card sector readers. Mount the reader on the required surface and connect it to the access control system.
  • Page 11: Wiring

    Installation 7. Insert the unit’s cable wire into the cable hole and wire the unit as described in Section 3.2. 8. Screw the back cover to its mounting location. 9. Carefully re-attach the front cover of the unit. 10. Secure the front cover by using the supplied security Torx screw. A Torx security screw tool is provided to tighten the security Torx screw.
  • Page 12 Installation 4. If the tamper output is being utilized, connect the purple wire to the correct input on the controller. 5. Trim and cover all unused conductors. • The individual wires from the reader are color-coded according the Wiegand standard. •...
  • Page 13: How To Use The Reader

    How to Use the Reader How to Use the Reader After the reader has been mounted, connected to an access control system, and configured, it is ready for use. Normal Operation The default mode of the reader is Standby mode. In Standby mode, the unit is ready to receive data from a presented proximity card or an entered PIN code.
  • Page 14: Optical Back Tamper

    How to Use the Reader Optical Back Tamper The reader includes an optical back tampering mechanism which detects all attempts to dismantle the unit or remove it from the wall. The status of the tamper mechanism is indicated by the purple Tamper control wire.
  • Page 15: Keypad Programming Instructions

    Menu Description Default Selecting Keypad Transmission Format 1 – Single Key, Wiegand 6-Bit (Rosslare Format, Default) 2 – Single Key, Wiegand 6-Bit with Nibble + Parity Bits 3 – Single Key, Wiegand 8-Bit, Nibbles Complemented 4 – 4 Keys Binary + Facility Code, Wiegand 26-Bit 5 –...
  • Page 16: Entering Programming Mode

    Keypad Programming Instructions Entering Programming Mode To reach the Programming Menu System, the unit must first be placed into Programming mode. • The factory default Programming code is 1234. • If a Programming code is not entered within 30 seconds, the reader returns to Transmit mode.
  • Page 17: Selecting Keypad Transmission Format

    2. Press 1 to enter Menu 1. The LED flashes green. 3. Enter one of the following codes: 1 – Single Key, Wiegand 6-Bit (Rosslare Format) (default)  2 – Single Key, Wiegand 6-Bit with Nibble + Parity Bits ...
  • Page 18: Single Key, Wiegand 6-Bit (Rosslare Format)

    Keypad Programming Instructions 5.4.1 Single Key, Wiegand 6-Bit (Rosslare Format) Each key press immediately sends 4 bits with 2 parity bits added – even parity for the first 3 bits and odd parity for the last 3 bits. 0 = 1 1010 0...
  • Page 19: Keys Binary + Facility Code, Wiegand 26-Bit

    Keypad Programming Instructions 5.4.4 4 Keys Binary + Facility Code, Wiegand 26-Bit This option buffers 4 keys and outputs keypad data with a 3-digit facility code like a standard 26-bit card output. The Facility code is set in Programming Menu 4 four and can be in the range 000 to 255.
  • Page 20: Keys Bcd And Parity Bits, Wiegand 26-Bit

    Keypad Programming Instructions fifth key press of the 5-digit PIN code, the data is sent across the Wiegand Data lines as binary data in the same format as a 26-bit card. If * is pressed during PIN code entry or a PIN code greater than 65,535 is entered, the keypad clears the PIN code entry buffer, generates a beep and is ready to receive a new 4-digit keypad PIN code.
  • Page 21: Single Key, 3X4 Matrix Keypad (Md-P64)

    Keypad Programming Instructions 5.4.7 Single Key, 3x4 Matrix Keypad (MD-P64) Each key press immediately sends 4 bits data, no parity bits added. 0 = 0000 6 = 0110 1 = 0001 7 = 0111 2 = 0010 8 = 1000 3 = 0011 9 = 1001 4 = 0100...
  • Page 22: Selecting The Proximity Card Transmission Format

    Keypad Programming Instructions Selecting the Proximity Card Transmission Format There are eight selectable card transmission formats. To select the prox imity card transmission format: 1. Enter Programming mode. 2. Press 2 to enter Menu 2. The LED flashes green. 3. Enter one of the following codes: 1 –...
  • Page 23: Wiegand 26-Bit

    Keypad Programming Instructions 5.5.1 Wiegand 26-Bit In this mode, 3 bytes of the CSN are transmitted in Wiegand 26-Bit format. Two parity bits are added. An even parity bit is sent first, followed by three bytes card data than followed by odd parity bit. The fourth byte of the cards serial number is not transmitted.
  • Page 24: Wiegand 26-Bit And Facility Code

    Keypad Programming Instructions 5.5.4 Wiegand 26-Bit and Facility Code In this mode, 1 byte Facility code followed by 2 bytes of the card's serial number are transmitted in Wiegand 26-Bit format. Two parity bits are added. An even parity bit is sent first, followed by one facility code byte then followed by a two-byte CSN ending with an odd parity bit.
  • Page 25: Wiegand 34-Bit

    Keypad Programming Instructions Where: D = 1 (LSB) byte of the CSN C = 2 byte of the CSN B = 3 byte of the CSN A = 4 (MSB) byte of the CSN 5.5.7 Wiegand 34-Bit In this mode, 4 bytes of the CSN are transmitted in Wiegand 34-bit format.
  • Page 26: Changing The Programming Code

    Keypad Programming Instructions Changing the Programming Code To change the Programming code: 1. Enter Programming mode. 2. Press 3 to enter Menu 3. The LED flashes green. 3. Enter the new code you wish to set as the Programming code. You hear three beeps.
  • Page 27: Return To Factory Default Settings

    Keypad Programming Instructions Return to Factory Default Settings You must be very careful before using this command! Doing so erases the entire memory that includes all user and special codes, and returns all codes to their factory default settings. To return to factory default settings: 1.
  • Page 28: Limited Warranty

    The full ROSSLARE Limited Warranty Statement is available in the Quick Links section on the ROSSLARE website at www.rosslaresecurity.com. Rosslare considers any use of this product as agreement to the Warranty Terms even if you do not review them. AY-T6350 Installation and Programming Manual...
  • Page 29 Shenzhen, China United States and Tel: +86-755-8610 6842 Canada Fax: +86-755-8610 6101 support.cn@rosslaresecurity.com Rosslare Security Products, Inc. India Southlake, TX, USA Toll Free: +1-866-632-1101 Rosslare Electronics India Pvt Ltd. Local: +1-817-305-0006 Tel/Fax: +91-20-40147830 Fax: +1-817-305-0069 Mobile: +91-9975768824 support.na@rosslaresecurity.com sales.in@rosslaresecurity.com Europe Rosslare Israel Ltd.
