OSDP Operation

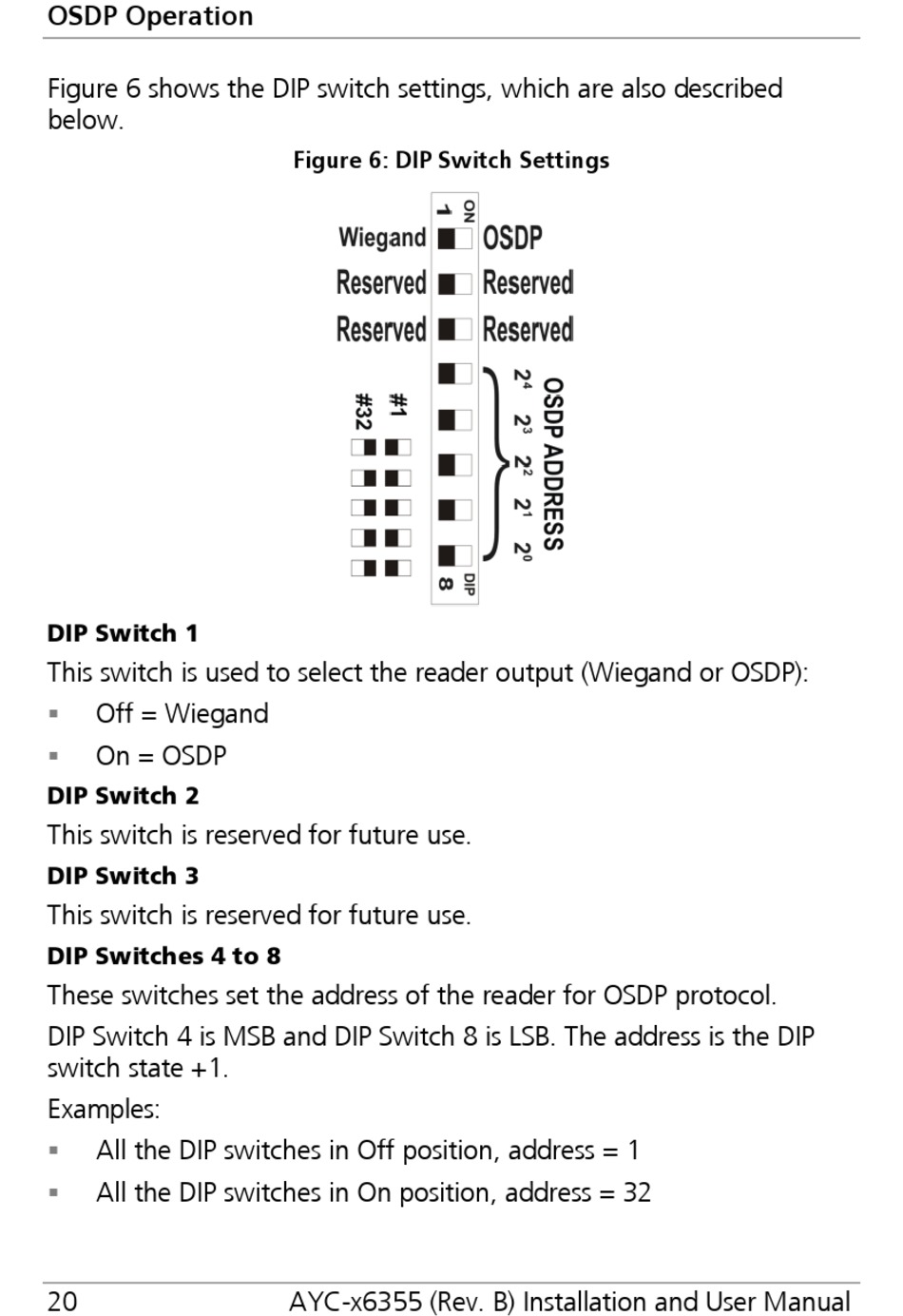

Figure 6 shows the DIP switch settings, which are also described
below.
DIP Switch 1
This switch is used to select the reader output (Wiegand or OSDP):
 Off = Wiegand
On = OSDP

DIP Switch 2
This switch is reserved for future use.
DIP Switch 3
This switch is reserved for future use.
DIP Switches 4 to 8
These switches set the address of the reader for OSDP protocol.
DIP Switch 4 is MSB and DIP Switch 8 is LSB. The address is the DIP
switch state +1.
Examples:
All the DIP switches in Off position, address = 1

All the DIP switches in On position, address = 32

