Figure 3: Auxiliary Output Connection With Internal Power; Figure 4: Auxiliary Output Connection With External Power - Rosslare CSN SELECT AYC-6355 Series Installation And User Manual

Smart card readers/controllers (rev. b)

Table of Contents

Wiring Instructions

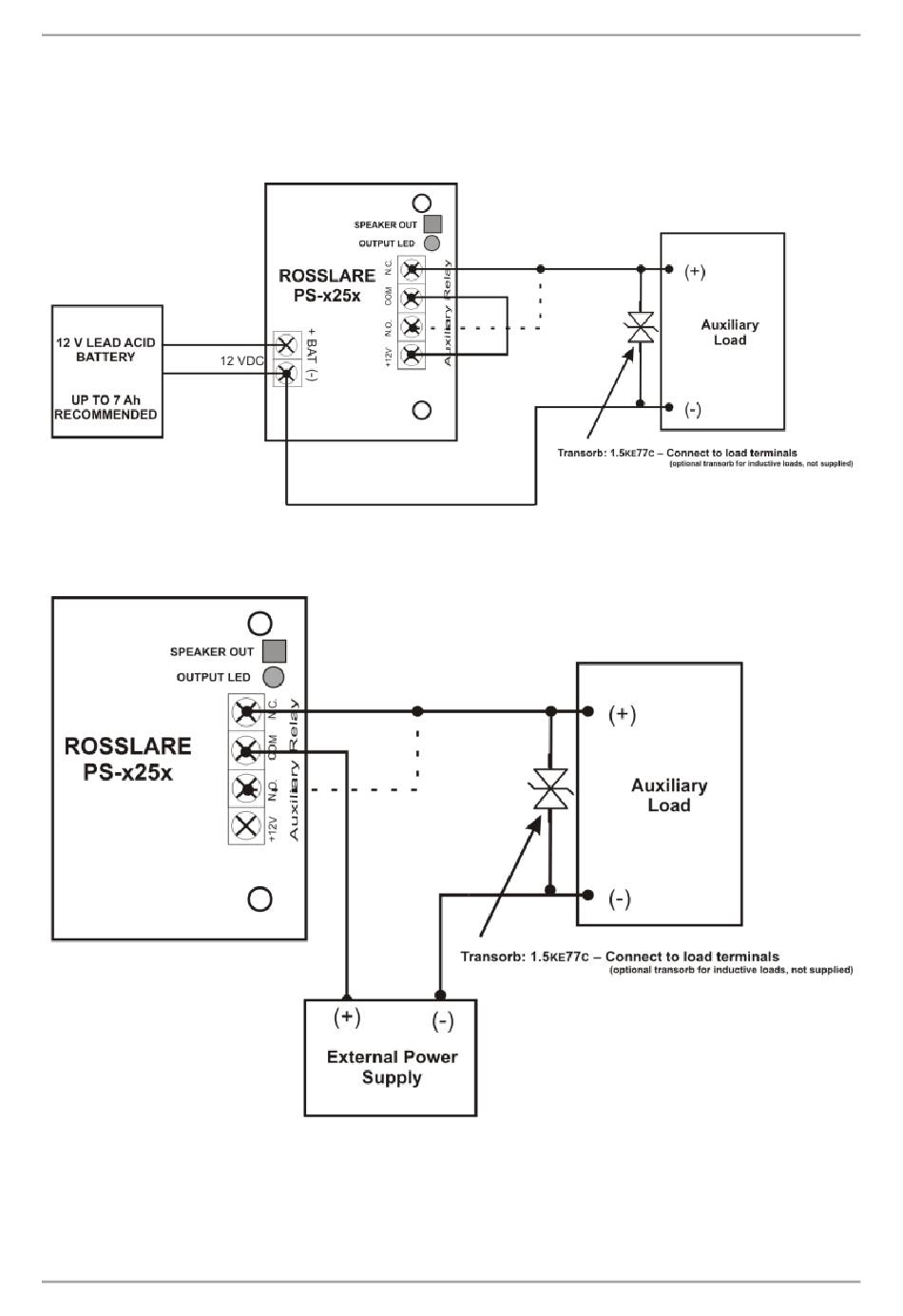

Figure 3 shows the auxiliary output connection using the internal

power.

Figure 3: Auxiliary Output Connection with Internal Power

Figure 4 shows the auxiliary output connection using external power.

AYC-x6355 (Rev. B) Installation and User Manual
