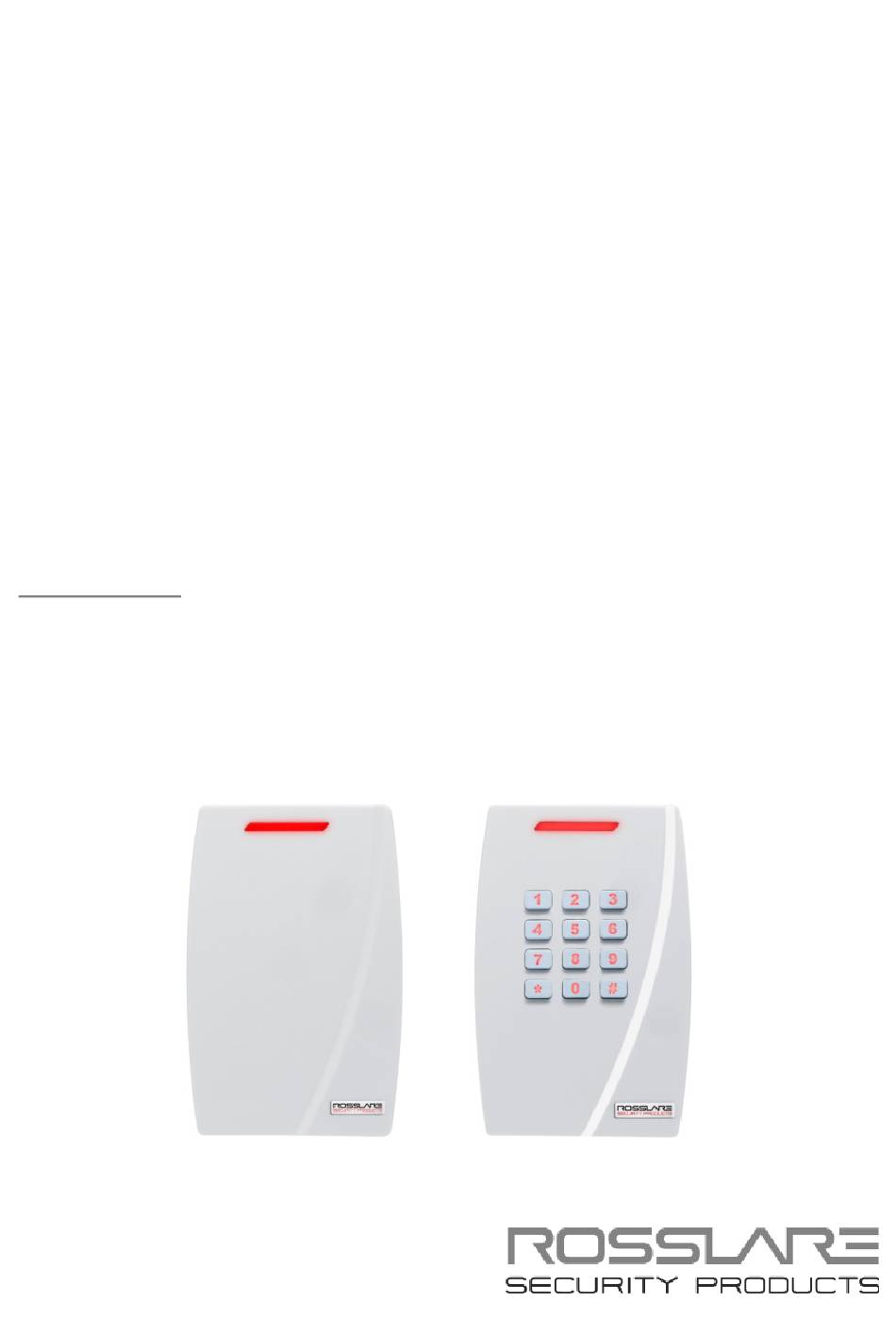

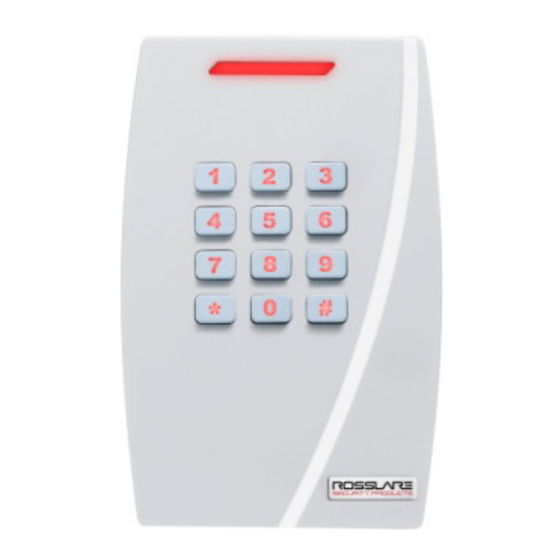

- Page 1 AY-W6x50 Family ® MIFARE Contactless Smart Card / PIN Readers Installation and Programming Manual Models: AY-W6250 AY-W6350 AY-W6250 AY-W6350...
- Page 2 ROSSLARE. ROSSLARE reserves the right to revise and change this document at any time, without being obliged to announce such revisions or changes beforehand or after the fact.
-
Page 3: Table Of Contents
Exiting Programming Mode ........... 17 Selecting Keypad Transmission Format ........18 Keypad Transmission Format Option Number ......19 5.7.1 Single Key, Wiegand 6-Bit (Rosslare Format) ......... 19 5.7.2 Single Key, Wiegand 6-Bit, Nibble & Parities ......... 20 5.7.3 Single Key, Wiegand 8-Bit, Nibbles Complemented ...... 20 5.7.4... - Page 4 Table of Contents 5.7.6 6 Keys BCD and Parity Bits, Wiegand 26-Bit........22 5.7.7 Single Key, 3x4 Matrix Keypad (MD-P64) ........22 5.7.8 1 to 8 Keys BCD, Clock & Data ............. 23 Selecting the Proximity Card Transmission Format ....23 Card Transmission Format Option Number ......
- Page 5 List of Figures List of Figures Figure 1: Removing Back Cover ............... 11 Figure 2: Connecting the Reader to an Access Control System ......13 AY-W6x50 Family Installation and Programming Manual...
- Page 6 List of Tables List of Tables Table 1: Wiring Colors ..................12 Table 2: Programming Menu ................16 Table 3: Keypad Transmission Formats ............19 AY-W6x50 Family Installation and Programming Manual...
- Page 7 ROSSLARE exclusive warranty and liability is limited to the warranty and liability statement provided in an appendix at the end of this document. This manual describes the maximum configuration of the system with the ...
-
Page 8: Introduction
Introduction Introduction ® The AY-W6250 and AY-W6350 series are metallic MIFARE contactless smart card/PIN readers for indoor and outdoor use. The units read the MIFARE card serial number (CSN) and transmit in Wiegand, Clock & Data or Wiegand Card + PIN formats. In addition, the AY-W6350 comes with a backlit keypad that can be programmed to output eight different data formats. -
Page 9: Supported Rfid Transponders
32 bits out of the 64 bits can be transmitted. Box Content Before beginning, verify that all of the following is in the box; if anything is missing, please contact your nearest Rosslare office. One AY-W6x50 reader Installation kit including: ... -
Page 10: Technical Specifications
125 x 83 x 29.5 mm (4.9 x 3.3 x 1.2 in.) Weight 230 g (8.1 oz) * Measured using a Rosslare proximity card or equivalent. Range also depends on electrical environment and proximity to metal. AY-W6x50 Family Installation and Programming Manual... -
Page 11: Installation
Installation Installation Installation of an RFID reader adjacent to metallic surfaces might alter the reader’s specifications. To diminish this interference, use a plastic spacer when mounting the reader. The AY-W6250 and AY-W6350 packs include everything needed to install and operate the smart card sector readers. Mount the reader on the required surface and connect it to the access control system. -
Page 12: Wiring Instructions
Installation 6. Route the interface cable from the reader to the controller. A linear type power supply is recommended. The AY-W6350 fits US and UK gang boxes for easy installment. The reader can also be mounted using strong epoxy glue. After application, the reader should be firmly held in place until the glue dries. - Page 13 Installation Figure 2: Connecting the Reader to an Access Control System 4. If the tamper output is being utilized, connect the purple wire to the correct input on the controller. 5. Trim and cover all unused conductors. • The individual wires from the reader are color-coded according the Wiegand standard.
-
Page 14: How To Use The Reader
How to Use the Reader How to Use the Reader After the reader has been mounted, connected to an access control system, and configured, it is ready for use. Normal Operation The reader’s normal operation is in CSN mode, in which it scans every card and sends each card's serial number to the access control system. -
Page 15: Keypad Programming Instructions (Ay-W6350)
Keypad Programming Instructions (AY-W6350) Keypad Programming Instructions (AY-W6350) Transmit Mode When the AY-W6350 is in Transmit mode, it is ready to read MIFARE CSN or entered PIN code data. When the reader is in Transmit mode, the Transmit LED is red. When a card or PIN entry is being transmitted, the Transmit LED flashes green. -
Page 16: Programming Menu
Menu Description Default Selecting Keypad Transmission Format 1 – Single Key, Wiegand 6-Bit (Rosslare Format, Default) 2 – Single Key, Wiegand 6-Bit with Nibble + Parity Bits 3 – Single Key, Wiegand 8-Bit, Nibbles Complemented 4 – 4 Keys Binary + Facility Code, Wiegand 26-Bit 5 –... -
Page 17: Entering Programming Mode
Keypad Programming Instructions (AY-W6350) Entering Programming Mode To enter Programming mode: 1. Press # four times. The Transmit LED flashes orange. Orange 2. Enter your Programming code. 3. If the Programming code is valid, the program Orange LED turns orange and the AY-W6350 enters Programming mode. -
Page 18: Selecting Keypad Transmission Format
Keypad Programming Instructions (AY-W6350) Selecting Keypad Transmission Format The AY-W6350 has eight different keypad transmission selectable formats (see Section 5.7). To select the key pad transmission format: 1. Enter Programming mode. Orange 2. Press 1 to enter Menu 1. The Transmit LED flashes green. Green 3. -
Page 19: Keypad Transmission Format Option Number
Table 3: Keypad Transmission Formats Keypad Transmission Format Option Number Single Key, Wiegand 6-Bit (Rosslare Format) Single Key, Wiegand 6-Bit with Nibble + Parity Bits Single Key, Wiegand 8-Bit, Nibbles Complemented 4 Keys Binary + Facility Code, Wiegand 26-Bit... -
Page 20: Single Key, Wiegand 6-Bit, Nibble & Parities
Keypad Programming Instructions (AY-W6350) 5.7.2 Single Key, Wiegand 6-Bit, Nibble & Parities Each key press immediately sends 4 bits with 2 parity bits added – even parity for the first 3 bits and odd parity for the last 3 bits. 0 = 0 0000 1 6 = 1 0110 0 1 = 0 0001 0... -
Page 21: To 5 Keys + Facility Code, Wiegand 26-Bit
Keypad Programming Instructions (AY-W6350) If the entry of the 4-digit keypad PIN code is disrupted and no number key is pressed within 5 seconds, the keypad clears the PIN code entry buffer, generates a beep and is ready to receive a new 4-digit keypad PIN code. -
Page 22: Keys Bcd And Parity Bits, Wiegand 26-Bit
Keypad Programming Instructions (AY-W6350) Where: EP = Even parity for first 12 bits OP = Odd parity for last 12 bits F = 8-Bit Facility code A = 24-Bit code generated from keyboard 5.7.6 6 Keys BCD and Parity Bits, Wiegand 26-Bit This option sends a buffer of 6 keys, adds parity, and sends a 26-bit BCD message. -
Page 23: To 8 Keys Bcd, Clock & Data
Keypad Programming Instructions (AY-W6350) 5.7.8 1 to 8 Keys BCD, Clock & Data This option buffers up to 8 keys and outputs keypad data, much like standard Clock and Data card output. The keypad PIN code can be one to eight digits in length. The PIN code length is selected while programming the reader for Option 8. -
Page 24: Card Transmission Format Option Number
Keypad Programming Instructions (AY-W6350) If an incorrect option number is entered, the reader returns to Transmit mode and the keypad transmission format remains unchanged. Card Transmission Format Option Number Keypad Transmission Format Option Number Wiegand 26-Bit (default) Clock & Data Wiegand Card and PIN Wiegand 26-Bit with Facility Code Output Wiegand 32-Bit... -
Page 25: Clock And Data
Keypad Programming Instructions (AY-W6350) 5.9.2 Clock and Data In this mode, 4 bytes of card serial number are transmitted in Clock&Data format. 5.9.3 Wiegand Card + PIN Transmission Format This unique mode is intended to let host controllers get card and keypad data simultaneously. -
Page 26: Wiegand 32-Bit
Keypad Programming Instructions (AY-W6350) 5.9.5 Wiegand 32-Bit In this mode, 4 bytes of card serial number are transmitted in Wiegand 32-bit format. No parity bits are added. AAAA AAAA BBBB BBBB CCCC CCCC DDDD DDDD Where: A = 4 (MSB) byte of card serial number B = 3 byte of card serial number C = 2... -
Page 27: Wiegand 40-Bit And Checksum
Keypad Programming Instructions (AY-W6350) Where: EP = Even parity for first 16 data bits OP = Odd parity for last 16 data bits A = 4 (MSB) byte of card serial number B = 3 byte of card serial number C = 2 byte of card serial number D = 1... -
Page 28: Changing The Facility Code
Keypad Programming Instructions (AY-W6350) You hear three beeps. The system returns to Transmit mode. • The Default Programming code is 1234. • The Programming code cannot be erased, meaning the code 0000 is not valid and does not erase the Programming code 5.11 Changing the Facility Code To change the Facility code:... -
Page 29: Return To Factory Default Settings
Keypad Programming Instructions (AY-W6350) 5.12 Return to Factory Default Settings You must be very careful before using this command! Doing so erases the entire memory that includes all user and special codes, and returns all codes to their factory default settings. To return to factory default settings: 1. -
Page 30: Limited Warranty
The full ROSSLARE Limited Warranty Statement is available in the Quick Links section on the ROSSLARE website at www.rosslaresecurity.com. Rosslare considers any use of this product as agreement to the Warranty Terms even if you do not review them. AY-W6x50 Family Installation and Programming Manual... - Page 31 +86 755 8610 6842 Fax: +86 755 8610 6101 Rosslare Security Products, Inc. support.cn@rosslaresecurity.com Southlake, TX, USA Toll Free: +1-866-632-1101 India Local: +1-817-305-0006 Rosslare Electronics India Pvt Ltd. Fax: +1-817-305-0069 Tel/Fax: +91 20 40147830 support.na@rosslaresecurity.com Mobile: +91 9975768824 Europe sales.in@rosslaresecurity.com Rosslare Israel Ltd.
