- Page 1 Long range Multi Reader AY-Z12A Installation Guide December 2010...
-
Page 3: Table Of Contents
Table of Contents 1. Introduction ..............3 2. Technical Specifications ..........4 3. Installation ..............5 3.1 The Installation Kit............ 5 3.2 Installing the AY-Z12A Long Range Reader: .... 5 3.2.1. Single Reader Installation ..........6 3.2.2. Multiple Reader Installation ..........7 3.2.3. -
Page 4: Introduction

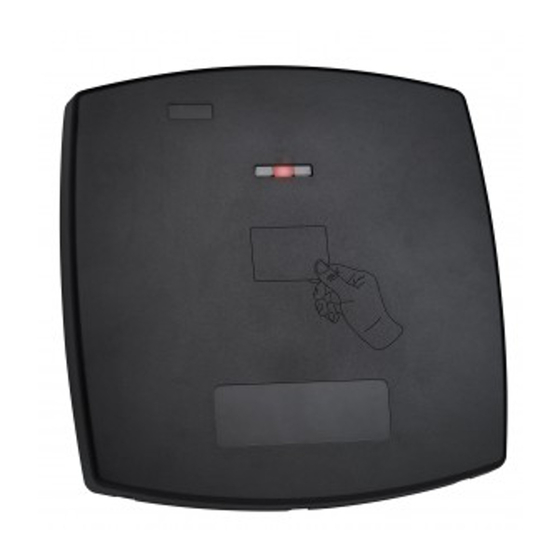

Introduction 1. Introduction The AY-Z12A Long-range Reader is an RFID proximity card reader, utilized with access control systems. The reader can function in one of two scenarios Single reader installation (default) · Multiple readers installation · Figure 1 The AY-Z12A Long-Range Reader... -
Page 5: Technical Specifications
Weight 2.35 Lbs. (1066g) * For maximum range set the reader as a single reader, use Rosslare’s AT-R14 clamshell proximity card, as well as a 16 V power supply and ensure that the installation is as far possible from any additional electrical devices and that it is not in proximity to any metal. -
Page 6: Installation
· Installing the AY-Z12A Long Range Reader: Figure 2: Removing the Top Cover Figure 2 shows the front view of the AY-Z12A Long-Range Reader. When installing the reader, you must remove the snap-off cover to access the screw holes. Page 5... -
Page 7: Single Reader Installation
Figure 3: Installing the unit with the MP-Z02 spacer 3.2.1. Single Reader Installation The AY-Z12A Long-Range Reader is designed to function with the best performance when installed isolated from other AY-Z12A long range readers at least in a range of 2-4 meters, the reader is therefor preconfigured as a single installation reader. -
Page 8: Multiple Reader Installation
MP- Z02 spacer. 5. Route the interface cable from the Reader to the Controller. A linear type power supply is recommended. Page 7 AY-Z12A Installation Manual... -
Page 9: Wiring And Configuration Instructions
Follow the wiring and configuration instructions below based on the installation type you are utilizing. Wiring instructions The AY-Z12A Reader is supplied with an 18” pigtail, comprising a 6- conductor cable. To connect the Reader to the Controller: 1. Prepare the Reader cable by cutting its jacket back 1¼” and strip the insulation from the wires, ½”. -
Page 10: Single Reader Configuration
7. The Reader’s LED starts flashing continuously and the Buzzer sounds. 8. Turn the reader power OFF 9. Disconnect the Data 1 wire (White cable) from the Ground. 10. The Reader configuration for single reader installation is complete. Page 9 AY-Z12A Installation Manual... -
Page 11: Multiple Reader Configuration
9. Disconnect the Data 1 wire (White cable) from the Ground. 10. The Reader configuration for multiple reader installation is complete. You can now connect two or three readers within a 2-4 meter range from one another. AY-Z12A Installation Manual Page 10... -
Page 12: Operation Instructions
Limited WarrantyOperation Instructions 5. Operation Instructions Test the AY-Z12A long-range reader after wiring it to a power supply and a Controller. To test the Reader: 1. Power up the Reader. The LED flashes on power up, and the Beeper sounds twice, at which point it begins an auto-... -
Page 13: Appendix A. Limited Warranty
Months). Warranty Remedy Coverage In the event of a breach of warranty, ROSSLARE will credit Customer with the price of the Product paid by Customer, provided that the warranty claim is delivered to ROSSLARE by the Customer during the warranty period in accordance with the terms of this warranty. -
Page 14: Limited Warranty
This warranty shall not extend to any ancillary equipment not furnished by ROSSLARE, which is attached to or used in conjunction with a Product, nor to any Product that is used with any ancillary equipment, which is not furnished by ROSSLARE. -
Page 15: Appendix B. Technical Support
Technical Support Appendix B. Technical Support Asia Pacific, Middle East, Africa Rosslare Security Products Headquarters 905-912 Wing Fat Industrial Bldg, 12 Wang Tai Road, Kowloon Bay Hong Kong Tel: +852 2795-5630 Fax: +852 2795-1508 support.apac@rosslaresecurity.com E-mail: United States and Canada... - Page 17 www.rosslaresecurity.com...
