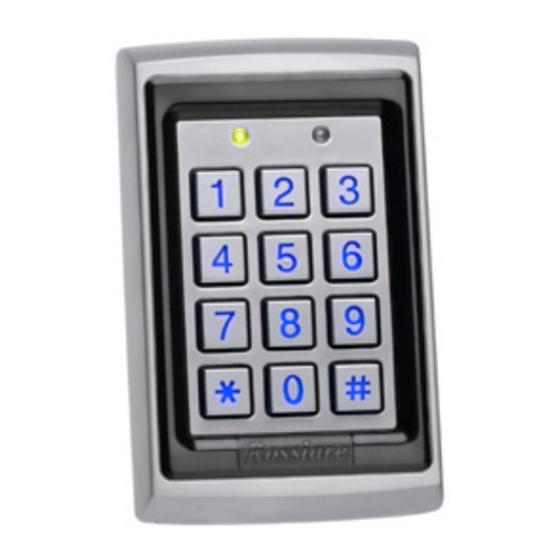

- Page 1 AY-Q6x60 Series Anti-Vandal MIFARE® Contactless Smart Card / Sector Readers Installation and User Manual Models: AY-Q6260 AY-Q6360 AY-Q6260 AY-Q6360...
- Page 2 ROSSLARE. ROSSLARE reserves the right to revise and change this document at any time, without being obliged to announce such revisions or changes beforehand or after the fact.
-
Page 3: Table Of Contents
Table of Contents Table of Contents Introduction ................8 Supported RFID Transponders ..........9 Box Content ................9 Installation ................10 Mounting .................. 10 Wiring ..................11 Configuring the Reader ............13 Operation Modes ..............13 Configuration Card Structure........... 14 Configuring Settings .............. - Page 4 Table of Contents 5.5.1 Keypad Transmission Formats ............23 Selecting Proximity Card Transmission Format ..... 28 5.6.1 Proximity Card Transmission Formats ..........29 Changing the Programming Code ........... 32 Changing the Facility Code ............32 Setting the Backlight Behavior ..........33 5.10 Return to Factory Default Settings ..........
- Page 5 List of Figures List of Figures Figure 1: Drilling Mounting Holes ...............10 AY-Q6x60 Series Installation and Programming Manual...
- Page 6 List of Tables List of Tables Table 1: Wiring the Reader to the Controller............11 Table 2: Programming Menu ................20 AY-Q6x60 Series Installation and Programming Manual...
- Page 7 ROSSLARE exclusive warranty and liability is limited to the warranty and liability statement provided in an appendix at the end of this document.
-
Page 8: Introduction
The configuration card is a regular MIFARE 1K card, which can be pre-programmed using Rosslare’s CP-R25 (or CP-R26) desktop MIFARE programmer, together with its associated software the AS-B01. -
Page 9: Supported Rfid Transponders
MIFARE DESFire (card serial number only) Box Content Before beginning, verify that all of the following is in the box. If anything is missing, please report the discrepancy to your nearest Rosslare office. 1 reader 1 manual ... -
Page 10: Installation
Installation Installation Installation of an RFID reader adjacent to metallic surfaces might alter the reader’s specifications. To diminish this interference, use a plastic spacer when mounting the reader. Mounting Before starting, select the location to mount the unit. This location should be at shoulder height. -
Page 11: Wiring
Installation 5. Drill a 10-mm (7/16”) hole for the cable. If the surface is metal, place a grommet or electrical tape around the edge of the hole. 6. Insert the unit’s cable wire into the cable hole and wire the unit as described in Section 2.2. - Page 12 Installation 2. Prepare the controller cable by cutting the cable jacket back 3.2 cm (1¼”) and stripping the wire 1.3 cm (½”). 3. Splice the reader’s pigtail wires to the corresponding controller wires and cover each joint with insulating tape. 4.
-
Page 13: Configuring The Reader
Configuration and master cards make it possible to set up and adjust a reader's settings directly without connecting a remote computer and without removing the unit from its place. Rosslare’s CP-R25 (or CP-R26) desktop MIFARE card programmer together with its associated software AS-B01 must be used to create configuration cards. -
Page 14: Configuration Card Structure
Configuring the Reader The reader's operation mode is controlled by a configuration setting stored on the configuration card. All access information and locations for Secure mode operations are also controlled by configuration settings. In this mode, programming the reader via the keypad is not possible. -
Page 15: Configuration Procedure
Configuring the Reader Configuration Procedure It is recommended to configure the reader one time only, following installation and on its initial use. However, if needed, configuring the reader can be done anytime using the same procedure described below. To configure the reader: 1. -
Page 16: How To Use The Reader
How to Use the Reader How to Use the Reader After the reader has been mounted, connected to an access control system, and configured, it is ready for use. Normal Operation Turn on the reader. The LED turns red. If the reader has not yet been configured, the reader can only read the CSN. -
Page 17: Manual Led And Buzzer Control
How to Use the Reader Manual LED and Buzzer Control LED and buzzer behavior depend upon the reader firmware. For example, three beeps on reset and successful configuration, or one short beep and a flashing LED upon card transmission. However, it is possible that the host control panel, to which the reader is connected, may control the LED, the buzzer, or both. -
Page 18: Optical Back Tamper
How to Use the Reader Optical Back Tamper The AY-Q6260 and AY-Q6360 includes an optical back tampering mechanism which detects all attempts to dismantle the unit or remove it from the wall. The status of the tamper mechanism is indicated by the purple Tamper control wire. -
Page 19: Programming
Programming Programming Programming applies to the AY-Q6360 model only. Standby Mode When the AY-Q6360 is in Standby mode, it is ready to read MIFARE CSN or entered PIN code data. When the reader is in Standby mode, the left LED is red and the right LED is off. - Page 20 Menu Description Default Selecting Keypad Transmission Format 1 – Single Key, Wiegand 6-Bit (Rosslare Format, Default) 2 – Single Key, Wiegand 6-Bit with Nibble + Parity Bits 3 – Single Key, Wiegand 8-Bit, Nibbles Complemented 4 – 4 Keys Binary + Facility Code, Wiegand 26-Bit 5 –...
-
Page 21: Entering Programming Mode
Programming Entering Programming Mode To reach the Programming Menu System, the unit must first be placed into Programming mode. • The factory default Programming code is 1234. • If a Programming code is not entered within 30 seconds, the unit returns to Standby mode. -
Page 22: Selecting Keypad Transmission Format
2. Press 1 to enter Menu 1. The left LED turns red. Red Green 3. Enter one of the following codes: 1 – Single Key, Wiegand 6-Bit (Rosslare Format) (default) 2 – Single Key, Wiegand 6-Bit with Nibble + Parity Bits ... -
Page 23: Keypad Transmission Formats
5.5.1 Keypad Transmission Formats Option 1: Single Key, Wiegand 6-Bit (Rosslare Format) Each key press immediately sends 4 bits with 2 parity bits added – even parity for the first 3 bits and odd parity for the last 3 bits. - Page 24 Programming 0 = 11110000 6 = 10010110 1 = 11100001 7 = 10000111 2 = 11010010 8 = 01111000 3 = 11000011 9 = 01101001 4 = 10110100 * = 01011010 = "A" in Hexadecimal 5 = 10100101 # = 01001011 = "B" in Hexadecimal Option 4: 4 Keys Binary + Facility Code, Wiegand 26-Bit This option buffers 4 keys and outputs keypad data with a 3-digit Facility code like a standard 26-bit card output.
- Page 25 Programming (EP) FFFF FFFF AAAA AAAA AAAA AAAA (OP) Where: EP = Even parity for first 12 bits OP = Odd parity for last 12 bits F = 8-Bit Facility code A = 24-Bit code generated from keyboard Option 5: 1 to 5 Keys + Facility Code, Wiegand 26-Bit This option buffers up to 5 keys and outputs keypad data with a Facility code like a 26-Bit card output.
- Page 26 Programming Where: EP = Even parity for first 12 bits OP = Odd parity for last 12 bits F = 8-Bit Facility code A = 24-Bit code generated from keyboard Option 6: 6 Keys BCD and Parity Bits, Wiegand 26-Bit This option sends a buffer of 6 keys, adds parity, and sends a 26-Bit BCD message.
- Page 27 Programming Option 8: 1 to 8 Keys BCD, Clock & Data This option buffers up to 8 keys and outputs keypad data, much like standard Clock and Data card output. The keypad PIN code can be one to eight digits in length. The PIN code length is selected while programming the reader for Option 8.
-
Page 28: Selecting Proximity Card Transmission Format
1. Enter Programming mode. Green 2. Press 2 to enter Menu 2. The left LED turns red. Red Green 3. Enter the appropriate option number for the Rosslare proximity card transmission format: 1 – Wiegand 26-Bit 2 – Clock & Data ... -
Page 29: Proximity Card Transmission Formats
Programming 5.6.1 Proximity Card Transmission Formats Option 1: Wiegand 26-Bit In this mode, 3 bytes of card serial number are transmitted in Wiegand 26-Bit format. Two parity bits are added. An even parity bit is sent first, followed by three bytes card data than followed by odd parity bit. - Page 30 Programming Option 4: Wiegand 26-Bit and Facility Code In this mode, 1 byte Facility code followed by 2 bytes of the card's serial number are transmitted in Wiegand 26-Bit format. Two parity bits are added. An even parity bit is sent first, followed by one Facility code byte then followed by two bytes card serial number ending with an odd parity bit.
- Page 31 Programming Where: D = 1 (LSB) byte of card serial number C = 2 byte of card serial number B = 3 byte of card serial number A = 4 (MSB) byte of card serial number Option 7: Wiegand 34-Bit In this mode, 4 bytes of card serial number are transmitted in Wiegand 34-bit format.
-
Page 32: Changing The Programming Code
Programming Changing the Programming Code • The Default Programming code is 1234 • Programming code cannot be erased, meaning the code 0000 is not valid and does not erase the Programming code To change the Programming code: 1. Enter Programming mode. Green 2. -
Page 33: Setting The Backlight Behavior
Programming Setting the Backlight Behavior To set the backlight behavior: 1. Enter Programming mode. Green 2. Press 6 to enter Menu 6. The left LED turns red. Red Green 3. Enter one of the following codes: 0 – Always off ... -
Page 34: Replacing A Lost Programming Code
Programming 3. Enter your 4-digit Programming code. If the Programming code is valid, all memory is erased. You hear three beeps and the reader returns to Standby mode. If the Programming code is invalid, you hear a long beep and the reader returns to Standby mode without erasing the memory of the reader 5.11... -
Page 35: Technical Specifications
Keypad Transmit Formats AY-Q6260: None AY-Q6360: User programmable Transmission Formats Wiegand and Clock & Data * Measured using a Rosslare proximity card or equivalent. Range also depends on electrical environment and proximity to metal AY-Q6x60 Series Installation and Programming Manual... - Page 36 Technical Specifications Environmental Characteristics Operating Temp. Range -31°C to 63°C (-25°F to145°F) Operating Humidity Range 0 to 95% (non-condensing) Operating Environment Suitable for outdoor use (IP65 compliant), water resistant Physical Characteristics Height x Width x Depth 125 x 83 x 29.5 mm (4.9 x 3.3 x 1.2 in.) Weight 480 g (1.1 lb) AY-Q6x60 Series Installation and Programming Manual...
-
Page 37: Limited Warranty
The full ROSSLARE Limited Warranty Statement is available in the Quick Links section on the ROSSLARE website at www.rosslaresecurity.com. Rosslare considers any use of this product as agreement to the Warranty Terms even if you do not review them. AY-Q6x60 Series Installation and Programming Manual... - Page 38 United States and Tel: +86-755-8610 6842 Canada Fax: +86-755-8610 6101 support.cn@rosslaresecurity.com Rosslare Security Products, Inc. India Southlake, TX, USA Toll Free: +1-866-632-1101 Rosslare Electronics India Pvt Ltd. Local: +1-817-305-0006 Tel/Fax: +91-20-40147830 Fax: +1-817-305-0069 Mobile: +91-9975768824 support.na@rosslaresecurity.com sales.in@rosslaresecurity.com Europe Rosslare Israel Ltd.
