Hardware ports, switches and LEDs DeviceNet

9.1

Device labeling

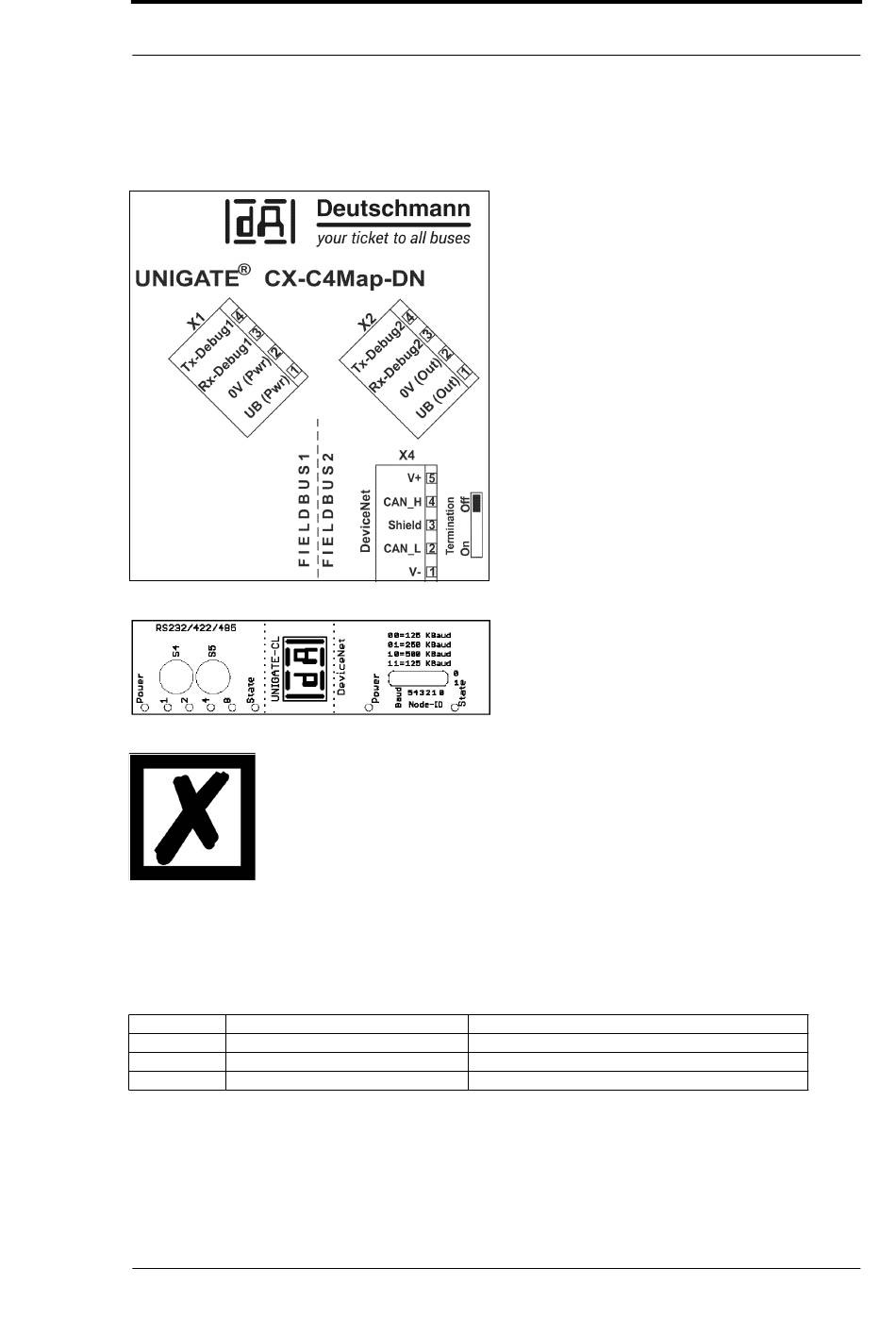

Picture 1: Terminal labeling and termination
Picture 2: Front panel: Rotary switches, DIP-Switch and LEDs
In case the front panel should pop out it does not affect the device's
function or quality. It can be put in again without problems.
9.1.1

Connectors

9.1.1.1

Connector service interface

The service RS232 interface is available on the plug concealed on the top of the device.
Pin assignment (3-pin screw-type plug connector)
Pin No. Name
1 Rx 232
2 Tx 232
3 AP-GND
25.9.20 Fieldbus-Gateway UNIGATE
Hardware ports, switches and LEDs DeviceNet
Function
Receive signal
Transmit signal
Application Ground
®
CX C4Map - DeviceNet V. 1.0 29
