Note
The battery has an adhesive tape on its shrinking tube. This tape enables the system integrator to adequately position the battery in the
system case. The functionality of adhesive tape is time limited if exposed to higher temperatures and harsh or vibrant environment. The
system integrator must ensure a stable position in this case.
5.2

High Definition Audio Header

The conga-PA5 provides an HD audio header (X6). The signals are routed from an HD audio codec (Cirrus Logic CS4207). Optionally, this
header can provide differential Line output (L1) and S/PDIF input.

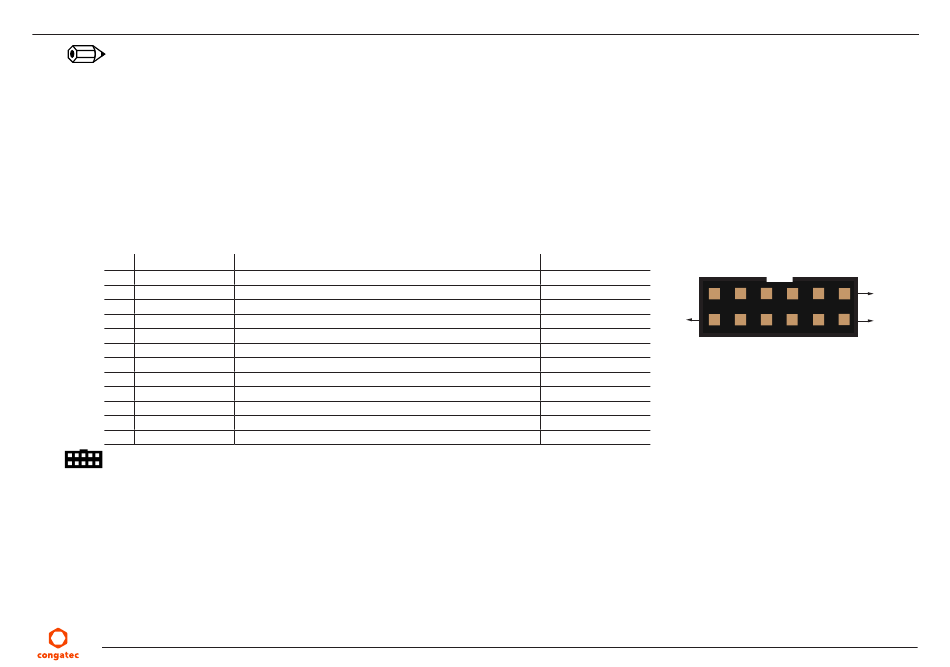

Table 14 X6 Pinout Description
Pin Default Signal
1 MIC_L
2 GND_HDA
3 MIC_R
4 +5V_AMP
5 MIC_JD
6 HP_R
7 GND_HDA
8 HP_L
9 HP_JD
10 +5V
11 GND
12 S/PDIF
Connector Type
X6: 6x2 pins, 2.0 mm pitch, box header
Copyright © 2017 congatec GmbH
Description
Analog Microphone Input - Left Channel
Audio Ground
Analog Microphone Input - Right Channel
+5V Power Supply (for external speaker amplifier; max. 500mA)
Microphone Jack Detection
Headphone Line Out - Right Channel
Audio Ground
Headphone Line Out - Left Channel
Headphone Jack Detection
+5V Power Supply (for S/PDIF optical transmitter)
Digital Ground for S/PDIF
S/PDIF Output (3.3V)
Optional Signal
Pin 12
Line Out L1-
Line Out L1+
S/PDIF Input (3.3V)
PA50m112
X6
Pin 1
Pin 2
