5.9

mPCIe / mSATA Card Slot

The conga-PA5 provides an mPCIe / mSATA card slot (X10) for a full-size card. A multiplexer detects the type of the connected card via the
signal detect pin 43 and sends the corresponding signals to the socket (X10).

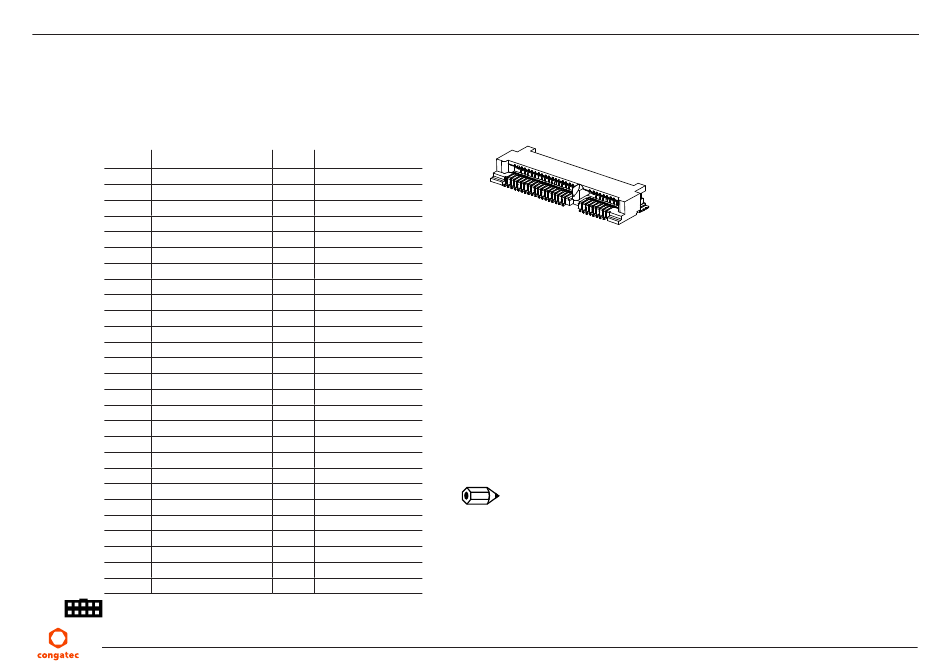

Table 23 X10 Pinout Description
Pin Signal
1 WAKE#
3 N.C.
5 N.C.
7 CLKREQ#
9 GND
11 REFCLK-
13 REFCLK+
15 GND
17 N.C.
19 N.C.
21 GND
23 PERn0/SATA_RX1+
25 PERp0/SATA_RX1-
27 GND
29 GND
31 PETn0/SATA_TX1-
33 PETp0/SATA_TX1+
35 GND
37 GND
39 +3.3V
41 +3.3V
43 mSATA_mPCIe_detect
45 N.C
47 N.C
49 N.C
51 N.C.
53 GND
Connector Type
X10: mPCIe / mSATA card slot
Copyright © 2017 congatec GmbH
Pin Signal
2 +3.3V
4 GND
6 +1.5V
8 N.C.
10 N.C.
12 N.C.
14 N.C.
16 N.C.
18 GND
20 W_DISABLE#
22 PERST#
24 +3.3V
26 GND
28 +1.5V
30 SMB_CLK
32 SMB_DATA
34 GND
36 USB_D-
38 USB_D+
40 GND
42 N.C
44 LED_WLAN#
46 N.C
48 +1.5V
50 GND
52 +3.3V
54 GND
X10
Note
Pin 43 of mPCIe cards must be connected to ground.
Pin 43 of mSATA cards must NOT be connected to ground.
An mPCIe extender should be used for mPCIe half-size cards.
