Installation
3.
Installation
3.1
Mounting the AYC-Ex5
Before starting, select the location to mount the AYC-Ex5. This
location should be at shoulder height.
For wall mounting, use the included mounting template as a
guide for drilling holes for mounting screws and wiring. For US
Gang Box mounting, no drilling is necessary.

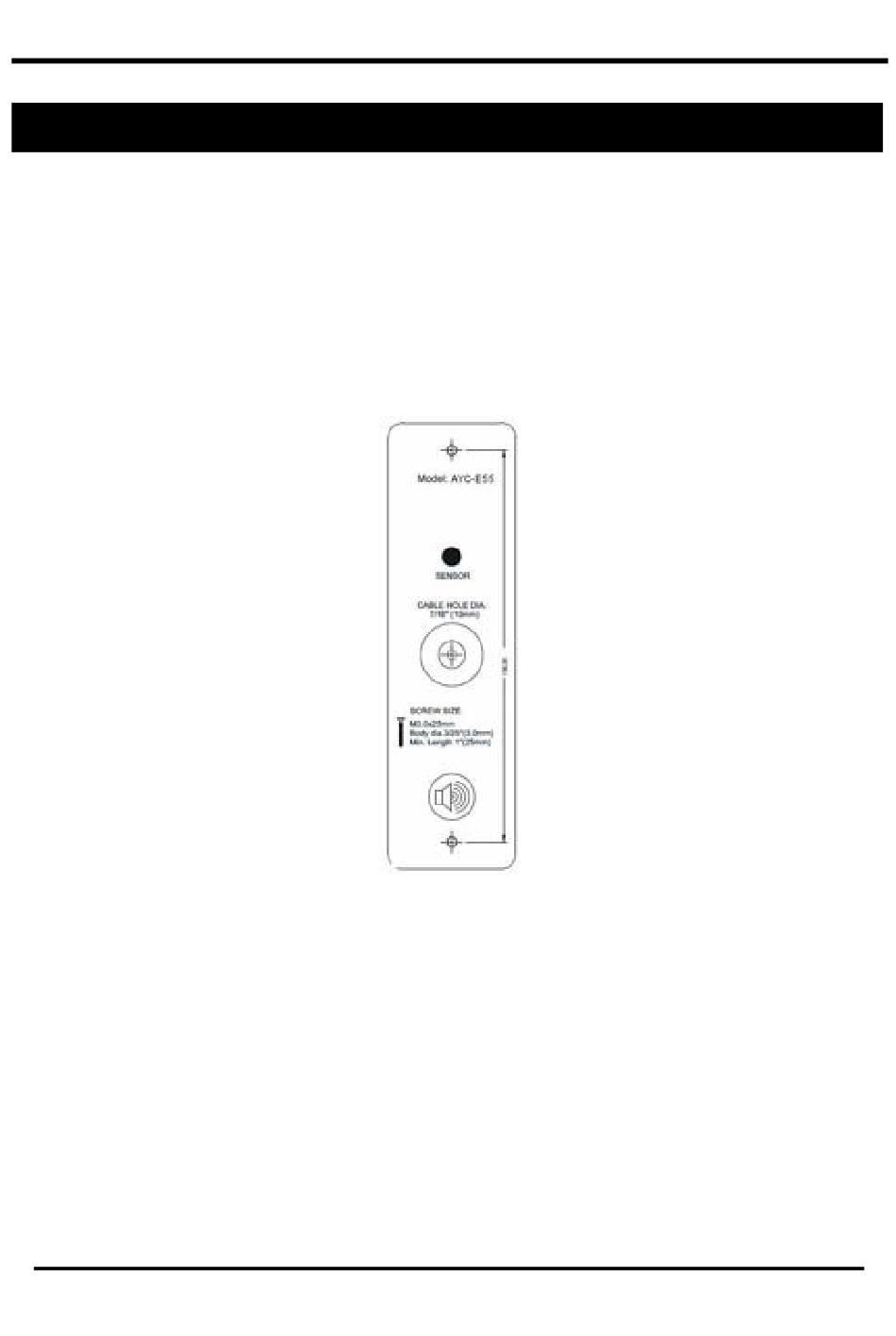

Figure 1 Drilling & Mounting Template
When the unit is used a reader, route the interface cable from the
AYC-Ex5 to the Controller. When the unit is used as a secured
controller, route the interface cable from the AYC-Ex5 to
Rosslares' secure application appurtenance. A linear type power
supply is recommended, when using the unit as a controller.
Screw the AYC-Ex5 to its mounting location or US gang box.
AYC-Ex5 family manual
Page 10
