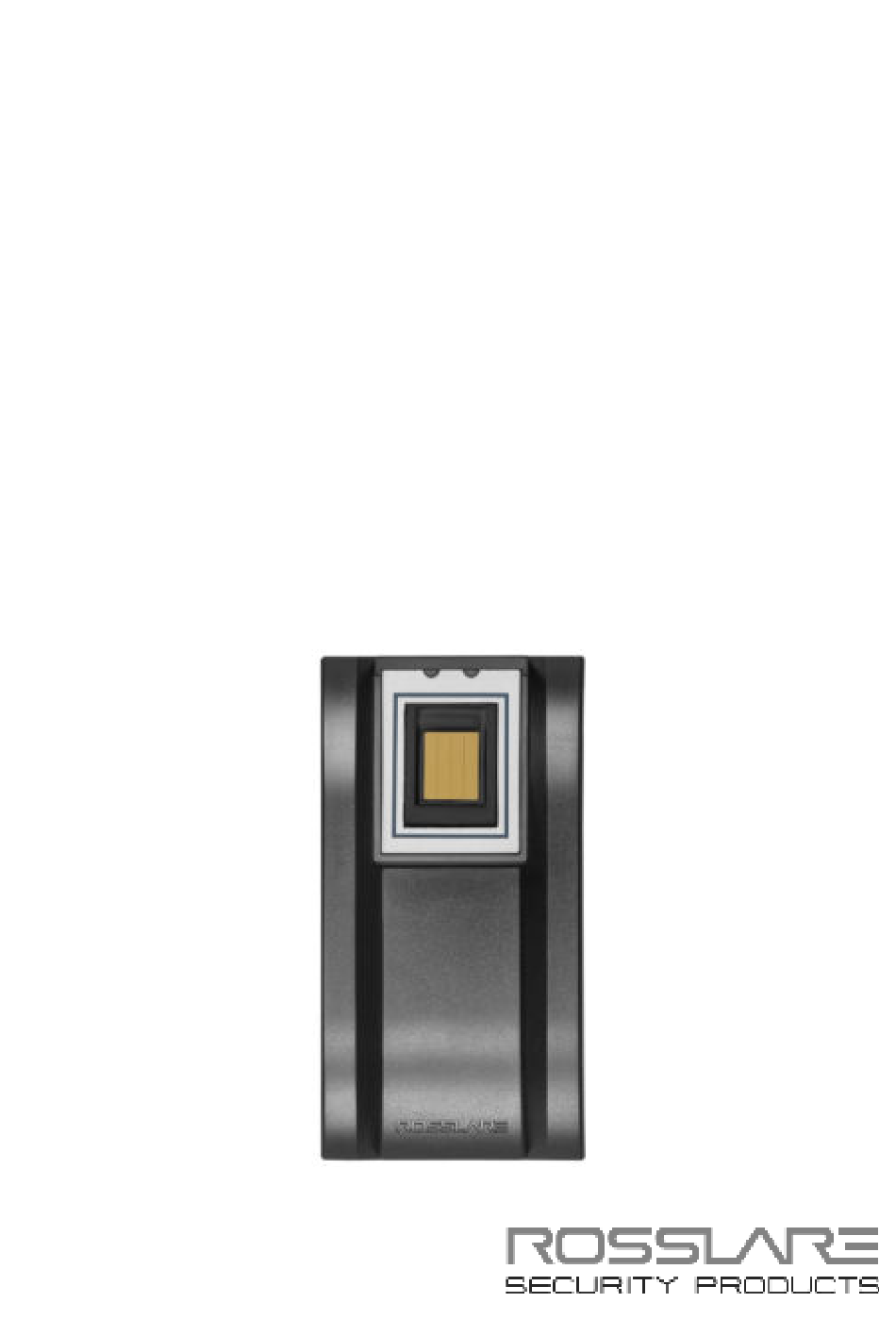

AYC-B7661
MIFARE Full-Finger Capacitive
Biometric Reader/Controller
Installation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AYC-B7661 and is the answer not in the manual?

Questions and answers

Related Manuals for Rosslare AYC-B7661

Summary of Contents for Rosslare AYC-B7661

  • Page 1 AYC-B7661 MIFARE Full-Finger Capacitive Biometric Reader/Controller Installation Manual...
  • Page 2 ROSSLARE. ROSSLARE reserves the right to revise and change this document at any time, without being obliged to announce such revisions or changes beforehand or after the fact.

  • Page 3: Table Of Contents

    Modes of Operation ..........26 Boot Mode ................26 Configuration Mode .............. 26 Standby Mode ..............26 Read Mode ................27 6.4.1 Valid Card or Fingerprint Read ............27 6.4.2 Invalid Card or Fingerprint Read............ 28 Lockout Mode ..............29 AYC-B7661 Installation Manual...
  • Page 4 Table of Contents Factory Defaults ..............29 User Spreadsheet ............30 Limited Warranty ............32 AYC-B7661 Installation Manual...
  • Page 5 List of Figures Figure 1: AYC-B7661 – Mounting Orientations ..........12 Figure 2: AYC-B7661 – Removing the Top Cover ..........13 Figure 3: Wiring Layout for Reader Configuration ........... 14 Figure 4: Controller Wiring – Using a Dual-Relay Secure Application Appurtenance ..................
  • Page 6 List of Tables List of Tables Table 1: Wiring the Reader to the Controller ........... 15 Table 2: Wiring the Unit as a Controller............16 AYC-B7661 Installation Manual...
  • Page 7  ROSSLARE exclusive warranty and liability is limited to the warranty and liability statement provided in an appendix at the end of this document. ...

  • Page 8: Introduction

    (1:1 and 1:N modes). It accepts up to 107 users. When used as a reader, the AYC-B7661 unit is compatible with most access controllers. These include the following Rosslare units: AC-015, AC-115, AC-020, AC-215, AC-225, AC-425, AC-525, and ExpansE™.

  • Page 9: Controller Features

    Introduction Controller Features If you connect the unit to a Rosslare PS-x25 secured power supply, it automatically functions as a controller. When using the AYC-B7661as a controller, it includes the following features:  MIFARE card reading followed by fingerprint reading (in 1:1 mode) ...

  • Page 10: Technical Specifications

    150 m (500 ft.) Maximum Controller Cable Distance (using 18-AWG shielded cable) Frequency 13.56 MHz Card Compatibility MIFARE ISO14443A-3 standard Measured using a Rosslare proximity card or equivalent. Range also depends on electrical environment and proximity to metal. AYC-B7661 Installation Manual...
  • Page 11 -25°C to 60°C (-13°F to 140°F) Operating Temperature Range Operating Humidity Range 30% to 85% (non-condensing) Physical Characteristics Dimensions (H x W x D) 100 x 54 x 42 mm (3.9 x 2.1 x 1.7 in.) 156 g (5.5 oz) Weight AYC-B7661 Installation Manual...

  • Page 12: Installation

    Installation Mounting Instructions Use the supplied drilling template for finding and drilling the correct holes (Figure 1). Figure 1: AYC-B7661 – Mounting Orientations Be sure to protect the fingerprint sensor when the reader is mounted outside. To mount the unit: 1.

  • Page 13: Figure 2: Ayc-B7661 - Removing The Top Cover

    6. At the bottom of the unit’s case, unscrew and remove the security screw (see Figure 2), using the supplied security hex-key screwdriver. Figure 2: AYC-B7661 – Removing the Top Cover 7. Carefully remove the snap-off front cover of the unit to reveal two screw holes.

  • Page 14: Wiring Instructions

    2. Prepare the controller cable by cutting the cable jacket back 3.2 cm (1¼”) and strip the wire 1.3 cm (½”). 3. Splice the unit’s pigtail wires to the corresponding controller wires (Table 1) and cover each connection. AYC-B7661 Installation Manual...

  • Page 15: Wiring The Unit As A Controller

    3.2.2 Wiring the Unit as a Controller If you connect the unit to a Rosslare PS-x25 secured power supply, it automatically functions as a controller. The AYC-B7661unit is connected with an 8-wire, 46-cm (18”) cable. To connect the unit as a controller: 1.
  • Page 16 This configuration is best for shielding the controller cable from external interference. 4. Trim and cover all conductors not used. 5. To connect the unit to the desired power supply option, refer to the relevant wiring diagrams that follow. AYC-B7661 Installation Manual...

  • Page 17: Figure 4: Controller Wiring - Using A Dual-Relay Secure Application

    Installation Figure 4 shows the wiring for the controller application using a dual- relay secure application appurtenance. Figure 4: Controller Wiring – Using a Dual-Relay Secure Application Appurtenance AYC-B7661 Installation Manual...

  • Page 18: Figure 5: Controller Wiring - Using The Internal Power

    Figure 5 shows the auxiliary output connection using the internal power. Figure 5: Controller Wiring – Using the Internal Power Figure 6 shows the auxiliary output connection using the external power. Figure 6: Controller Wiring – Using the External Power AYC-B7661 Installation Manual...

  • Page 19: Reader/Controller Configuration

    A short beep is generated and the two LEDs begin to blink in orange, as the reader goes into Configuration mode. 2. Within 30 seconds (while the reader is still in Configuration mode), present a valid Configuration card to the reader. AYC-B7661 Installation Manual...
  • Page 20 If the reader is already in use, then following a failed configuration, the reader returns to Standby mode and continues to work with its previous configuration settings. AYC-B7661 Installation Manual...

  • Page 21: Fingerprint Enrollment

     Delete   You need Rosslare's CP-R26 unit to generate these cards. Enrollment in 1:N Mode In 1:N mode, the unit identifies users according to their fingerprints only. Before enrolling users, it is recommended to create a list of all users and their record number (see Appendix A).
  • Page 22 Each time a card is presented the reader emits one beep. For example, to enroll a fingerprint to record number 32 present the +10 card three times followed by the +1 card twice. AYC-B7661 Installation Manual...

  • Page 23: Enrollment In 1:1 Mode

    5. Ask users to place their finger on the unit’s sensor once for first identification. When it successfully identifies the fingerprint, the unit emits one short beep. 6. Ask users to place their finger on the unit’s sensor once more. AYC-B7661 Installation Manual...
  • Page 24 Each time a card is presented the reader emits one beep. For example, to enroll a fingerprint to record number 32 present the +10 card three times followed by the +1 card twice. AYC-B7661 Installation Manual...

  • Page 25: Adding Id From A Card (Reader 1:N Mode)

    Adding ID from a Card (Reader 1:N Mode) After normal enrollment, the ID code sent to the controller is based on the Rosslare's algorithm. However, you can link the user card's ID to the template. In this case, the user's ID is sent to the controller instead of the previous ID.

  • Page 26: Modes Of Operation

    Modes of Operation Modes of Operation The AYC-B7661 has the following modes of operation:  Boot Mode (reset)  Configuration Mode  Standby Mode  Read Mode  Lockout Mode  Factory Defaults Boot Mode The reader enters Boot mode upon power up or upon restoration of power after a power failure where the loader runs separately from the main application.

  • Page 27: Read Mode

    2. The unit sends the data to the access controller, according to its configured transmission format. The unit then re-enters Standby mode. 6.4.1.2 In 1:1 Mode 1. While the unit is in Standby mode, users present their MIFARE smart card to the unit. AYC-B7661 Installation Manual...

  • Page 28: Invalid Card Or Fingerprint Read

    2. Based on the Lockout mode configuration (Section 6.5), several invalid reads within 30 seconds puts the unit into Lockout mode. If there are fewer than the preconfigured number of invalid card or fingerprint reads within 30 seconds, the unit enters Standby mode. AYC-B7661 Installation Manual...

  • Page 29: Lockout Mode

    Modes of Operation In Reader mode, when using Rosslare’s controllers and AxTrax™ software, the unit sends specific messages when failures occur. The AxTrax™ software can handle the following messages: • Fingerprint data reading from card failed • Fingerprint reading failed •...
  • Page 30 Modes of Operation User Spreadsheet User # User Name User # User Name AYC-B7661 Installation Manual...
  • Page 31 User Spreadsheet AYC-B7661 Installation Manual...
  • Page 32 The full ROSSLARE Limited Warranty Statement is available in the Quick Links section on the ROSSLARE website at www.rosslaresecurity.com. Rosslare considers any use of this product as agreement to the Warranty Terms even if you do not review them. AYC-B7661 Installation Manual...
  • Page 33 +86-755-8610 6842 Canada Fax: +86-755-8610 6101 Rosslare Security Products, Inc. support.cn@rosslaresecurity.com Southlake, TX, USA India Toll Free: +1-866-632-1101 Local: +1-817-305-0006 Rosslare Electronics India Pvt Ltd. Fax: +1-817-305-0069 Tel/Fax: +91-20-40147830 support.na@rosslaresecurity.com Mobile: +91-9975768824 sales.in@rosslaresecurity.com Europe Rosslare Israel Ltd. Rosh HaAyin, Israel...
