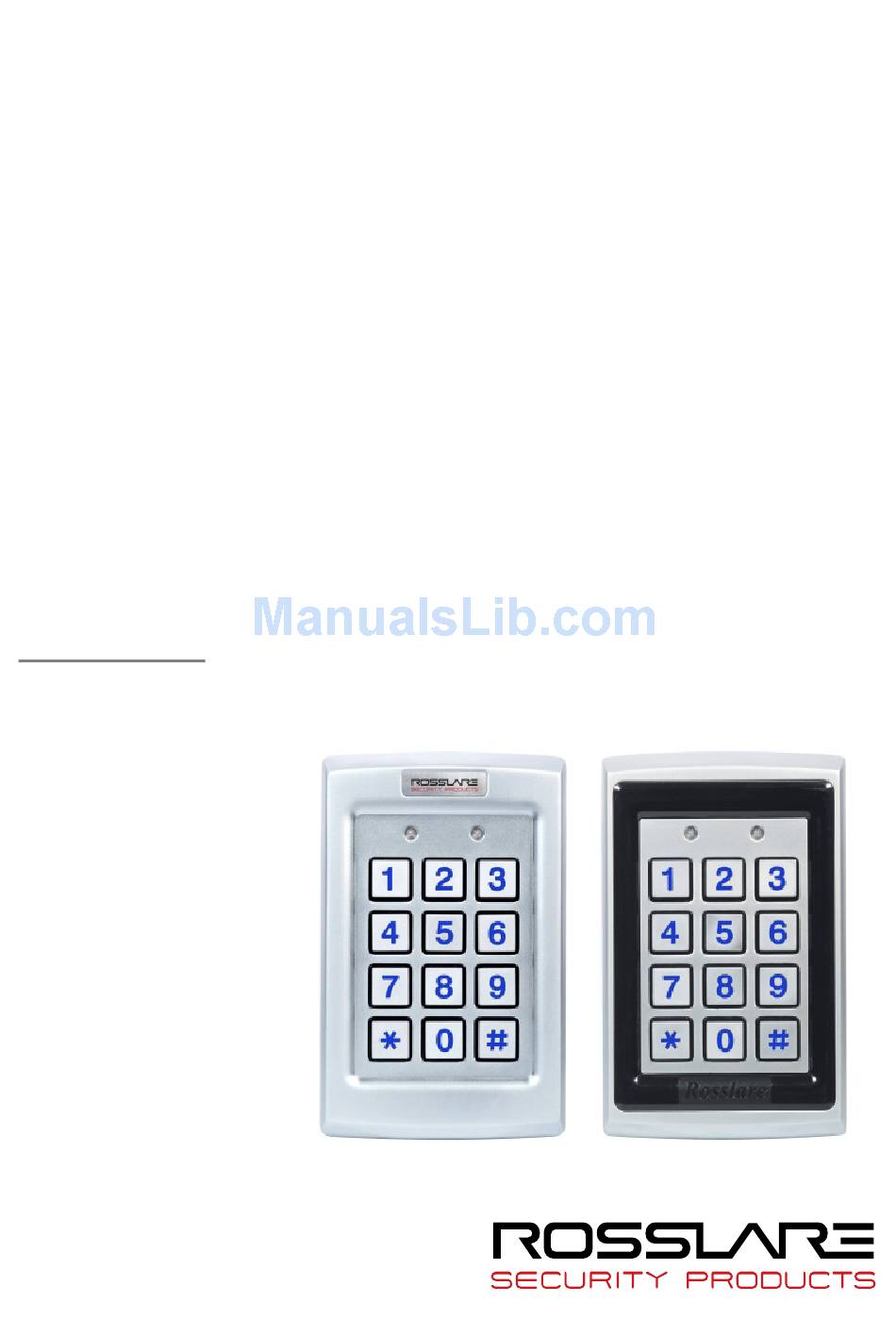

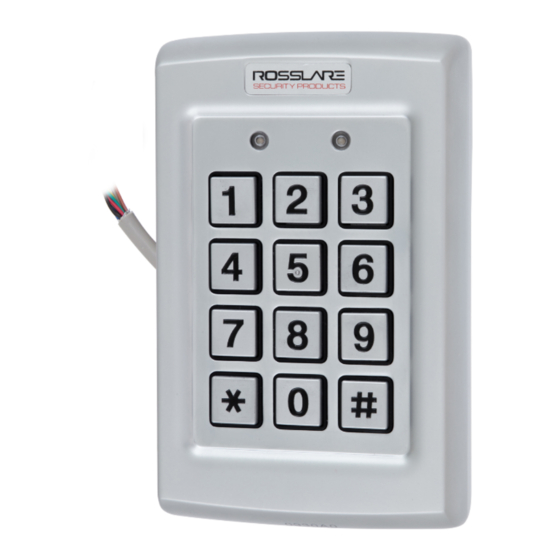

- Page 1 AYC-Qx4 Series Vandal Resistant Convertible Reader/Controllers Installation and Programming Manual Models: AYC-Q54B AYC-Q64B AYC-Q54B AYC-Q64B...
- Page 2 ROSSLARE. ROSSLARE reserves the right to revise and change this document at any time, without being obliged to announce such revisions or changes beforehand or after the fact.
-
Page 3: Table Of Contents
Table of Contents Table of Contents Introduction ..............9 Reader/Controller Types............9 Box Content ................. 10 Ancillary Equipment .............. 10 Technical Specifications ..........11 Installation ..............13 Mounting ................13 Wiring Instructions ..............14 3.2.1 Wiring the Unit as a Reader ............14 3.2.2 Wiring the Unit as a Controller ............. - Page 4 Table of Contents Modes of Operation .............. 33 5.2.1 Normal Mode ................33 5.2.2 Bypass Mode ................33 5.2.3 Secure Mode ................34 5.2.4 Changing the Modes of Operation ..........34 Auxiliary Input and Output............. 35 Door Alarms ................. 35 Internal Case and Back Tamper ..........
- Page 5 Table of Contents 5.9.16 Relay Code Assignment using Search Method ......58 5.9.17 PIN Code Length/Factory Default Settings ........59 5.9.18 Replacing a Lost Programming Code ..........60 5.9.19 Exiting Secure Mode if Normal/Secure Code was Lost....60 Declaration of Conformity........61 Limited Warranty ............
- Page 6 List of Figures List of Figures Figure 1: Drilling Mounting Holes ..............13 Figure 2: Controller Application Wiring Diagram ..........16 Figure 3: Controller Wiring – Using the Internal Power ........17 Figure 4: Controller Wiring – Using the External Power ........17 AYC-Qx4 Family Installation and Programming Manual...
- Page 7 List of Tables List of Tables Table 1: Wiring the Reader to the Controller ........... 14 Table 2: Wiring the Unit as a Controller............15 Table 3: Reader Programming Menus .............. 19 Table 4: Controller Programming Menu ............37 Table 5: Quick Reference Guide for Auxiliary Mode Setting ......44 AYC-Qx4 Family Installation and Programming Manual...
- Page 8 ROSSLARE exclusive warranty and liability is limited to the warranty and liability statement provided in an appendix at the end of this document. ...
-
Page 9: Introduction
If the unit is connected to a standard access control unit, then it functions as a reader. If the unit is connected to a Rosslare secured intelligent power supply such as the PS-A25T, PS-C25T or PS- C25TU, it functions as a secured controller. -
Page 10: Box Content
(power to lock) or fail secure (power to open) functions. Request-to-Exit (REX) button – normally open type Switch is closed when pressed. Door monitor switch Rosslare accessories can be found on www.rosslaresecurity.com. AYC-Qx4 Family Installation and Programming Manual... -
Page 11: Technical Specifications
Technical Specifications Technical Specifications Specifications AYC-Q54B AYC-Q64B Electrical Characteristics Power Supply Type Linear (recommended) Operating Voltage Range 5 to 16 VDC (when used as a controller, provided by the secured intelligent power supply) Input Current Standby (12 VDC) 65 mA... - Page 12 120 x 76 x 21 mm (4.7 x 3.0 x 0.8 in.) (Height x Width x Depth) Weight 480 g (1.1 lb) * Measured using a Rosslare proximity card or equivalent. Range also depends on electrical environment and proximity to metal. AYC-Qx4 Family Installation and Programming Manual...
-
Page 13: Installation
Installation Installation Installation of an RFID reader adjacent to metallic surfaces might alter the reader’s specifications. To diminish this interference, use a plastic spacer when mounting the reader. Mounting Before starting, select the location to mount the unit. This location should be at shoulder height. -
Page 14: Wiring Instructions
Installation 8. Carefully re-attach the front cover of the unit. 9. Secure the front cover by using the supplied security Torx screw. A Torx security screw tool is provided to tighten the security Torx screw. Wiring Instructions The unit is supplied with a 6-conductor 56-cm (22-in.) pigtail with exposed wires coated with solder. -
Page 15: Wiring The Unit As A Controller
3.2.2 Wiring the Unit as a Controller If you connect the unit to a Rosslare PS-x25x secured power supply, it automatically functions as a controller. To connect the unit as a controller: 1. Select the appropriate connections according to Table 2. -
Page 16: Figure 2: Controller Application Wiring Diagram
Installation 5. To connect the unit to the desired power supply option, refer to the relevant wiring diagrams that follow. Figure 2 shows the wiring for the controller application using a dual relay secured intelligent power supply. Figure 2: Controller Application Wiring Diagram AYC-Qx4 Family Installation and Programming Manual... -
Page 17: Figure 3: Controller Wiring - Using The Internal Power
Installation Figure 3 shows the auxiliary output connection using the internal power. Figure 3: Controller Wiring – Using the Internal Power Figure 4 shows the auxiliary output connection using the external power. Figure 4: Controller Wiring – Using the External Power AYC-Qx4 Family Installation and Programming Manual... -
Page 18: Reader Operation
Reader Operation Reader Operation Upon power-on reset, the unit searches for the presence of a secured intelligent power supply. If a secured intelligent power supply is not detected, it is automatically configured as a reader, as indicated by one short beep. The use of a proximity card is for the AYC-Q64 model only. -
Page 19: Table 3: Reader Programming Menus
Table 3: Reader Programming Menus Menu Description Default Selecting Keypad Transmission Format Single Key, 6-Bit Wiegand (Rosslare Format) Single Key, 6-Bit Wiegand with Nibble + Parity Bits Single Key, 8-Bit Wiegand, Nibbles Complemented 4 Keys Binary + Facility Code, Wiegand 26-Bit... -
Page 20: Entering Programming Mode
Reader Operation 4.2.1 Entering Programming Mode To reach the Programming Menu System, the unit must first be placed into Programming mode. • The factory 4-digit Programming code is 1234. • If a Programming code is not entered within 30 seconds, the unit returns to Standby mode. -
Page 21: Selecting Keypad Transmission Format
2. Press 1 to enter Menu 1. The left LED turns red. Red Green 3. Enter one of the following codes: 1 – Single Key, Wiegand 6-Bit (Rosslare Format) (default) 2 – Single Key, Wiegand 6-Bit with Nibble + Parity Bits ... - Page 22 Reader Operation 4.2.3.1 Single Key, Wiegand 6-Bit (Rosslare Format) Each key press immediately sends 4 bits with 2 parity bits added – even parity for the first 3 bits and odd parity for the last 3 bits. 0 = 1 1010 0 ="A" in Hexadecimal...
- Page 23 Reader Operation 4.2.3.4 4 Keys Binary + Facility Code, Wiegand 26-Bit This option buffers 4 keys and outputs keypad data with a 3-digit Facility code like a standard 26-Bit card output. The Facility code is set in Programming Menu number four and can be in the range 000 to 255.
- Page 24 Reader Operation The keypad PIN code can be one to five digits in length and can range between 1 and 65,535. When entering a keypad PIN code that is less than 5 digits in length, # must be pressed to signify the end of PIN code entry.
- Page 25 Reader Operation Where: EP = Even parity for first 12 bits OP = Odd parity for last 12 bits A = The first key entered D = Fourth key entered B = Second key entered E = Fifth key entered C = Third key entered F = Sixth key entered 4.2.3.7...
-
Page 26: Selecting Proximity Card Transmission Format
Reader Operation 4.2.3.8 1 to 8 Keys BCD, Clock & Data Buffers up to 8 keys and outputs keypad data without a Facility code like standard Clock and Data card output. The keypad PIN code can be one to eight digits in length. The PIN code length is selected while programming the reader for Option 8. - Page 27 Reader Operation 3. Enter one of the following codes: 1 – Wiegand 26-Bit 2 – Clock & Data 3 – Wiegand Card + PIN You hear three beeps. The system returns to Standby mode. If an incorrect option is entered, the reader returns to Standby mode and the keypad transmission format remains unchanged.
-
Page 28: Changing The Programming Code
Reader Operation The AYC-QX4 output card data comes in Wiegand 26-Bit with the following keypad data in Wiegand 26-Bit format: Card Data: (EP) AAAA AAAA AAAA BBBB BBBB BBBB (OP) Where: EP = Even parity for first 12 A bits OP = Odd parity for last B 12 bits ... -
Page 29: Changing The Facility Code
Reader Operation 3. Enter the new 4-digit code you wish to set as the Programming code. You hear three beeps. The system returns to Standby mode. 4.2.6 Changing the Facility Code • The Facility code can be in the range of 000 to 255. •... -
Page 30: Return To Factory Default Settings
Reader Operation 3. Enter one of the following codes: 0 – Always off 1 – Always on 2 – Backlight is off, activates for 10 seconds when a key is pressed (left LED also goes on), after which it dims until off (left LED also goes off) 3 –... -
Page 31: Replacing A Lost Programming Code
Reader Operation 4.2.9 Replacing a Lost Programming Code In the event that the Programming code is forgotten, the unit can be reprogrammed in the field. To replace a lost Programming code: 1. Remove power from the reader. 2. Activate the tamper by removing the reader from the wall or removing the reader's case. -
Page 32: Controller Operation
Controller Operation Controller Operation Upon power-on reset, the unit searches for the presence of a secured intelligent power supply. If a secured intelligent power supply is detected, then the unit is automatically configured as a secure access control unit, as indicated by two short beeps. The Lock Strike and Auxiliary outputs, as well as the REX input, are not located on the unit, eliminating the possibility of unauthorized entry to the restricted area. -
Page 33: Modes Of Operation
Controller Operation Secure A Secure user must have a Primary and Secondary code programmed; the two codes must not be the same. The Secure user can gain access when the unit is in any of its three modes of operation. -
Page 34: Secure Mode
Controller Operation 5.2.3 Secure Mode The left LED is red. Only Secure and Master users can access the premises in Secured mode. A Secure user must enter the Primary and Secondary codes to gain entry. After entering the Primary code, the right LED flashes green for 10 seconds, during which the Secondary code must be entered. -
Page 35: Auxiliary Input And Output
Controller Operation 5.2.4.3 Changing from Normal Mode to Bypass Mode See Section 5.9.7 to create/modify the Normal/Bypass code. To change from Normal to By pass mode: 1. Enter the 4-digit Normal/Bypass code. Green The left LED flashes orange. Orange 2. Press # to confirm the mode change. The left LED stops flashing. -
Page 36: Internal Case And Back Tamper
REX Function The REX button is connected to Rosslare’s secured intelligent power supply. The REX button must be located inside the premises to be secured and is used to open the door without the use of a PIN code. It is usually located in a convenient location, such as inside the door or at a receptionist's desk. -
Page 37: Secured Intelligent Power Supply
Controller Operation Secured Intelligent Power Supply Rosslare’s secured intelligent power supplies are designed for use with Rosslare's secured standalone access control units, including the AYC-Qx4 series. The AYC-Qx4 units are designed to operate indoors and are installed within the secured premises. The units must be used with one of Rosslare’s secured intelligent power supplies, which... -
Page 38: Entering Programming Mode
Controller Operation Menu Menu Description Default digits digits digits digits Changing Door Release Time 0004 Define auxiliary inputs/outputs 2004 Set Lockout 4000 Backlight Behavior 5100 Enrolling PIN Code Deleting PIN Code Code assignment with strike/auxiliary Return to factory defaults or change PIN code Length You will find a complete description and instructions for each of the above menu items on the following subsections. -
Page 39: Exiting Programming Mode
Controller Operation 5.9.2 Exiting Programming Mode To ex it Programming mode: 1. Press # twice to exit Programming mode at any time. You hear 3 beeps. The left LED turns green and the right LED Green turns off. Wrong entries reset the controller back to Normal mode. While in Programming mode, if no key is pressed for one minute, the unit exits Programming mode and returns to Normal mode. -
Page 40: Changing Auxiliary Code
Controller Operation You hear three beeps. The system returns to Normal mode. Green 5.9.4 Changing Auxiliary Code The Auxiliary code is mainly used as a method to quickly test the Auxiliary Relay during installation. When the first user is added to the controller, the default Auxiliary code is automatically deleted. -
Page 41: Changing The Programming Code
Controller Operation 5.9.5 Changing the Programming Code • The Programming code cannot be erased; the code 0000 is invalid and does not erase the Programming code. • The factory default 4-digit Programming code is 1234. To change the Programming code: 1. -
Page 42: Changing The Normal/Bypass Code And Door Chime Settings
Controller Operation 5.9.7 Changing the Normal/Bypass Code and Door Chime Settings To change the Normal/By pass code and door chime settings: 1. Enter Programming mode. Green 2. Press 5 to enter Menu 5. The left LED flashes orange. Orange Green 3. -
Page 43: Setting Fail Safe/Secure Operation, Tamper Siren And Lock Strike Release Time
Controller Operation 5.9.8 Setting Fail Safe/Secure Operation, Tamper Siren and Lock Strike Release Time The default value is 0004, which corresponds to Fail Secure operation, no siren, and 4-seconds Lock Strike release time. To set the Fail Safe/ Secure Operation, Tamper Siren and Lock Strike Release Time: 1. -
Page 44: Defining The Auxiliary Input And Output
Controller Operation 5.9.9 Defining the Auxiliary Input and Output The default auxiliary setting is 2004. To define the aux iliary input and output: 1. Enter Programming mode. Green 2. Press 6 to enter Menu 6. The left LED flashes green. Green Green 3. - Page 45 Controller Operation Aux. Aux. Input Aux. Aux. Aux. Settings Mode Function Output Relay (in seconds) Activated Normal/Secure Tamper N.C. 01 to 99 Aux. switch event relay release time Normal/Secure Direct shunt N.O. 01 to 99 Shunt switch time Door Monitor Shunt N.C.
- Page 46 Controller Operation 5.9.9.2 Auxiliary Mode 1 Auxiliary input function: Toggles Normal/Secure modes Auxiliary output activated by: Valid user code, Auxiliary code For example, in Auxiliary Mode 1, the controller can function as a 2-door controller. The auxiliary relay is to be attached to the lock on the second door.
- Page 47 Controller Operation 5.9.9.4 Auxiliary Mode 3 Auxiliary input function: Toggles Normal/Secure modes Auxiliary output activated by: Alarms For example, in Auxiliary Mode 3, the auxiliary output is activated if the controller is tampered; that is, if the case is forcibly opened or removed from the wall.
- Page 48 Controller Operation 5.9.9.7 Auxiliary Mode 6 Auxiliary input function: Door Monitor Auxiliary output activated by: Forced entry For example, in Auxiliary Mode 6, the controller can trigger the auxiliary relay if the door has been forced. If the siren settings are enabled, the siren is activated.
-
Page 49: Setting The Lockout Feature
Controller Operation For example, in Auxiliary Mode 8, the controller can function as a 2-door controller and also provide LED indicator functionality control. The auxiliary relay is connected to the lock on the second door. The auxiliary setting defines the Door Open time for the second door. The auxiliary input is used to control the door indicator (right LED). -
Page 50: Setting The Backlight Behavior
Controller Operation To set the lockout feature: 1. Enter Programming mode. Green Press 6 to enter Menu 6. The left LED flashes green. Green Green 3. Construct a code using the following instructions: Second digit Sets the number of wrong code attempts, which causes a Lockout between 0 and 9 attempts. -
Page 51: Enrolling Primary And Secondary Codes
Controller Operation 3. Enter one of the following codes: 5000 – Backlight off 5100 – Backlight on (default) 5200 – Backlight is off, activates for 10 seconds when a key is pressed, after which it dims until off 5300 –... - Page 52 Controller Operation 5.9.12.3 Enrolling Methods There are two methods to enroll Primary and Secondary codes: Standard Method The Standard Method is mainly used when the user slot number for the user you wish to program is known. You can program both Primary and Secondary codes using the Standard method (see Section 5.9.12.4).
- Page 53 Controller Operation If the selected slot already has a Primary code but no Secondary code, the left LED flashes red, indicating that the controller is ready to Red Orange accept a Secondary code. If the selected slot already has a Primary and Secondary code, you hear a long beep and the Green controller returns to Normal mode.
- Page 54 Controller Operation 5.9.12.5 Enrolling Secondary Codes using the Code Search Method The Code Search feature enables you to quickly enroll a Secondary code to a user who already has a Primary code. To enroll secondary codes using the Code Search method: 1.
-
Page 55: Deleting Primary And Secondary Codes
Controller Operation If the Secondary code is valid, the controller beeps three times and returns to Normal mode. If the Secondary code is invalid, the controller sounds a long beep, and the unit continues to wait for a valid Secondary code to be entered. - Page 56 Controller Operation 4. Enter your 4-digit Programming code to confirm the deletion. If the Programming code is valid, three beeps are heard and the controller returns to Normal mode. If the Programming code is invalid, a long beep is heard and the controller returns to Normal mode.
-
Page 57: Relay Codes Assignment
Controller Operation 5. Enter your 4-digit Programming code to confirm the deletion. If the Programming code is valid, you hear three beeps and the unit returns to Normal mode. If the Programming code is invalid, you hear a long beep and the unit returns to Normal mode. -
Page 58: Relay Code Assignment Using Search Method
Controller Operation If the assignment code is valid, the left LED stops flashing. The controller is now waiting for another slot number. 5. Do one of the following: Press # to move to the next available user slot number. Enter another 3-digit user slot number. -
Page 59: Pin Code Length/Factory Default Settings
Controller Operation 5. Enter the assignment digit for the current user slot: 1 activates the Lock Strike relay only default 2 activates the Auxiliary relay only 3 activates the Lock Strike and Auxiliary relays If the assignment digit is valid, three beeps are heard and the controller returns to Normal mode. -
Page 60: Replacing A Lost Programming Code
Controller Operation 3. Enter your 4-digit Programming code. If the Programming code is valid, all memory is erased. You hear three beeps and the controller returns to Normal mode. If the Programming code is invalid, you hear a long beep and the controller returns to Normal mode without erasing the memory contents. -
Page 61: Declaration Of Conformity
Declaration of Conformity Declaration of Conformity This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. -
Page 62: Limited Warranty
The full ROSSLARE Limited Warranty Statement is available in the Quick Links section on the ROSSLARE website at www.rosslaresecurity.com. Rosslare considers any use of this product as agreement to the Warranty Terms even if you do not review them. AYC-Qx4 Family Installation and Programming Manual... - Page 63 +86 755 8610 6842 Fax: +86 755 8610 6101 Rosslare Security Products, Inc. support.cn@rosslaresecurity.com Southlake, TX, USA Toll Free: +1-866-632-1101 India Local: +1-817-305-0006 Rosslare Electronics India Pvt Ltd. Fax: +1-817-305-0069 Tel/Fax: +91 20 40147830 support.na@rosslaresecurity.com Mobile: +91 9975768824 Europe sales.in@rosslaresecurity.com Rosslare Israel Ltd.
