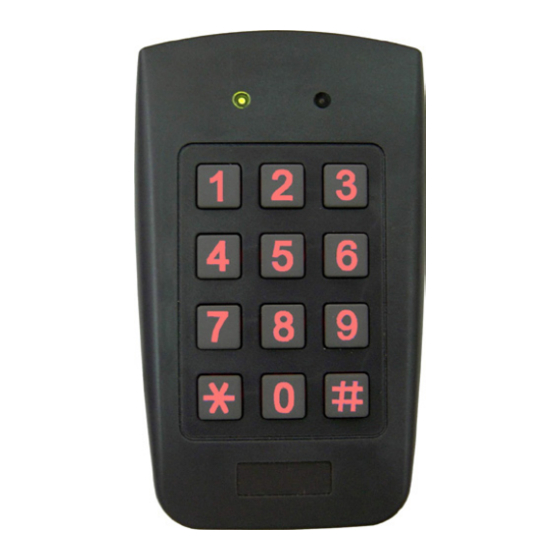

Summary of Contents for Rosslare AYC-F/Gx4 Series

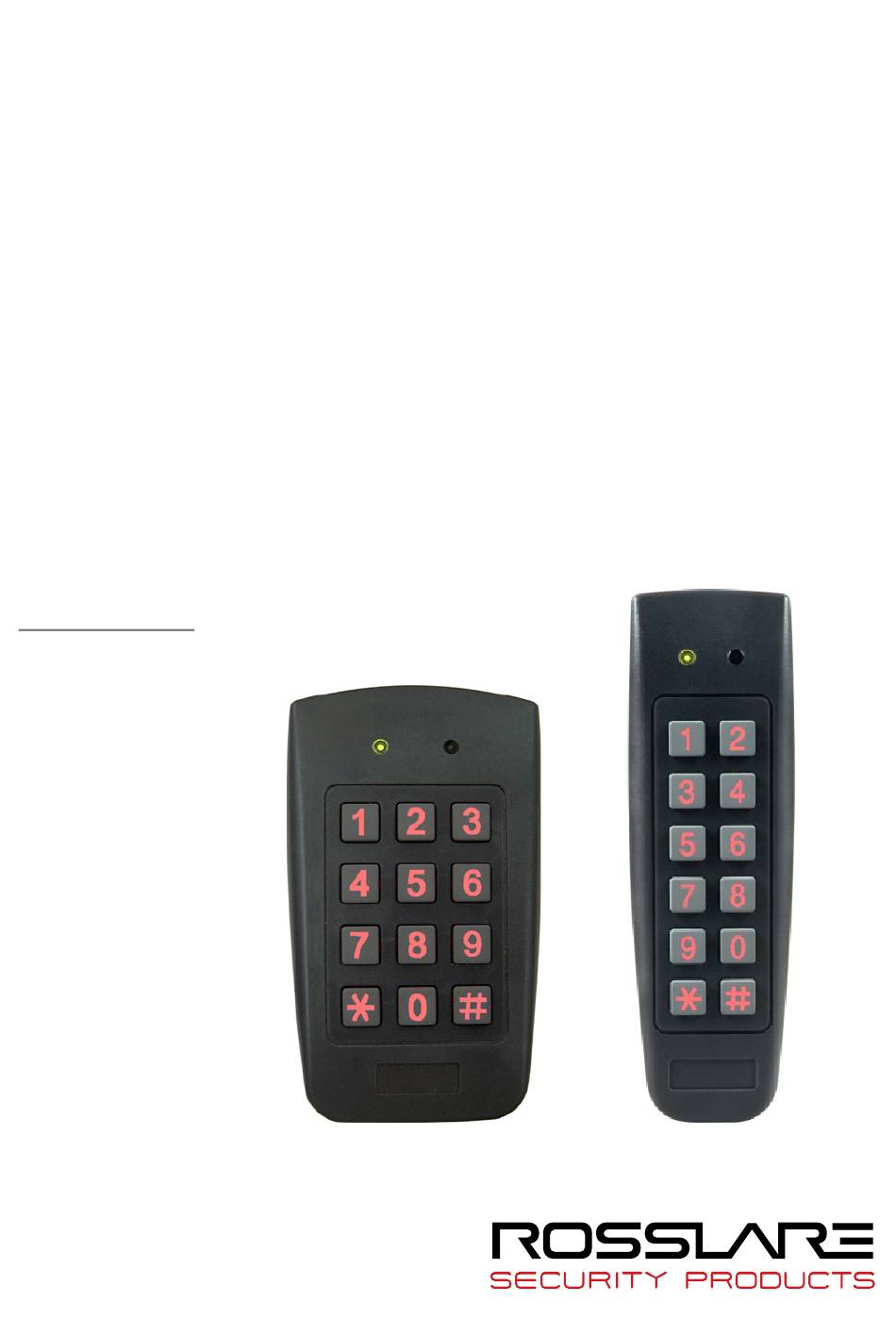

- Page 1 AYC-F/Gx4 Series Convertible Backlit PIN & Prox Readers/Controllers Installation and Programming Manual Models: AYC-F54 AYC-F64 AYC-G54 AYC-G64 AYC-Fx4 AYC-Gx4...
- Page 2 ROSSLARE. ROSSLARE reserves the right to revise and change this document at any time, without being obliged to announce such revisions or changes beforehand or after the fact.
-
Page 3: Table Of Contents
Changing the Facility Code ............28 4.2.7 Return to Factory Default Settings ..........29 4.2.8 Replacing a Lost Programming Code ..........29 Controller Operation ..........30 Normal, Secure, and Master Users .......... 30 Modes of Operation .............. 31 AYC-F/Gx4 Series Installation and Programming Manual... - Page 4 Deleting Primary and Secondary Codes ......... 53 5.9.13 Relay Codes Assignment ............... 55 5.9.14 PIN Code Length/Factory Default Settings ........58 5.9.15 Replacing a Lost Programming Code ..........58 5.9.16 Replacing a Lost Normal/Secure Code ........... 59 AYC-F/Gx4 Series Installation and Programming Manual...
- Page 5 Table of Contents Declaration of Conformity........60 Limited Warranty ............61 AYC-F/Gx4 Series Installation and Programming Manual...
- Page 6 Figure 1: Drilling and Mounting Template ............13 Figure 2: Controller Application Wiring Diagram ..........16 Figure 3: Controller Wiring – Using the Internal Power ........17 Figure 4: Controller Wiring – Using the External Power ........17 AYC-F/Gx4 Series Installation and Programming Manual...
- Page 7 Table 2: Wiring the Unit as a Controller............15 Table 3: Reader Programming Menus .............. 19 Table 4: Controller Programming Menu ............36 Table 5: Quick Reference Guide for Auxiliary Mode Setting ......43 AYC-F/Gx4 Series Installation and Programming Manual...
- Page 8 ROSSLARE exclusive warranty and liability is limited to the warranty and liability statement provided in an appendix at the end of this document. ...
-
Page 9: Introduction
If the unit is connected to a standard access control unit, then it functions as a reader. If the unit is connected to a Rosslare secured intelligent power supply such as the PS-A25T, PS-C25T or PS-C25TU, it functions as a secured controller. -
Page 10: Box Content
(power to lock) or fail secure (power to open) functions Request-to-Exit (REX) button – normally open type. Switch is closed when pressed Door monitor switch Rosslare accessories can be found on www.rosslaresecurity.com. AYC-F/Gx4 Series Installation and Programming Manual... -
Page 11: Technical Specifications
Format (Reader) LED Indicators Two tri-colored LEDs Communication Data1/C1, Data0/C2 – open collector, 5 V termination * Measured using a Rosslare proximity card or equivalent. Range also depends on electrical environment and proximity to metal AYC-F/Gx4 Series Installation and Programming Manual... - Page 12 120 x 76 x 21 mm 137 x 44 x 21 mm (4.7 x 3.0 x 0.8 in.) (5.4 x 1.7 x 0.8 in.) x Width x Depth) Weight 215 g (7.6 oz) 160 g (5.6 oz) AYC-F/Gx4 Series Installation and Programming Manual...
-
Page 13: Installation
4. At the bottom of the unit’s case, remove the screw. 5. Carefully remove the snap-off front cover of the unit to reveal the screw holes. AYC-F/Gx4 Series Installation and Programming Manual... -
Page 14: Wiring
3. Splice the reader’s pigtail wires to the corresponding controller wires and cover each joint with insulating tape. 4. If the tamper output is being utilized, connect the purple wire to the correct input on the controller. AYC-F/Gx4 Series Installation and Programming Manual... -
Page 15: Wiring The Unit As A Controller
3.2.2 Wiring the Unit as a Controller If you connect the unit to a Rosslare PS-x25x secured power supply, it automatically functions as a controller. To connect the unit as a controller: 1. Select the appropriate connections according to Table 2. -
Page 16: Figure 2: Controller Application Wiring Diagram
5. To connect the unit to the desired power supply option, refer to the relevant wiring diagrams that follow. Figure 2 shows the wiring for the controller application using a dual relay secured intelligent power supply. Figure 2: Controller Application Wiring Diagram AYC-F/Gx4 Series Installation and Programming Manual... -
Page 17: Figure 3: Controller Wiring - Using The Internal Power
Figure 3 shows the auxiliary output connection using the internal power. Figure 3: Controller Wiring – Using the Internal Power Figure 4 shows the auxiliary output connection using the external power. Figure 4: Controller Wiring – Using the External Power AYC-F/Gx4 Series Installation and Programming Manual... -
Page 18: Reader Operation
Reader Operation Reader Operation The AYC-F/Gx4 series can function both as a reader and as a controller. If the unit is connected to standard access controller, it functions as a reader, indicated by one beep immediately after power- on reset. -
Page 19: Entering Programming Mode
1. Press # four times. The left LED turns off and the right LED turns red. 2. Enter your 4-digit Programming code. If the Programming code is valid, the right LED turns green. Green AYC-F/Gx4 Series Installation and Programming Manual... -
Page 20: Exiting Programming Mode
PIN code. To select the key pad transmission format: 1. Enter Programming mode. Green 2. Press 1 to enter Menu 1. The left LED turns red. Red Green AYC-F/Gx4 Series Installation and Programming Manual... - Page 21 Reader Operation 3. Enter one of the following codes: 1 – Single Key, Wiegand 6-Bit (Rosslare Format) (default) 2 – Single Key, Wiegand 6-Bit with Nibble + Parity Bits 3 – Single Key, Wiegand 8-Bit, Nibbles Complemented ...
- Page 22 26-bit card. If or # are pressed during PIN code entry, the keypad clears the PIN code entry buffer, generate a beep and is ready to receive a new 4- digit keypad PIN code. AYC-F/Gx4 Series Installation and Programming Manual...
- Page 23 If is pressed during PIN code entry or a PIN code greater than 65,535 is entered, the keypad clears the PIN code entry buffer, generates a beep, and is ready to receive a new 5-digit keypad PIN code. AYC-F/Gx4 Series Installation and Programming Manual...
- Page 24 OP = Odd parity for last 12 bits A = The first key entered D = Fourth key entered B = Second key entered E = Fifth key entered C = Third key entered F = Sixth key entered AYC-F/Gx4 Series Installation and Programming Manual...
- Page 25 Clock & Data format. If or # is pressed during PIN code entry, the keypad clears the PIN code entry buffer, generates a beep, and is ready to receive a new keypad PIN code. AYC-F/Gx4 Series Installation and Programming Manual...
-
Page 26: Selecting Proximity Card Transmission Format
1- to 5-digit keypad PIN code is disturbed and a number key or # is not pressed within 5 seconds, the keypad clears the card buffer and the PIN code entry buffer, generates a medium length beep, and be ready to receive a new card. AYC-F/Gx4 Series Installation and Programming Manual... - Page 27 Example: (EP) 0000 0000 0000 0000 AAAA BBBB (OP) Where: A = The first key entered B = Second key entered EP = Even parity for first 12 bits OP = Odd parity for last 12 bits AYC-F/Gx4 Series Installation and Programming Manual...
-
Page 28: Changing The Programming Code
1. Enter Programming mode. Green 2. Press 4 to enter Menu 4. The left LED turns red. Red Green 3. Enter the new 3-digit Facility code. You hear three beeps. The system returns to Standby mode. AYC-F/Gx4 Series Installation and Programming Manual... -
Page 29: Return To Factory Default Settings
2. Activate tamper by removing the reader from the wall or removing the reader's case. 3. Apply power to the reader. 4. You now have 10 seconds to enter Programming mode using the factory default Programming code 1234. AYC-F/Gx4 Series Installation and Programming Manual... -
Page 30: Controller Operation
Controller Operation Controller Operation The AYC-F/Gx4 can function both as a reader and as a controller. If the unit is connected to Rosslare’s secured intelligent power supply, it functions as a controller indicated by two beeps immediately after power-on reset. -
Page 31: Modes Of Operation
Fail Secure Operation. When the Lock Strike is programmed for Fail Secure Operation, the door is locked until * is pressed. When the Lock Strike is programmed for Fail Safe Operation, the door is constantly unlocked. AYC-F/Gx4 Series Installation and Programming Manual... -
Page 32: Secure Mode
Changing from Secure Mode to Normal Mode The default factory setting for the Normal/Secure code is 3838. To change from Secure to Normal mode: 1. Enter the Normal/Secure code. The left LED flashes green. Green AYC-F/Gx4 Series Installation and Programming Manual... - Page 33 To change from By pass to Normal mode: 1. Enter the Normal/Secure code. Orange The left LED flashes green. Green 2. Press # to confirm the mode change. The left LED stops flashing. Green AYC-F/Gx4 Series Installation and Programming Manual...
-
Page 34: Auxiliary Input And Output
When a lockout occurs, the controller’s reader and keypad are de- activated so no codes can be entered until the set lockout period expires. During Lockout mode, the left LED is Off, the right LED flashes red, and the controller beeps every two seconds. AYC-F/Gx4 Series Installation and Programming Manual... -
Page 35: Rex Function
Controller Operation REX Function The REX button is connected to Rosslare’s secured intelligent power supply. The REX button must be located inside the premises to be secured and is used to open the door without the use of a PIN code. It is usually located in a convenient location, such as inside the door or at a receptionist's desk. -
Page 36: Programming As A Controller
Deleting PIN Code Code assignment with strike/auxiliary Return to factory defaults or change PIN code Length You will find a complete description and instructions for each of the above menu items in the following subsections. AYC-F/Gx4 Series Installation and Programming Manual... -
Page 37: Entering Programming Mode
Programming mode and returns to Normal mode. 5.9.3 Changing Lock Strike Code The Lock Strike code is mainly used as a method to quickly test the Lock Strike Relay during installation. AYC-F/Gx4 Series Installation and Programming Manual... -
Page 38: Changing Auxiliary Code
Once the code is programmed again, it is not deleted with the entry of additional user codes. To change the Aux iliary code: 1. Enter Programming mode. Green 2. Press 2 to enter Menu 2. AYC-F/Gx4 Series Installation and Programming Manual... -
Page 39: Changing The Programming Code
The system returns to Normal mode. Green • Programming code cannot be erased, meaning the code 0000 is not valid and does not erase the Programming code. • The factory four-digit Programming code is 1234. AYC-F/Gx4 Series Installation and Programming Manual... -
Page 40: Changing The Normal/Secure Code
Green 2. Press 5 to enter Menu 5. The left LED flashes orange. Orange Green 3. Enter the new Normal/Secure code. There are four different ways to program the Normal/Bypass code and door chime. AYC-F/Gx4 Series Installation and Programming Manual... -
Page 41: Setting Fail Safe/Secure Operation, Tamper Siren And Lock Strike Release Time
Lock Strike Release Time To set the Fail Safe/ Secure Operation, Tamper Siren and Lock Strike Release Time: 1. Enter Programming mode. Green 2. Press 6 to enter Menu 6. The left LED flashes green. Green Green AYC-F/Gx4 Series Installation and Programming Manual... -
Page 42: Defining The Auxiliary Input And Output
Defining the Auxiliary Input and Output The default auxiliary setting is 2004. To define the aux iliary input and output: 1. Enter Programming mode. Green 2. Press 6 to enter Menu 6. The left LED flashes green. Green Green AYC-F/Gx4 Series Installation and Programming Manual... -
Page 43: Table 5: Quick Reference Guide For Auxiliary Mode Setting
Normal/Secure Direct shunt N.O. 01 to 99 Shunt switch time Door Monitor Shunt N.C. 01 to 99 Maximum shunt time Door Monitor Forced door N.C. 01 to 99 Forced delay AYC-F/Gx4 Series Installation and Programming Manual... - Page 44 For example, in Auxiliary Mode 1, the controller can function as a two-door controller. The auxiliary relay is to be attached to the lock on the second door. The REX feature for the second door is not enabled when using this mode. AYC-F/Gx4 Series Installation and Programming Manual...
- Page 45 For example, in Auxiliary Mode 4, the controller is capable of bypassing an alarm zone by shunting an alarm system’s door sensor. The auxiliary output is to be wired in parallel to the door sensor AYC-F/Gx4 Series Installation and Programming Manual...
- Page 46 If the door is forced open, the controller waits for the period of the forced door delay time to elapse and then it activates the auxiliary relay. The auxiliary setting sets the forced door delay period. AYC-F/Gx4 Series Installation and Programming Manual...
- Page 47 Door Open time for the second door. The auxiliary input is used to control the door indicator (right LED). If the auxiliary input is open, the right LED flashes green; if the auxiliary input is closed, the right LED flashes red. AYC-F/Gx4 Series Installation and Programming Manual...
-
Page 48: Setting The Lockout Feature
Using the lockout feature is highly recommended, especially when selecting to use short PIN code length (4 or 5 digits). To set the lockout feature: 1. Enter Programming mode. Green 2. Press 6 to enter Menu 6. AYC-F/Gx4 Series Installation and Programming Manual... -
Page 49: Enrolling Primary And Secondary Codes
Secondary code. Secondary codes cannot be the same as any system codes, such as the Normal/Secure or Lock Strike codes. Users who hold Secondary codes can gain entry in any mode of operation. AYC-F/Gx4 Series Installation and Programming Manual... - Page 50 Primary or Secondary code to. For example, User Slot 003 represents User If the selected slot has no Primary code, the left LED flashes green, indicating that the Green Orange controller is ready to accept a Primary code. AYC-F/Gx4 Series Installation and Programming Manual...
- Page 51 The Code Search feature enables you to quickly enroll a Secondary code to a user who already has a Primary code. To enroll secondary codes using the Code Search method: 1. Enter Programming mode. Green 2. Press 7 to enter Menu 7. AYC-F/Gx4 Series Installation and Programming Manual...
- Page 52 If the Secondary code is valid, the controller beeps three times and returns to Normal mode. If the Secondary code is invalid, the controller sounds a long beep, and the unit continues to wait for a valid Secondary code to be entered. AYC-F/Gx4 Series Installation and Programming Manual...
-
Page 53: Deleting Primary And Secondary Codes
The left LED flashes red indicating the controller is waiting for the Programming code to confirm the deletion. Red Orange If the user slot is empty, you hear a long beep and the unit returns to Normal mode. AYC-F/Gx4 Series Installation and Programming Manual... - Page 54 Primary code belonging to the user you want to delete. Present the user card of the Primary code belonging to the user you want to delete. The left LED flashes red. Red Orange AYC-F/Gx4 Series Installation and Programming Manual...
-
Page 55: Relay Codes Assignment
2. Press 9 to enter Menu 9. The left LED turns green and the right LED turns orange. Green Orange 3. Enter the 3-digit user slot for code assignment. The left LED flashes green. Green Orange AYC-F/Gx4 Series Installation and Programming Manual... - Page 56 2. Press 9 to enter Menu 9. The left LED turns green and the right LED turns orange. Green Orange 3. Enter 000 for user slot access. The right LED flashes orange. Green Orange AYC-F/Gx4 Series Installation and Programming Manual...
- Page 57 If the assignment digit is valid, three beeps are heard and the controller returns to Normal mode. If the assignment digit is invalid, a long beep sounds and the controller waits for another assignment digit to be entered. AYC-F/Gx4 Series Installation and Programming Manual...
-
Page 58: Pin Code Length/Factory Default Settings
To replace a lost Programming code: 1. Remove power from the power supply unit. 2. Press the REX button on the power supply unit. 3. Apply power to the unit with REX button pressed. AYC-F/Gx4 Series Installation and Programming Manual... -
Page 59: Replacing A Lost Normal/Secure Code
3. Apply power to the unit with the REX button pressed. 4. Release the REX button. 5. You now have 10 seconds to exit Secure mode using the initial default Normal/Secure code 3838. 6. Program a new Normal/Secure code as described in Section 5.9.6. AYC-F/Gx4 Series Installation and Programming Manual... - Page 60 Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. AYC-F/Gx4 Series Installation and Programming Manual...
- Page 61 The full ROSSLARE Limited Warranty Statement is available in the Quick Links section on the ROSSLARE website at www.rosslaresecurity.com. Rosslare considers any use of this product as agreement to the Warranty Terms even if you do not review them. AYC-F/Gx4 Series Installation and Programming Manual...
- Page 62 +86 755 8610 6842 Fax: +86 755 8610 6101 Rosslare Security Products, Inc. support.cn@rosslaresecurity.com Southlake, TX, USA Toll Free: +1-866-632-1101 India Local: +1-817-305-0006 Rosslare Electronics India Pvt Ltd. Fax: +1-817-305-0069 Tel/Fax: +91 20 40147830 support.na@rosslaresecurity.com Mobile: +91 9975768824 Europe sales.in@rosslaresecurity.com Rosslare Israel Ltd.
