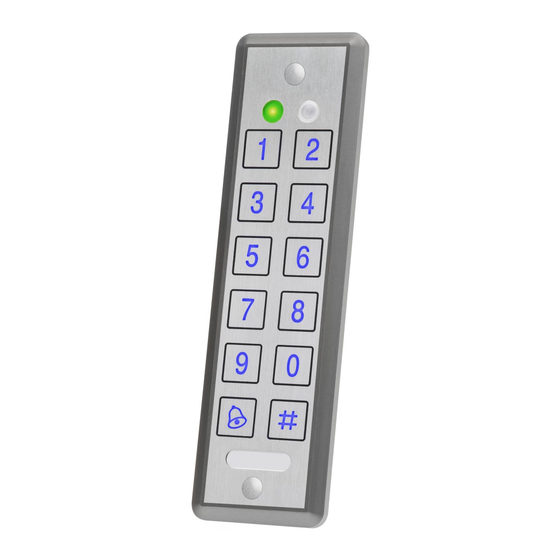

Rosslare AYC-E65BB Installation And Programming Manual

Convertible backlit proximity & pin readers/controllers
Hide thumbs Also See for AYC-E65BB:
Table of Contents

Advertisement

Quick Links

AYC-Ex5/T65 Series
Convertible Backlit Proximity &
PIN Readers/Controllers
Installation and Programming Manual
Ex5 Models:
AYC-E55
AYC-E65BB
AYC-E65BG
AYC-E65BW
T65 Models:
AYC-T65B
AYC-T65N
AYC-T65
AYC-Ex5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AYC-E65BB and is the answer not in the manual?

Questions and answers

Related Manuals for Rosslare AYC-E65BB

Summary of Contents for Rosslare AYC-E65BB

  • Page 1 AYC-Ex5/T65 Series Convertible Backlit Proximity & PIN Readers/Controllers Installation and Programming Manual Ex5 Models: AYC-E55 AYC-E65BB AYC-E65BG AYC-E65BW T65 Models: AYC-T65B AYC-T65N AYC-T65 AYC-Ex5...
  • Page 2 ROSSLARE. ROSSLARE reserves the right to revise and change this document at any time, without being obliged to announce such revisions or changes beforehand or after the fact.

  • Page 3: Table Of Contents

    Table of Contents Table of Contents Introduction ..............9 Reader/Controller Types............9 Box Content ................. 10 Ancillary Equipment .............. 10 Technical Specifications ..........11 Installation ..............13 Mounting ................13 Wiring .................. 14 3.2.1 Wiring the Unit as a Reader ............14 3.2.2 Wiring the Unit as a Controller .............
  • Page 4 Table of Contents Modes of Operation .............. 32 5.2.1 Normal Mode ................32 5.2.2 Bypass Mode ................32 5.2.3 Secure Mode ................33 5.2.4 Changing the Modes of Operation ..........33 Auxiliary Input and Output............. 35 Door Alarms ................. 35 Internal Case and Back Tamper ..........
  • Page 5 Table of Contents 5.9.16 Replacing a Lost Programming Code ..........60 5.9.17 Exiting Secure Mode if Normal/Secure Code was Lost....61 Declaration of Conformity........62 Limited Warranty ............63 AYC-Ex5/T65 Series Installation and Programming Manual...
  • Page 6 List of Figures List of Figures Figure 1: Drilling and Mounting Template ............13 Figure 2: Controller Application Wiring Diagram ..........16 Figure 3: Controller Wiring – Using the Internal Power ........17 Figure 4: Controller Wiring – Using the External Power ........17 AYC-Ex5/T65 Series Installation and Programming Manual...
  • Page 7  ROSSLARE exclusive warranty and liability is limited to the warranty and liability statement provided in an appendix at the end of this document. ...
  • Page 8 Introduction  All data contained herein subject to change without prior notice.  In no event shall manufacturer be liable for any special, direct, indirect, incidental, consequential, exemplary or punitive damages (including, without limitation, any and all damages from business interruption, loss of profits or revenue, cost of capital or loss of use of any property or capital or injury).

  • Page 9: Introduction

    If the unit is connected to a standard access control unit, then it functions as a reader. If the unit is connected to a Rosslare secured intelligent power supply such as the PS-A25T, PS-C25T or PS-C25TU, it functions as a secured controller.

  • Page 10: Box Content

    (power to lock) or fail secure (power to open) functions. Request-to-Exit (REX) button – normally open type  Switch is closed when pressed.  Door monitor switch Rosslare accessories can be found on www.rosslaresecurity.com. AYC-Ex5/T65 Series Installation and Programming Manual...

  • Page 11: Technical Specifications

    Programmable PIN code formats Format (Reader) LED Indicators Two tri-colored LEDs Communication Data1/C1, Data0/C2—open collector, 5 V termination Measured using a Rosslare proximity card or equivalent. Range also depends on electrical environment and proximity to metal. AYC-Ex5/T65 Series Installation and Programming Manual...
  • Page 12 Technical Specifications Specification AYC-E55 AYC-E65B, AYC-T65 AYC-E65BB Environmental Characteristics Operating Temp. -30°C to 65°C (-22°F to 150°F) Range Operating Humidity 0 to 95% (non-condensing) Range Outdoor Usage Weather-resistant, meets IP68, epoxy-potted, suitable for outdoor use Physical Characteristics Size 155 x 44 x 6.5...

  • Page 13: Installation

    Installation Installation Installation of an RFID reader adjacent to metallic surfaces might alter the reader’s specifications. To diminish this interference, use a plastic spacer when mounting the reader. Mounting Before starting, select the location to mount the unit. This location should be at shoulder height.

  • Page 14: Wiring

    Installation 3. Insert the wall plugs into both mounting holes. 4. Drill a 10-mm (7/16”) hole for the cable. If the surface is metal, place a grommet or electrical tape around the edge of the hole. 5. Insert the unit’s cable wire into the cable hole and wire the unit as described in Section 3.2.

  • Page 15: Wiring The Unit As A Controller

    3.2.2 Wiring the Unit as a Controller If you connect the unit to a Rosslare PS-x25x secured power supply, it automatically functions as a controller. To connect the unit as a controller: 1. Select the appropriate connections according to Table 2.

  • Page 16: Figure 2: Controller Application Wiring Diagram

    Installation 3. Splice the controller pigtail wires to the corresponding PS-x25x secured power supply’s wires and cover each joint with insulating tape. 4. Trim and cover all conductors not used. 5. To connect the unit to the desired power supply option, refer to the relevant wiring diagrams that follow.

  • Page 17: Figure 3: Controller Wiring - Using The Internal Power

    Installation Figure 3 shows the auxiliary output connection using the internal power. Figure 3: Controller Wiring – Using the Internal Power Figure 4 shows the auxiliary output connection using the external power. Figure 4: Controller Wiring – Using the External Power AYC-Ex5/T65 Series Installation and Programming Manual...

  • Page 18: Reader Operation

    Reader Operation Reader Operation The AYC-Ex5/T65 series can function both as a reader and as a controller. If the unit is connected to standard access controller, it functions as a reader, indicated by one beep immediately after power- on reset. The use of a proximity card is not relevant for the AYC-E55 model.

  • Page 19: Table 3: Reader Programming Menus

    Table 3: Reader Programming Menus Menu Description Default Selecting Keypad Transmission Format Single Key, Wiegand 6-Bit (Rosslare Format) Single Key, Wiegand 6-Bit with Nibble + Parity Bits Single Key, Wiegand 8-Bit, Nibbles Complemented 4 Keys Binary + Facility Code, Wiegand 26-Bit...

  • Page 20: Entering Programming Mode

    Reader Operation 4.2.1 Entering Programming Mode To reach the Programming Menu System, the unit must first be placed into Programming mode. • The factory 4-digit Programming code is 1234. • If a Programming code is not entered within 30 seconds, the unit returns to Standby mode.

  • Page 21: Selecting Keypad Transmission Format

    2. Press 1 to enter Menu 1. The left LED turns red. Red Green 3. Enter one of the following codes: 1 – Single Key, Wiegand 6-Bit (Rosslare Format) (default)  2 – Single Key, Wiegand 6-Bit with Nibble + Parity Bits ...
  • Page 22 Reader Operation 4.2.3.1 Single Key, Wiegand 6-Bit (Rosslare Format) Each key press immediately sends 4 bits with 2 parity bits added – even parity for the first 3 bits and odd parity for the last 3 bits. 0= 1 1010 0 ="A" in Hexadecimal...
  • Page 23 Reader Operation The Facility code is set in Programming Menu number four and can be in the range 000 to 255. The factory default setting for the Facility code is 000 (see Section 4.2.6). The keypad PIN code is 4-digit long and can range between 0000 and 9999.
  • Page 24 Reader Operation If  is pressed during PIN code entry or a PIN code greater than 65,535 is entered, the keypad clears the PIN code entry buffer, generates a beep, and is ready to receive a new 5-digit keypad PIN code.
  • Page 25 Reader Operation 4.2.3.7 Single Key, 3x4 Matrix Keypad This unique mode is intended to let the host controller scan the keypad while still keeping the proximity card readers Wiegand 26-Bit or Clock & Data formats active. An optional interface board must be used between the AYC-Ex5/T65 and the host system.

  • Page 26: Selecting Proximity Card Transmission Format

    Reader Operation If the entry of the digit keypad PIN code is disrupted and a number key or # is not pressed within 5 seconds, the keypad clears the PIN code entry buffer, generates a medium length beep, and is ready to receive a new keypad PIN code.
  • Page 27 Reader Operation The keypad PIN code can be one to five digits in length in the range of 0 to 99,999. When entering a keypad PIN code, # must be pressed to signify the end of the PIN entry. When pressing #, the data is sent by the Wiegand data lines.

  • Page 28: Changing The Programming Code

    Reader Operation 4.2.5 Changing the Programming Code • The Programming code cannot be erased, meaning the code 0000 is invalid and does not erase the Programming code. • The factory default 4-digit Programming code is 1234. To change the Programming code: 1.

  • Page 29: Setting The Backlight Behavior

    Reader Operation 4.2.7 Setting the Backlight Behavior To set the backlight behavior: 1. Enter Programming mode. Green 2. Press 6 to enter Menu 6. The left LED turns red. Red Green 3. Enter one of the following codes: For AYC-T65 models: 00 for always off ...

  • Page 30: Return To Factory Default Settings

    Reader Operation 4.2.8 Return to Factory Default Settings You must be very careful before using this command! This erases the entire memory and return all codes to their factory default setting. To return to factory default settings: 1. Enter Programming mode. Green 2.

  • Page 31: Controller Operation

    Controller Operation Controller Operation The AYC-Ex5/T65 can function both as a reader and as a controller. If the unit is connected to Rosslare’s secured intelligent power supply, it functions as a controller indicated by two beeps immediately after power-on reset.

  • Page 32: Modes Of Operation

    Controller Operation  Secure A Secure user must have a Primary and Secondary code programmed; the two codes cannot be the same. The Secure user can gain access when the unit is in any of its three modes of operation. In Normal mode, the Secure user must use the Primary code to gain entry.

  • Page 33: Secure Mode

    Controller Operation 5.2.3 Secure Mode The left LED is red. Only Secure and Master users can access the premises in Secured mode. A Secure user must enter the Primary and Secondary codes to gain entry. After entering the Primary code, the right LED flashes green for 10 seconds, during which the Secondary code must be entered.
  • Page 34 Controller Operation 2. Press # to confirm the mode change. The left LED stops flashing. Green 5.2.4.3 Changing from Normal Mode to Bypass Mode See Section Error! Reference source not found. to create/modify the Normal/Bypass code. To change from Normal to By pass mode: 1.

  • Page 35: Auxiliary Input And Output

    REX Function The REX button is connected to Rosslare’s secured intelligent power supply. The REX button must be located inside the premises to be secured and is used to open the door without the use of a PIN code. It...

  • Page 36: Secured Intelligent Power Supply

    Relay only begins its count down once the REX button is released. Secured Intelligent Power Supply Rosslare’s secured intelligent power supplies are designed for use with Rosslare's secured standalone access control units, including the AYC-Ex5/T65 series. The AYC-Ex5/T65 units are designed to operate indoors and are installed within the secured premises.

  • Page 37: Entering Programming Mode

    Controller Operation Table 4 shows the names of all the controller programming menus. It also shows of all the default factory codes and settings for the units. Table 4: Controller Programming Menu Menu Menu Description Default digits digits digits digits Changing Lock Strike Code 2580 25802...

  • Page 38: Exiting Programming Mode

    Controller Operation To enter Programming mode: 1. Press # twice. The left LED turns off and the right LED turns red. 2. Enter your 4-digit Programming code. The right LED turns green. Green 5.9.2 Exiting Programming Mode To ex it Programming mode: 1.

  • Page 39: Changing Auxiliary Code

    Controller Operation To change the Lock Strike code: 1. Enter Programming mode. Green 2. Press 1 to enter Menu 1. The left LED turns red. Red Green 3. Enter the new Strike Code 1 code. You hear three beeps. The system returns to Normal mode. Green 5.9.4 Changing Auxiliary Code...

  • Page 40: Changing The Programming Code

    Controller Operation You hear three beeps. The system returns to Normal mode. Green 5.9.5 Changing the Programming Code • Programming code cannot be erased, meaning the code 0000 is not valid and does not erase the Programming code. • The factory 4-digit Programming code is 1234. To change the Programming code: 1.

  • Page 41: Changing The Normal/Bypass Code And Door Chime Settings

    Controller Operation 3. Enter the new Normal/Secure code. You hear three beeps. The system returns to Normal mode. Green 5.9.7 Changing the Normal/Bypass Code and Door Chime Settings To change the Normal/By pass code and door chime settings: 1. Enter Programming mode. Green 2.

  • Page 42: Setting Fail Safe/Secure Operation, Tamper Siren And Lock Strike Release Time

    Controller Operation 5.9.8 Setting Fail Safe/Secure Operation, Tamper Siren and Lock Strike Release Time The default value is 0004, which corresponds to Fail Secure operation, no siren, and a 4-second Lock Strike release time. To set the Fail Safe/ Secure Operation, Tamper Siren and Lock Strike Release Time: 1.

  • Page 43: Defining The Auxiliary Input And Output

    Controller Operation 5.9.9 Defining the Auxiliary Input and Output The default auxiliary setting is 2004. To define the aux iliary input and output: 1. Enter Programming mode. Green 2. Press 6 to enter Menu 6. The left LED flashes green. Green Green 3.

  • Page 44: Table 5: Quick Reference Guide For Auxiliary Mode Setting

    Controller Operation Table 5: Quick Reference Guide for Auxiliary Mode Setting Aux. Aux. Input Aux. Output Aux. Aux. Settings Mode Function Activated Relay (in seconds) AUX REX Valid code or N.O. 01 to 99 Aux. AUX REX relay release time Normal/Secure Valid code N.O.
  • Page 45 Controller Operation The following subsections describe each Auxiliary mode. 5.9.9.1 Auxiliary Mode 0 Auxiliary input function: Activates the auxiliary output Auxiliary output activated by: Valid user code, Auxiliary code, and Auxiliary input For example, in Auxiliary Mode 0, the controller can function as a two-door controller.
  • Page 46 Controller Operation 5.9.9.3 Auxiliary Mode 2 Auxiliary input function: Toggles Normal/Secure modes Auxiliary output activated by: Bell Button () For example, in Auxiliary Mode 2, the auxiliary relay can function as a general purpose time switch that can be activated when  is pressed. The auxiliary setting establishes for how long the auxiliary relay is to be activated.
  • Page 47 Controller Operation 5.9.9.6 Auxiliary Mode 5 Auxiliary input function: Door Monitor Auxiliary output activated by: Shunt (explanation below) For example, in Auxiliary Mode 5, the controller is capable of shunting an alarm system. In this mode, the auxiliary input is to be wired to the magnetic contact switch on the door.
  • Page 48 Controller Operation if the door does not close prior to the end of this period, the controller activates the auxiliary relay. The auxiliary setting defines the door-ajar time. 5.9.9.9 Auxiliary Mode 8 This mode controls the door indicator (right LED). The right LED is not lit when: •...

  • Page 49: Setting The Lockout Feature

    Controller Operation 5.9.10 Setting the Lockout Feature If the controller is presented with wrong codes (PIN or card) consecutively several times, the unit goes into Lockout mode. When a lockout occurs, the controller keypad and reader are locked so no codes can be entered until the set lockout period expires. During Lockout, the left LED is Off, the right LED flashes red, and the controller beeps every two seconds.

  • Page 50: Setting The Backlight Behavior

    Controller Operation 5.9.11 Setting the Backlight Behavior The controller allows you to define the way the unit’s backlight works. To set the backlight behavior: 1. Enter Programming mode. Green 2. Press 6 to enter Menu 6. The left LED flashes green. Green Green 3.
  • Page 51 Controller Operation 5.9.12.2 Secondary Codes  Secondary codes can only be enrolled to a user slot that already has a Primary code enrolled but has no Secondary code.  Secondary codes do not have to be unique, meaning multiple users can all hold the same Secondary code. ...
  • Page 52 Controller Operation 5.9.12.4 Enrolling Primary and Secondary Codes using Standard Method To enroll Primary and Secondary codes using the Standard method: 1. Enter Programming mode. Green 2. Press 7 to enter Menu 7. The right LED turns orange. Orange 3. Enter the 3-digit user slot number between 001 and 500 that you wish to enroll a Primary or Secondary code to.
  • Page 53 Controller Operation 4. Perform one of the following:  Enter the 4- to 8-digit PIN code that you want to assign as the Primary or Secondary code for this slot number.  Present your user card that you want to assign as the Primary or Secondary code for this slot number.
  • Page 54 Controller Operation 4. Perform one of the following:  Enter the 4- to 8-digit PIN code belonging to the user for whom you wish to add a Secondary code.  Present the user card belonging to the user for whom you wish to add a Secondary code.

  • Page 55: Deleting Primary And Secondary Codes

    Controller Operation 5.9.13 Deleting Primary and Secondary Codes There are two methods to delete Primary and Secondary codes: the Standard Method and the Code Search Method. When deleting a user slot, both the Primary code and the Secondary code are erased. It is recommended that a record be kept of added and deleted users so that it is easier to keep track of which user slots are empty and which user slots are not.
  • Page 56 Controller Operation If the Programming code is valid, three beeps are heard and the controller returns to Normal mode. If the Programming code is invalid, a long beep is heard and the controller returns to Normal mode. 5.9.13.2 Deleting Primary and Secondary Codes using Search Method To delete the Primary and Secondary codes using the Code Search Method:...

  • Page 57: Relay Codes Assignment

    Controller Operation 5. Enter your 4-digit Programming code to confirm the deletion. If the Programming code is valid, you hear three beeps and the unit returns to Normal mode. If the Programming code is invalid, you hear a long beep and the unit returns to Normal mode.
  • Page 58 Controller Operation 4. Enter the assignment digit for the current user slot: 1 activates the Lock Strike relay only default  2 activates the Auxiliary relay only  3 activates the Lock Strike and Auxiliary relays  If the assignment code is valid, the mode indicator stops flashing. The controller is now waiting for another slot number.
  • Page 59 Controller Operation 4. Perform one of the following:  Enter the 4- to 8-digit PIN code of the Primary code belonging to the user you want to delete.  Present the user card of the Primary code belonging to the user you want to delete.

  • Page 60: Pin Code Length/Factory Default Settings

    Controller Operation 5.9.15 PIN Code Length/Factory Default Settings You must be very careful before using this command! Changing the PIN code length also erases the entire memory contents, including all user and special codes, and return all codes to their factory default settings. To change the PIN code length: 1.

  • Page 61: Exiting Secure Mode If Normal/Secure Code Was Lost

    Controller Operation 4. Release the REX button. 5. You now have 10 seconds to program a new Programming code into the access control unit using the initial default code 1234, before the controller reverts to the existing code. 5.9.17 Exiting Secure Mode if Normal/Secure Code was Lost The unit must be in Secure mode;...

  • Page 62: Declaration Of Conformity

    Declaration of Conformity Declaration of Conformity This declaration applies to the AYC-T65 model only. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:  This device may not cause harmful interference. ...

  • Page 63: Limited Warranty

    The full ROSSLARE Limited Warranty Statement is available in the Quick Links section on the ROSSLARE website at www.rosslaresecurity.com. Rosslare considers any use of this product as agreement to the Warranty Terms even if you do not review them. AYC-Ex5/T65 Series Installation and Programming Manual...
