Installation

3. Installation
Installation of an RFID reader adjacent to metallic surfaces might alter the
reader's specifications. To diminish this interference, use a plastic spacer when
mounting the reader.
The AYC-W6500 is easy to install and fits all standard US and UK gang boxes.
3.1

Mounting

Before starting, select the location to mount the unit. This location should be
at shoulder height.
To mount the unit on a surface:
1. Peel off the back of the self-adhesive mounting label template and place it
on the required mounting location.
2. Using the template as a guide, drill four holes into the surface. The
required hole size is marked on the template.
3. Drill an additional 10-mm (
unit on a metallic surface, cover the inside of the hole with a grommet or
electrical tape.
4. At the bottom of the unit's case, remove the screws (see Figure 1).

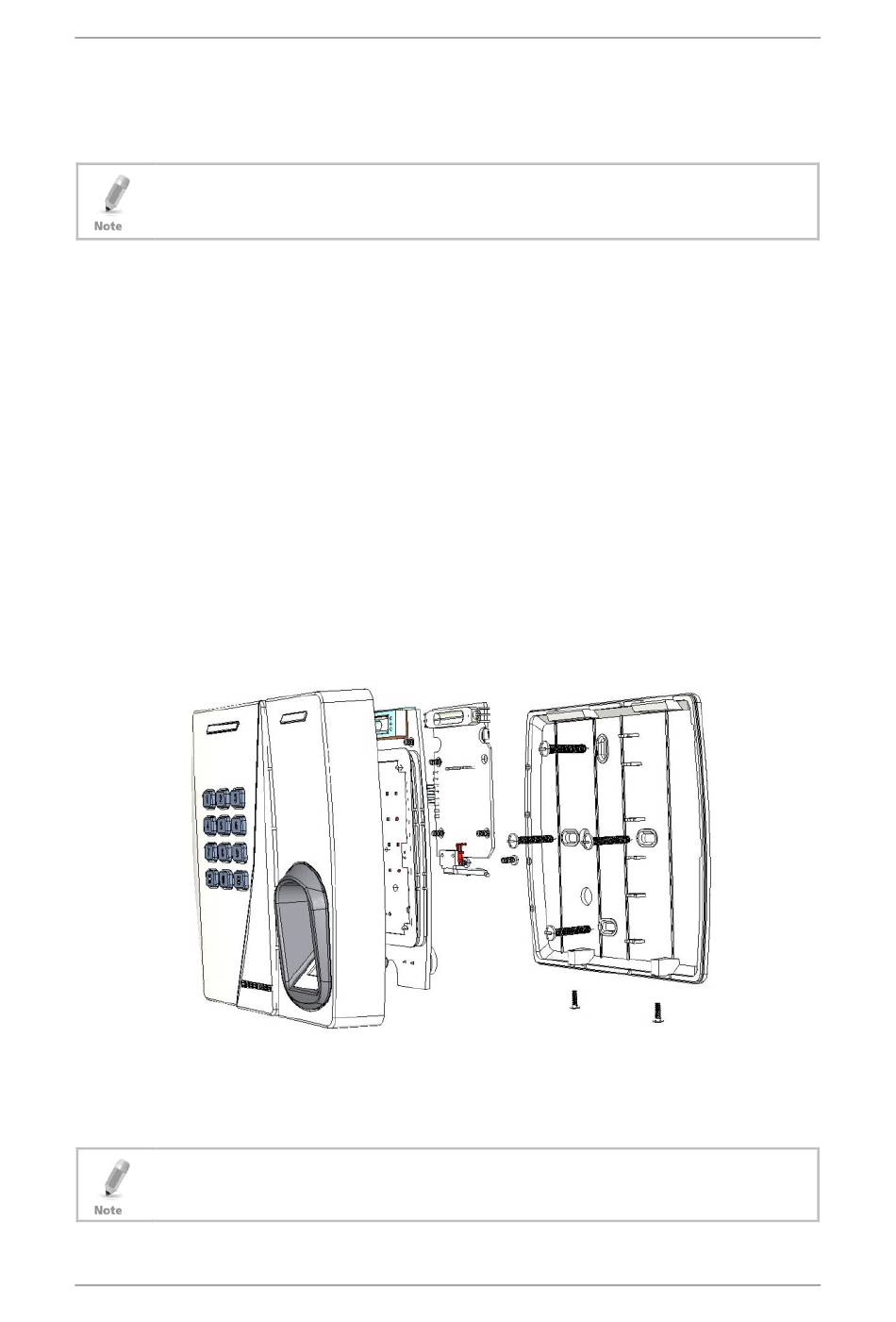

Figure 1: AYC-W6500 Assembly and Mounting

5. Insert the unit's cable wire into the cable hole and wire the unit as
described in Section 3.2.
6. Screw the back plate into the surface (Figure 1). Ensure the screws are the
size specified on the installation template.
The unit can also be mounted using strong epoxy glue. After application, firmly
hold the unit in place until the glue dries.
12
7
/ ") hole for the cable. When installing the
16
AYC-W6500 Installation and Programming Manual
