CompactFlash
Connector
(CON3)
Altera Corporation
May 2007

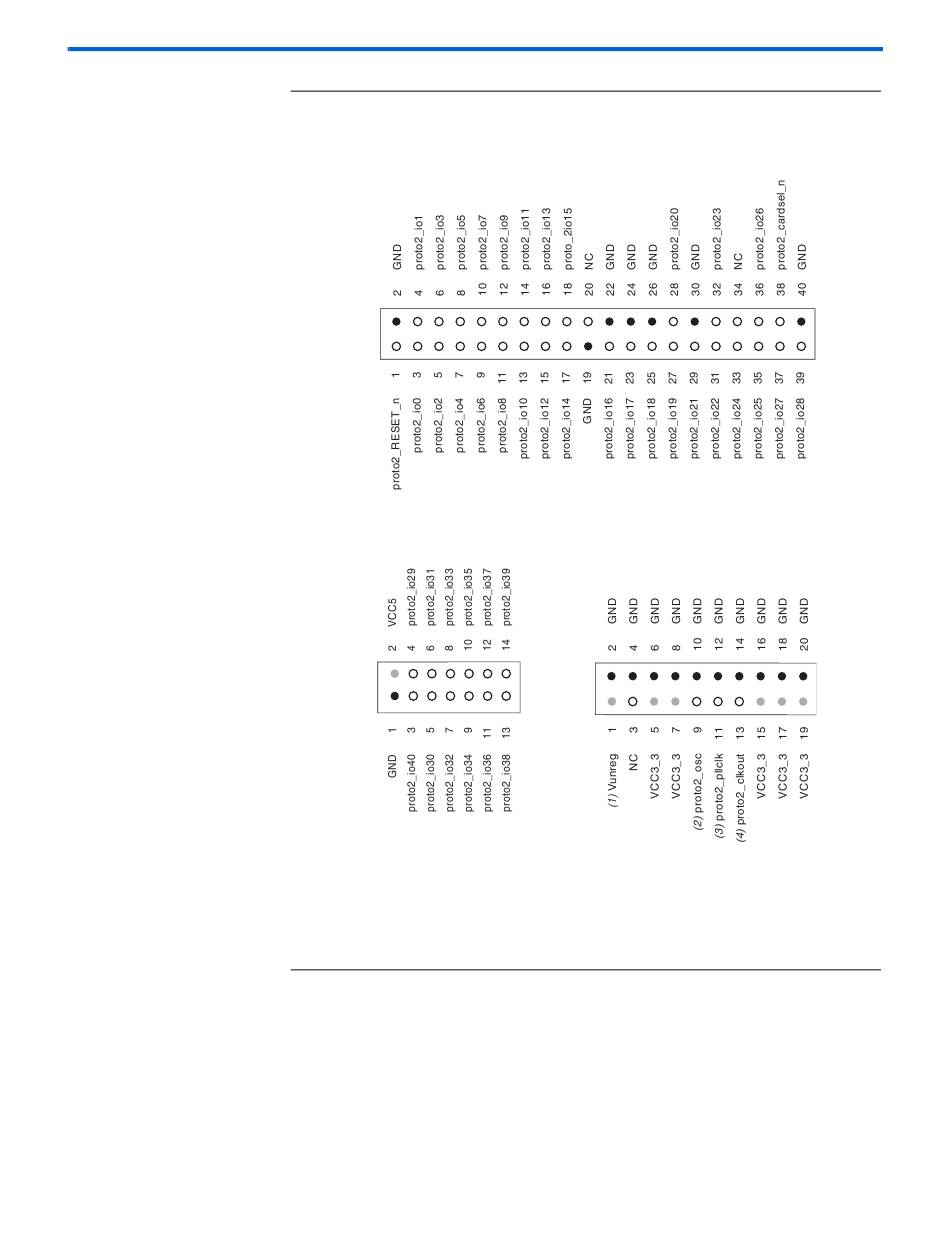

Figure 2–9. PROTO2 Pin Information – J15, J16 & J17
J15
Notes to Figure 2–9:
(1) Unregulated voltage from DC power supply.
(2) Clk from board oscillator.
(3) Clk from FPGA.
(4) Clk output from PROTO2 card to FPGA.
The CompactFlash connector header (CON3) enables hardware designs
to access a CompactFlash card. Refer to
access modes are supported:
■
ATA (hot swappable mode)
■
IDE (IDE hard disk mode)
Reference Manual
J16
J17
Figure 2–10. The following two
Nios Development Board Cyclone II Edition
Board Components
2–23
