When Mask was enabled for the selected bandwidth:
The end of tolerance or fail point may be displayed as a red cursor
value.
Good is the good balance threshold mask for the currently selected
bandwidth, represented by green in the graph.

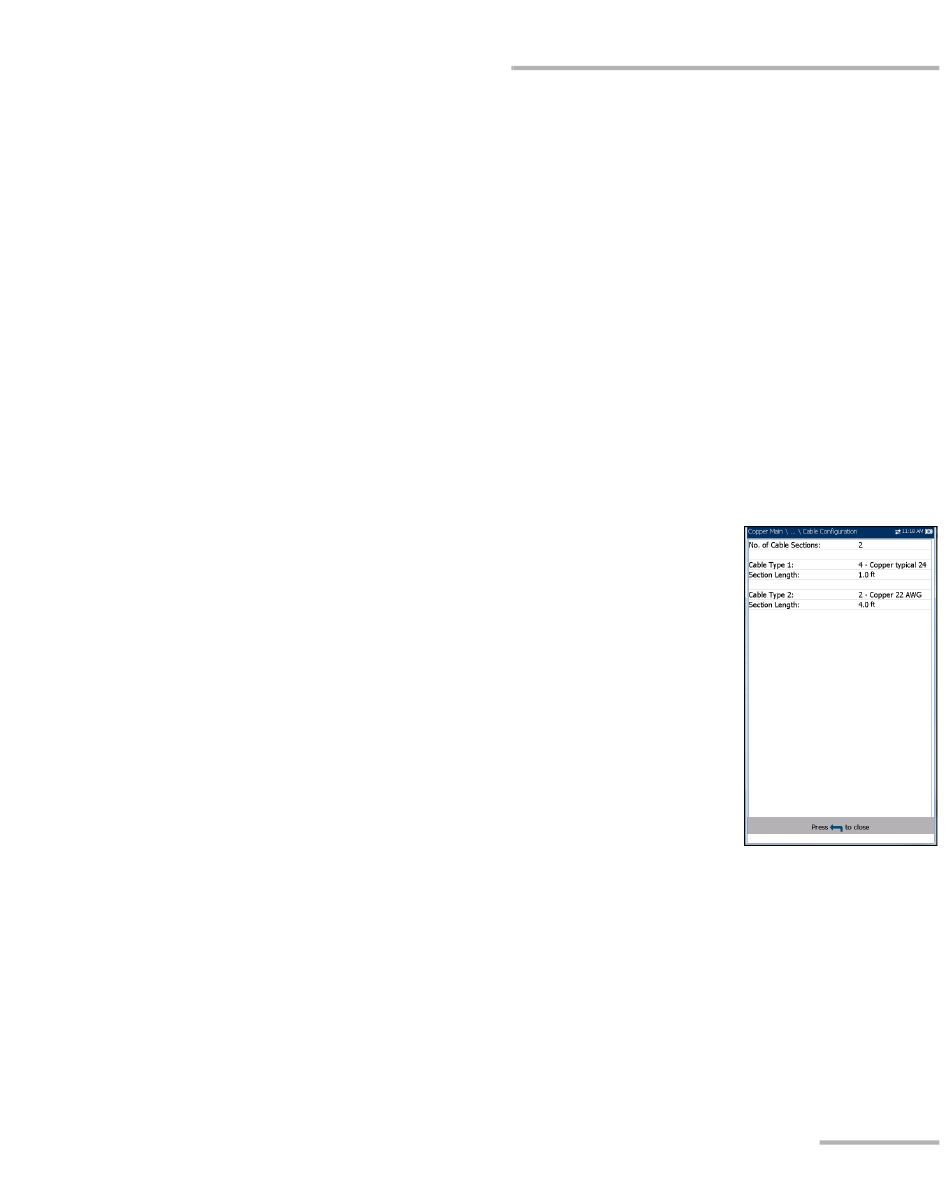

Result Details Cable Configuration
The Cable Configuration page in the Results Details
allows you to view the cable parameters set for the
WB Attenuation test.
No. of Cable Sections is the number of
consecutive cable sections, with a maximum of 4.
Cable Type # displays the number of a cable
section set above, ID, Cable Name and Fill.
Section Length identifies the cable length of each
section.
Copper and G.fast/VDSL2/ADSL2+ Multi-play Test Set
Pan - use left/right arrow keys to pan the x-axis and the up/down
arrow keys to pan the y-axis.
1:1 resets the x-axis and y-axis limits to full scale.
Return To Results removes these function keys and displays the
Attenuation results page.
Frequency Tests
WB Attenuation
