DSL/IP Connection Summary

DSL/IP Connection Summary

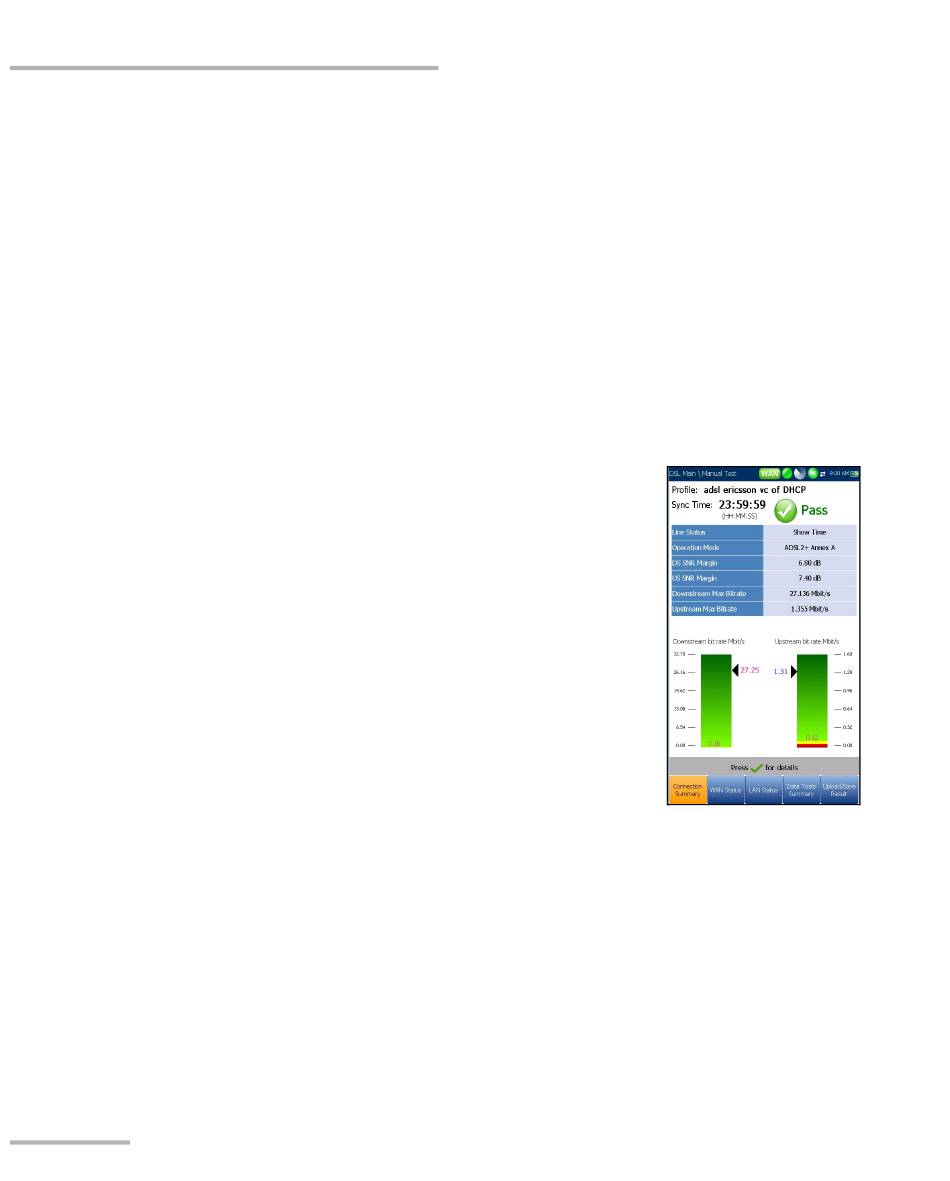

The Connection Summary tab allows you to view the pass/fail status and
details of the test results.
the software will automatically downloadunit will automatically reboot.
The MaxTester checks for new software every 2 weeks.When the Test
Interface for Auto Test or Manual Test is set to ADSL2+ or VDSL2 bonding
mode, there will be 2 columns of results. While the test is running, 2 soft
LEDs will appear above these columns displaying the 2-DSL line condition.
The pass/fail status is based on the 2-DSL line connection state and
combined data rate. Once the test is completed, these 2 soft LEDs
disappear and the pass/fail icon is displayed at the top of the screen.
Profile displays the name of the current profile

that results were saved to. You can change the
Profile within a test once it is stopped. Pressing
the up arrow key opens a list of profiles from
which you can select. Use the on-screen function
buttons to navigate, Select a new profile, or
Cancel and restore the test result screen.
Sync Time is a count-up timer (maximum 99 h)

that starts counting only when the Line Status
reaches Show Time. In the case of bonding, both
lines must reach Show Time before the counter
starts.
Line Status displays the status of the line under test during negotiation

with the DSLAM. The value changes from Idle /Activate /Handshake
/Training /Show Time for ADSL2+ or VDSL2 mode.
Note: When loading firmware into the Broadcom chipset, the Line Status value
displays Loading M:SS, where M:SS is a count down timer.
Operation Mode is the xDSL mode of operation, bonded or

non-bonded, as negotiated between the unit and the DSLAM.
