xTalk TDR

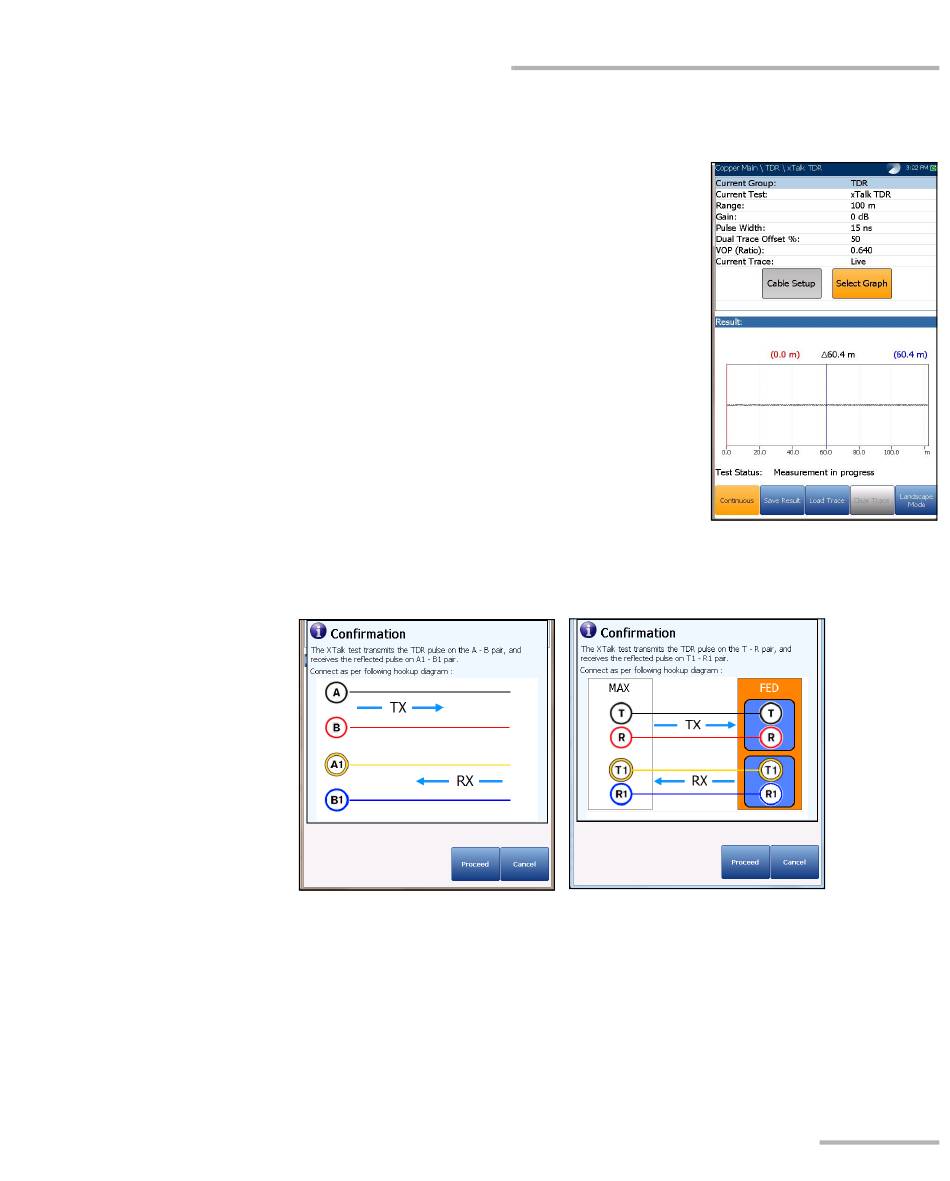

The xTalk TDR test transmits on one pair and
receives on pair two allowing you to detect and
isolate split pairs which may be causing service
disruptions. The test adds a hookup diagram in the
form of a Confirmation window at start up,
showing you how to connect your cables for this
test.
When FED is Enabled on the FED Setup page,
both the T-R/A-B and T1-R1/A1-B1 pairs will be
terminated at the FED. The hookup diagram uses
graphic and textual components.
Proceed button closes the hookup diagram

prompt and starts the test.
Cancel button closes the hookup diagram prompt only.

The Continuous function displays the line trace and is continuously on and
ready to use. It displays and updates results in real time, in either Portrait
or Landscape Mode, until you stop the test. The last valid results then
remain displayed.
