Application Settings

Before executing the copper tests, set up the software settings and values
for the cables. The MAX-635G allows you to save standard parameter
settings to different profiles and reuse them as needed.
To access Application Settings:
From the Home pane, select Copper Test, then Setup, and
Application Settings.

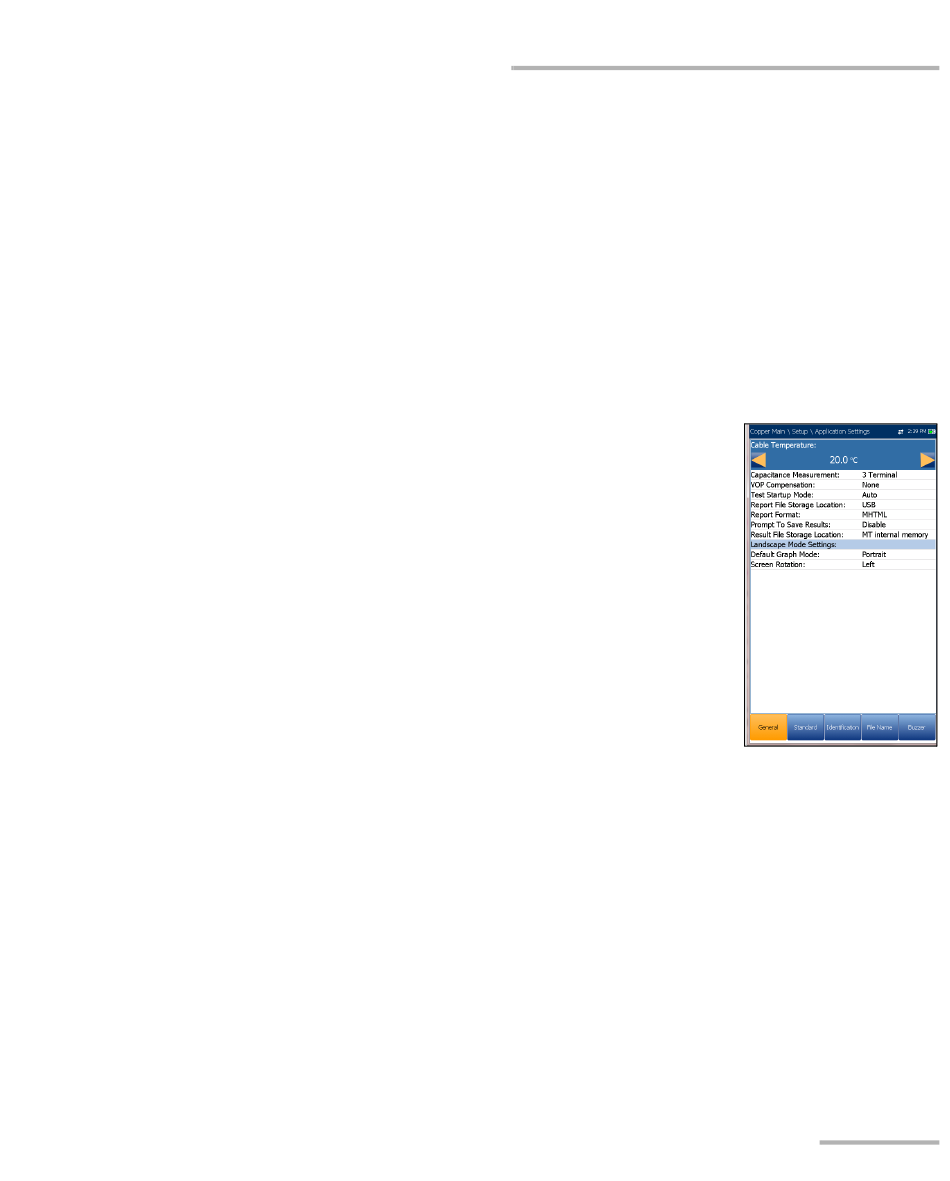

General
The General tab allows you to configure the unit with
specific measurement values and graph viewing
settings.
Each parameter is described below:
Cable Temperature specifies the temperature of

the cable under test in either F (Fahrenheit) or C
(Celsius) units.
Capacitance Measurement is either 3 Terminal

or 2 Terminal. The latter method measures the
capacitance across the 2 terminals specified
(either T-R, T-G, R-G or A-B, A-E, B-E), whereas the
3 Terminal method measures the capacitance across the 2 terminals
specified, and shorts the remaining (or unspecified) terminal to G/E.
The 3 Terminal method is more common and is the default. Continue
to use it unless you know you need the 2 Terminal method.
Note: In order to correctly determine cable length by using the Capacitance
Measurement, the Cable Book must contain both 3/2 Terminal values.
Note: The accuracy of the 2 Terminal Capacitance Measurement is impacted by
the use of the FED, and the 3 Terminal method is recommended to be used
instead.
