Result Details Cable Setup

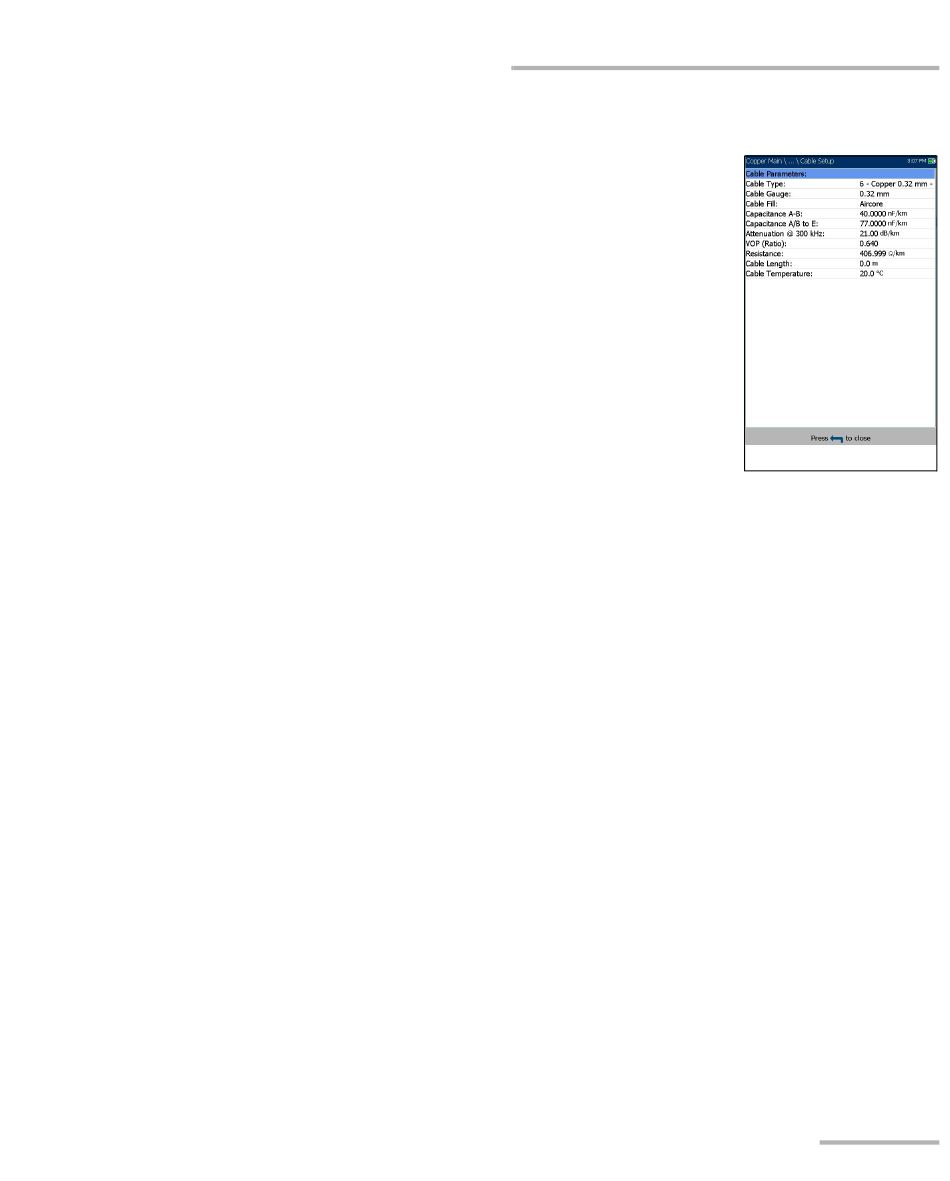

The Cable Setup page in the Result Details allows
you to view the Cable Parameters set for the
FaultMapper test.
Cable Type displays the ID, Cable Name and Fill,

(with its associated parameters) from the current
Cable Book, used for testing.
Cable Gauge identifies the gauge system for

measuring wire sizes, in AWG (American Wire
Gauge) units or mm (metric wire size).
Cable Fill is the type of material the cable is filled

with: Aircore, Jelly, Pulp, 5 PR, or 2 PR.
Capacitance T-R/A-B is the value for the capacitance per length

constant.
Capacitance T/R to GND/A/B to E is the value for the capacitance per

length to ground constant.
Attenuation @ 300 kHz is the value for the reduction in signal strength

or insertion loss of the cable.
VOP is the velocity of propagation defined as m/μsec (meters per

microsecond), a ratio, or percentage of the speed of light for the cable.
Resistance is the value for the resistance constant of the cable.

Cable Length is the length of the cable set to provide more accurate

results.
Cable Temperature is the temperature of the cable under test in either

°F or °C.
