Frequency Tests

TX/RX Tone

TX/RX Tone
The TX/RX Tone tests allow you to generate tones and measure the
frequencies and levels of incoming signals.
Send Tone

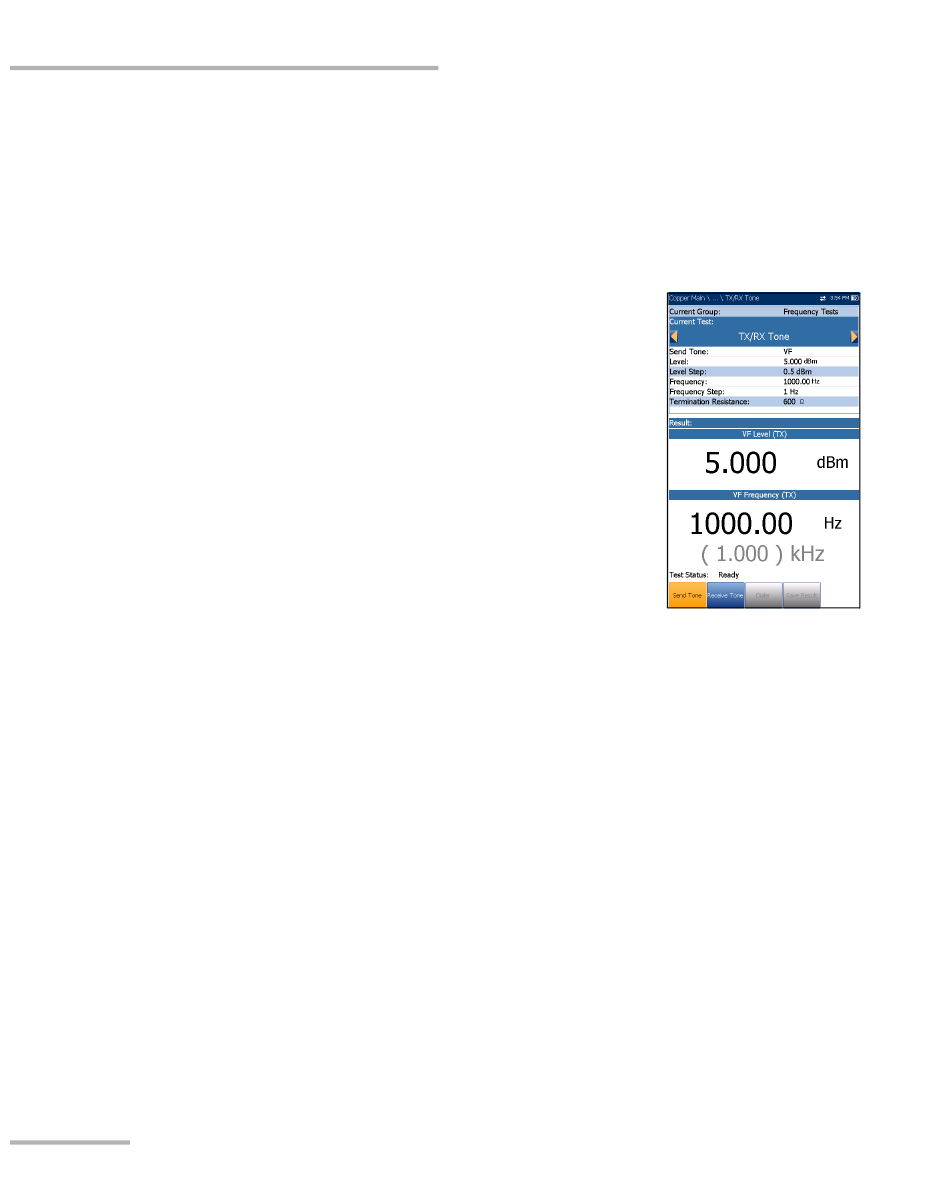

The Send Tone (TX) pane allows you to configure and
transmit a tone to a downstream device in the loop.
Current Group is the current test group name, for

example Frequency Tests.
Current Test displays the test being measured.

Here you can switch to another frequency test
from the given list. However, this action will
terminate the ongoing measurement test.
Send Tone allows you to select either a VF (voice

frequency) or WB (wideband) signal (if this option
was purchased).
Level allows you to set the tone level value.

Level Step (read only) displays the level step of the uplink frequency.

Frequency allows you to set a frequency value for the transmitting

tone.
Frequency Step lists a choice of frequency step values.

Termination Resistance lists a resistance value for the termination of

the Send Tone.
