EXFO MaxTester 635G User Manual page 358

Setting Up DSL/IP Tests
Test Setup
Channel List Setup

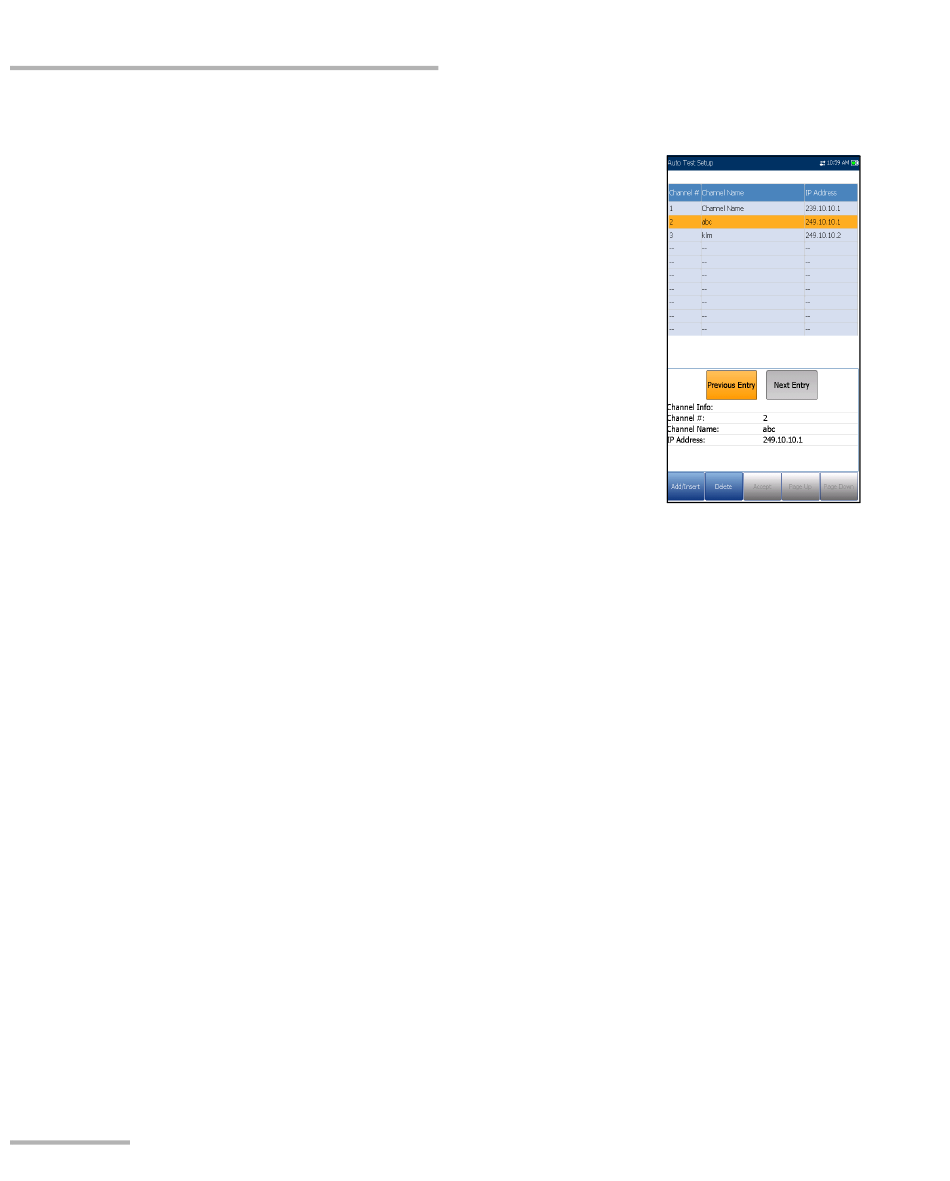

The Channel List Setup page in the IPTV test setup
provides a tool for you to create an alias table. It
allows you to join/leave an IPTV stream using a
symbolic name or TV channel number instead of the
IP address. Maximum entries in the table are 100,
divided into pages.
Channel Info lists 3 editable parameters:




Previous/Next Entry buttons highlight the previous/next entry in the

table (up/down direction). When the highlight reaches the first/last
entry of the alias table page, the button(s) is disabled.
On-screen function buttons:





348
Channel # is a numeric value from 1 to 9999.
Channel Name is a 24-character
alphanumeric entry.
IP Address is a multicast address from
224.1.1.1 to 239.255.255.254.
Add/Insert adds currently edited channel info into the alias table
below the highlighted entry and moves the highlight to the newly
added entry. If the page is full, the bottom entry moves to the next
page. Selecting the highlight placement allows you add and group
entries with similar parameters.
Delete removes the highlighted entry in the alias table. If the
deleted entry was also present in the IPTV Channel Analysis list or
Join/leave Test list in Auto IPTV Test Setup page, it will also be
removed from those lists.
Accept replaces the edited value for the current highlighted entry.
Use this function for modification purposes.
Page Up/Down display the previous/next page(s) of the alias table.
If current page is the first/last page, the button(s) are disabled.
MAX-635G
