12
CONNECTIONS AND MAINTENANCE

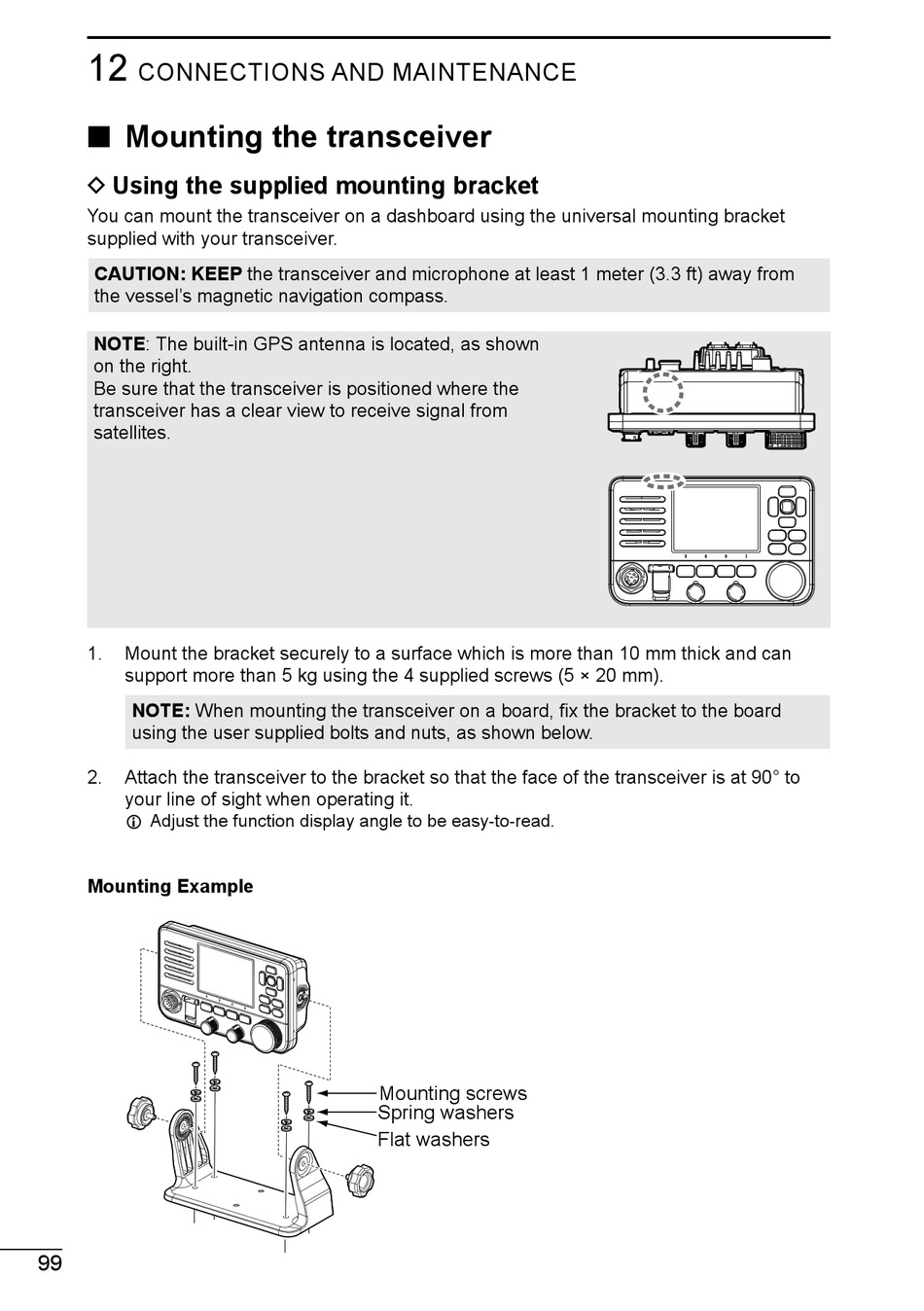

■ Mounting the transceiver

D Using the supplied mounting bracket
You can mount the transceiver on a dashboard using the universal mounting bracket
supplied with your transceiver.
CAUTION: KEEP the transceiver and microphone at least 1 meter (3.3 ft) away from
the vessel's magnetic navigation compass.
NOTE: The built-in GPS antenna is located, as shown
on the right.
Be sure that the transceiver is positioned where the
transceiver has a clear view to receive signal from
satellites.
1. Mount the bracket securely to a surface which is more than 10 mm thick and can
support more than 5 kg using the 4 supplied screws (5 × 20 mm).
NOTE: When mounting the transceiver on a board, fix the bracket to the board
using the user supplied bolts and nuts, as shown below.
2. Attach the transceiver to the bracket so that the face of the transceiver is at 90° to
your line of sight when operating it.
L Adjust the function display angle to be easy-to-read.
Mounting Example
99
Mounting screws
Spring washers
Flat washers
