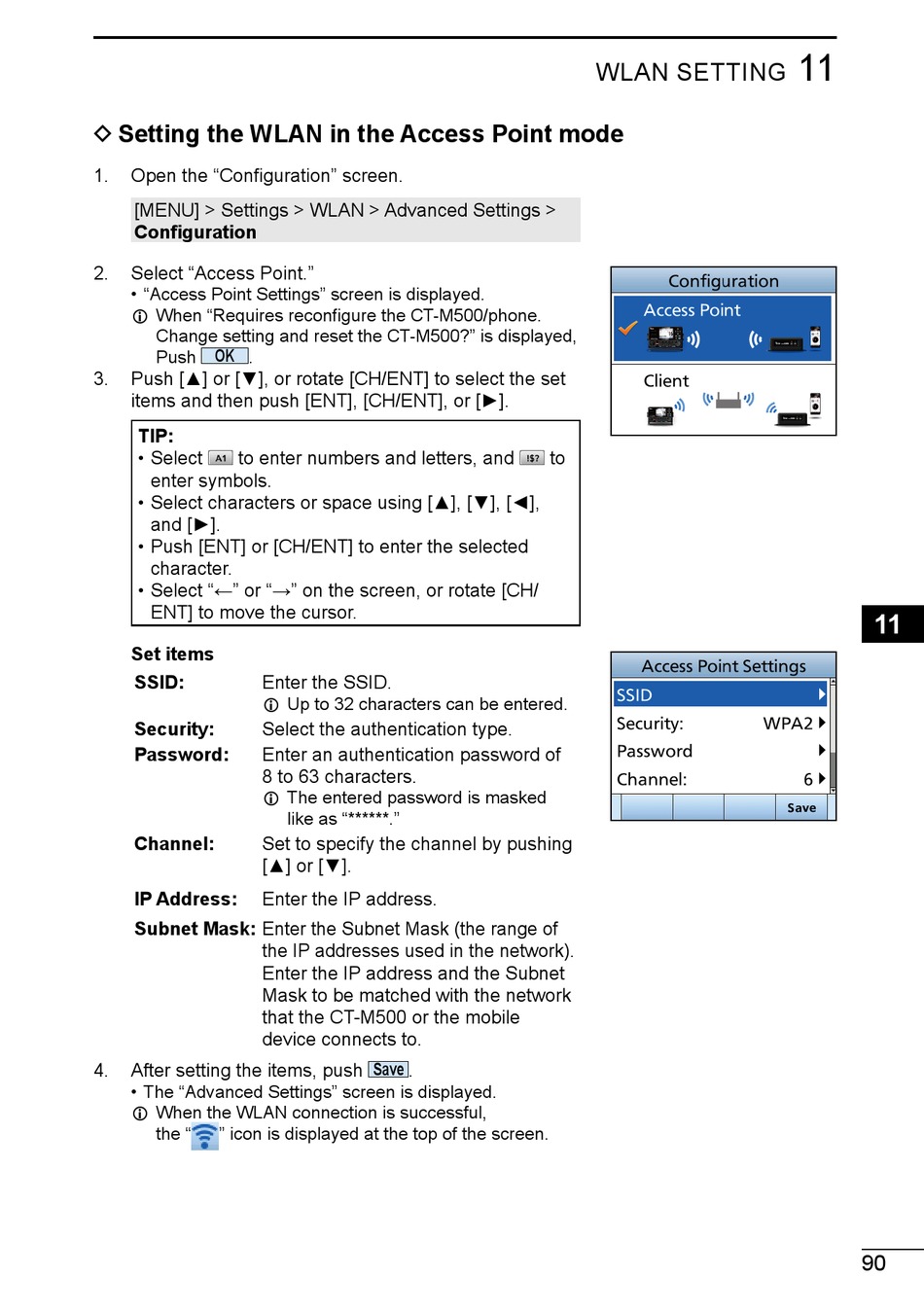

D Setting the WLAN in the Access Point mode
1. Open the "Configuration" screen.
[MeNU] > Settings > WLAN > Advanced Settings >
Confi guration
2. Select "Access Point."
• "Access Point Settings" screen is displayed.
L When "Requires reconfi gure the CT-M500/phone.
Change setting and reset the CT-M500?" is displayed,
OK .
Push
3. Push [▲] or [▼], or rotate [CH/ENT] to select the set
items and then push [ENT], [CH/ENT], or [►].
TIP:
• Select to enter numbers and letters, and
enter symbols.
• Select characters or space using [▲], [▼], [◄],
and [►].
• Push [eNT] or [CH/eNT] to enter the selected
character.
• Select "←" or "→" on the screen, or rotate [CH/
eNT] to move the cursor.
Set items
SSID: enter the SSID.
L Up to 32 characters can be entered.
Security: Select the authentication type.
Password: enter an authentication password of
8 to 63 characters.
L The entered password is masked
Channel: Set to specify the channel by pushing
[▲] or [▼].
IP Address:
enter the IP address.
Subnet Mask: enter the Subnet Mask (the range of
the IP addresses used in the network).
enter the IP address and the Subnet
Mask to be matched with the network
that the CT-M500 or the mobile
device connects to.
4. After setting the items, push
• The "Advanced Settings" screen is displayed.
L When the WLAN connection is successful,
the " " icon is displayed at the top of the screen.
like as "******."
Save .
