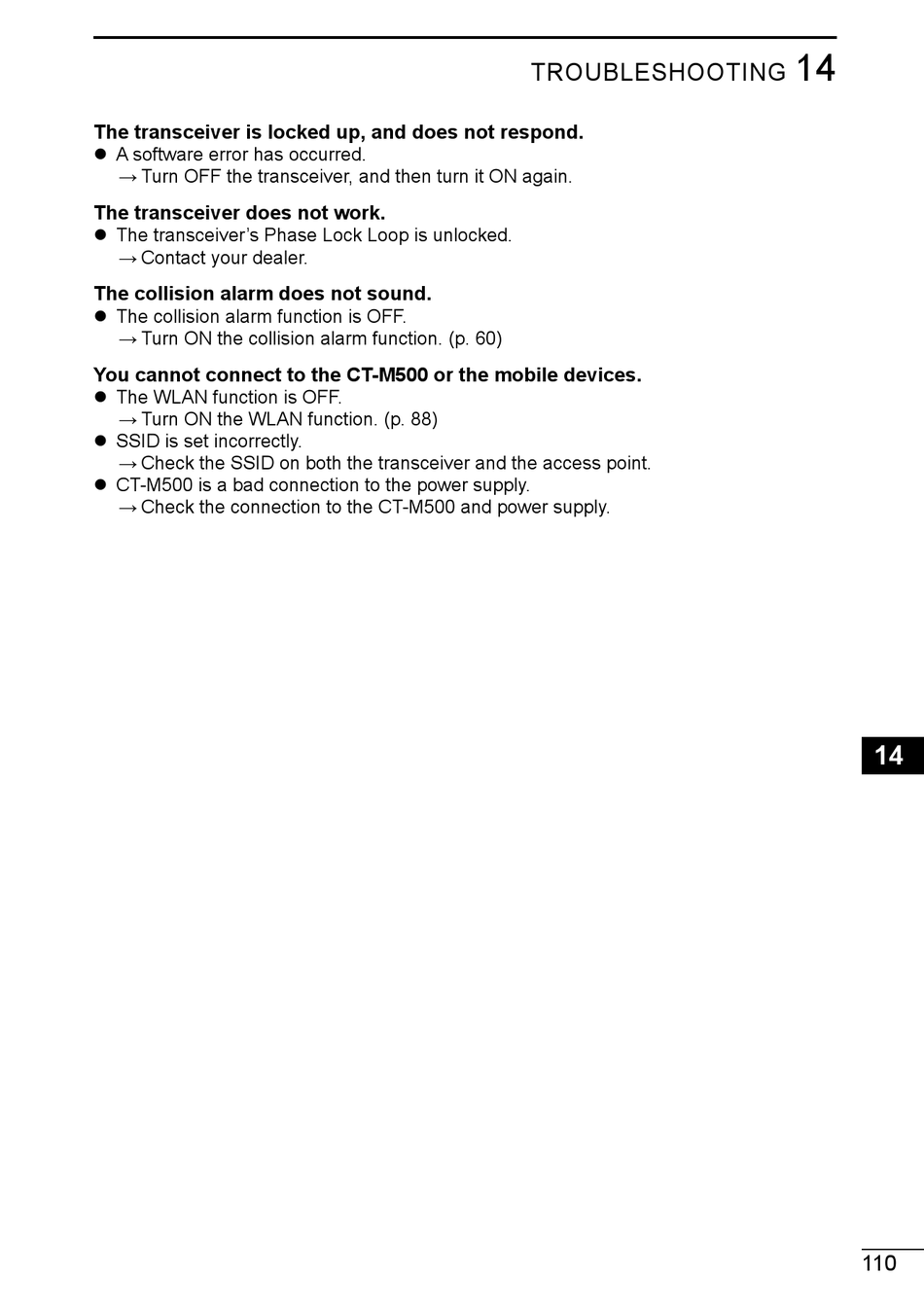

Icom IC-M510 Instruction Manual page 123

The transceiver is locked up, and does not respond.
z A software error has occurred.
→ Turn OFF the transceiver, and then turn it ON again.
The transceiver does not work.
z The transceiver's Phase Lock Loop is unlocked.
→ Contact your dealer.
The collision alarm does not sound.
z The collision alarm function is OFF.
→ Turn ON the collision alarm function. (p. 60)
You cannot connect to the CT-M500 or the mobile devices.
z The WLAN function is OFF.
→ Turn ON the WLAN function. (p. 88)
z SSID is set incorrectly.
→ Check the SSID on both the transceiver and the access point.
z CT-M500 is a bad connection to the power supply.
→ Check the connection to the CT-M500 and power supply.
TROUBLESHOOTING
