9
OTHER FUNCTIONS

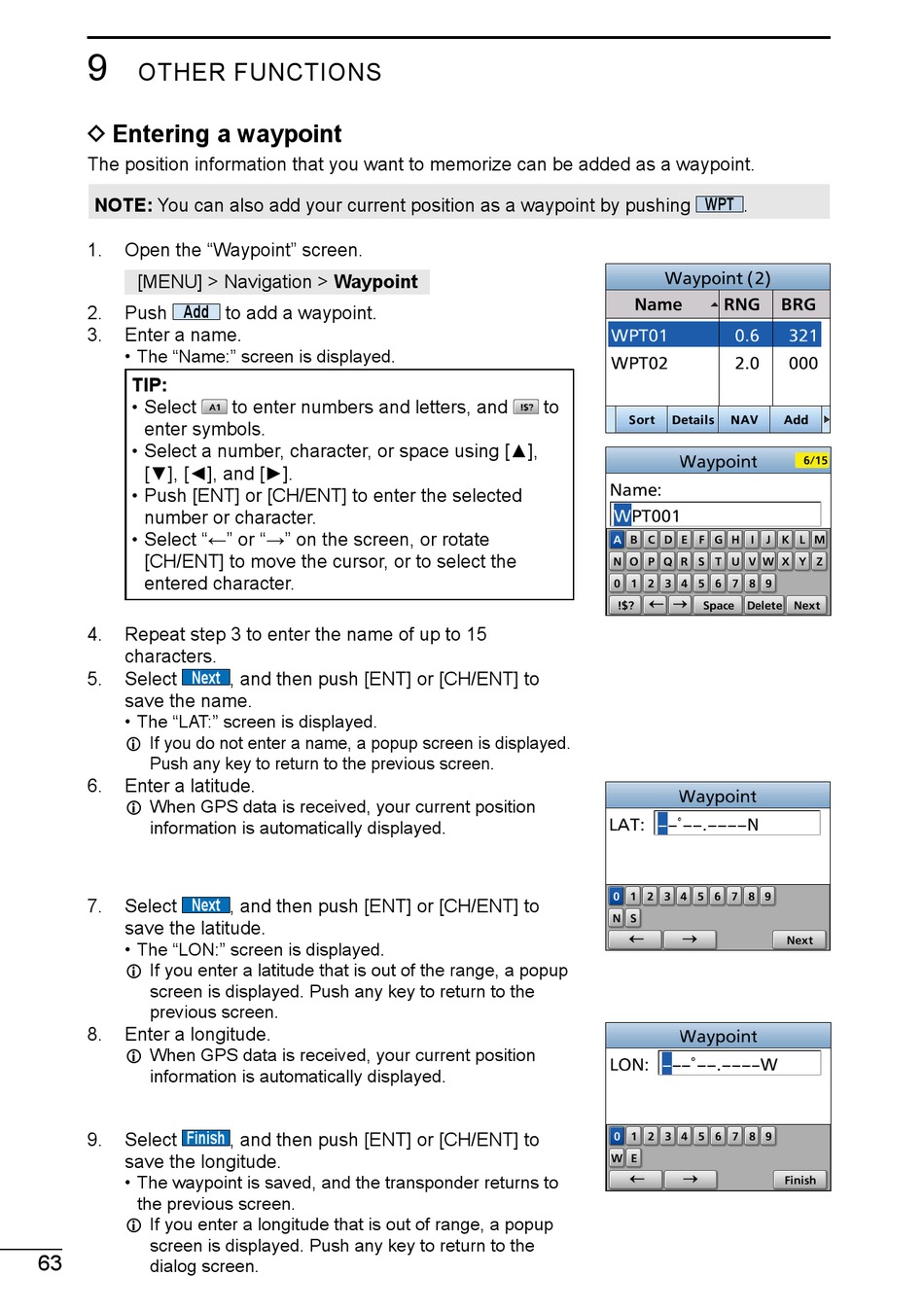

D Entering a waypoint
The position information that you want to memorize can be added as a waypoint.
NOTE: You can also add your current position as a waypoint by pushing
1. Open the "Waypoint" screen.
[MENU] > Navigation > Waypoint
2. Push Add
3. Enter a name.
• The "Name:" screen is displayed.
TIP:
• Select
enter symbols.
• Select a number, character, or space using [▲],
[▼], [◄], and [►].
• Push [ENT] or [CH/ENT] to enter the selected
number or character.
• Select "←" or "→" on the screen, or rotate
[CH/ENT] to move the cursor, or to select the
entered character.
4. Repeat step 3 to enter the name of up to 15
characters.
5. Select Next
save the name.
• The "LAT:" screen is displayed.
L If you do not enter a name, a popup screen is displayed.
Push any key to return to the previous screen.
6. Enter a latitude.
L When GPS data is received, your current position
information is automatically displayed.
7. Select Next
save the latitude.
• The "LON:" screen is displayed.
L If you enter a latitude that is out of the range, a popup
screen is displayed. Push any key to return to the
previous screen.
8. Enter a longitude.
L When GPS data is received, your current position
information is automatically displayed.
Finish
9. Select
save the longitude.
• The waypoint is saved, and the transponder returns to
the previous screen.
L If you enter a longitude that is out of range, a popup
screen is displayed. Push any key to return to the
63
dialog screen.
to add a waypoint.
to enter numbers and letters, and
, and then push [ENT] or [CH/ENT] to
, and then push [ENT] or [CH/ENT] to
, and then push [ENT] or [CH/ENT] to
WPT
to
.
