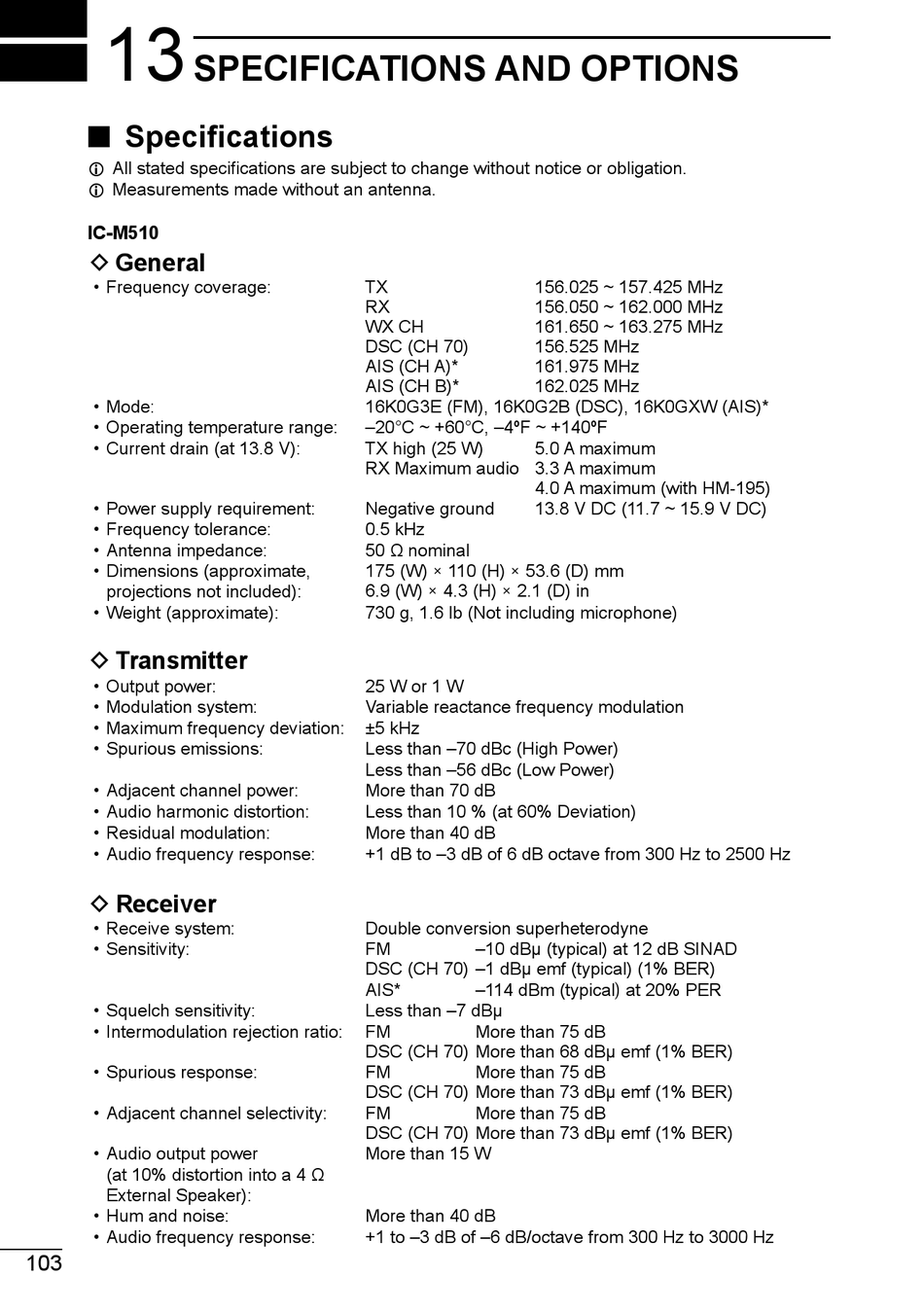

SPECIFICATIONS AND OPTIONS

■ Specifications

L All stated specifications are subject to change without notice or obligation.
L Measurements made without an antenna.
IC-M510
D General
• Frequency coverage:
• Mode:
• Operating temperature range:
• Current drain (at 13.8 V):
• Power supply requirement:
• Frequency tolerance:
• Antenna impedance:
• Dimensions (approximate,
projections not included):
• Weight (approximate):
D Transmitter
• Output power:
• Modulation system:
• Maximum frequency deviation:
• Spurious emissions:
• Adjacent channel power:
• Audio harmonic distortion:
• Residual modulation:
• Audio frequency response:
D Receiver
• Receive system:
• Sensitivity:
• Squelch sensitivity:
• Intermodulation rejection ratio:
• Spurious response:
• Adjacent channel selectivity:
• Audio output power
(at 10% distortion into a 4 Ω
External Speaker):
• Hum and noise:
• Audio frequency response:
103
TX 156.025 ~ 157.425 MHz
RX 156.050 ~ 162.000 MHz
WX CH 161.650 ~ 163.275 MHz
DSC (CH 70) 156.525 MHz
AIS (CH A)* 161.975 MHz
AIS (CH B)* 162.025 MHz
16K0G3E (FM), 16K0G2B (DSC), 16K0GXW (AIS)*
–20°C ~ +60°C, –4ºF ~ +140ºF
TX high (25 W) 5.0 A maximum
RX Maximum audio 3.3 A maximum
4.0 A maximum (with HM-195)
Negative ground 13.8 V DC (11.7 ~ 15.9 V DC)
0.5 kHz
50 Ω nominal
175 (W) × 110 (H) × 53.6 (D) mm
6.9 (W) × 4.3 (H) × 2.1 (D) in
730 g, 1.6 lb (Not including microphone)
25 W or 1 W
Variable reactance frequency modulation
±5 kHz
Less than –70 dBc (High Power)
Less than –56 dBc (Low Power)
More than 70 dB
Less than 10 % (at 60% Deviation)
More than 40 dB
+1 dB to –3 dB of 6 dB octave from 300 Hz to 2500 Hz
Double conversion superheterodyne
FM –10 dBμ (typical) at 12 dB SINAD
DSC (CH 70) –1 dBμ emf (typical) (1% BER)
AIS* –114 dBm (typical) at 20% PER
Less than –7 dBμ
FM More than 75 dB
DSC (CH 70) More than 68 dBμ emf (1% BER)
FM More than 75 dB
DSC (CH 70) More than 73 dBμ emf (1% BER)
FM More than 75 dB
DSC (CH 70) More than 73 dBμ emf (1% BER)
More than 15 W
More than 40 dB
+1 to –3 dB of –6 dB/octave from 300 Hz to 3000 Hz
