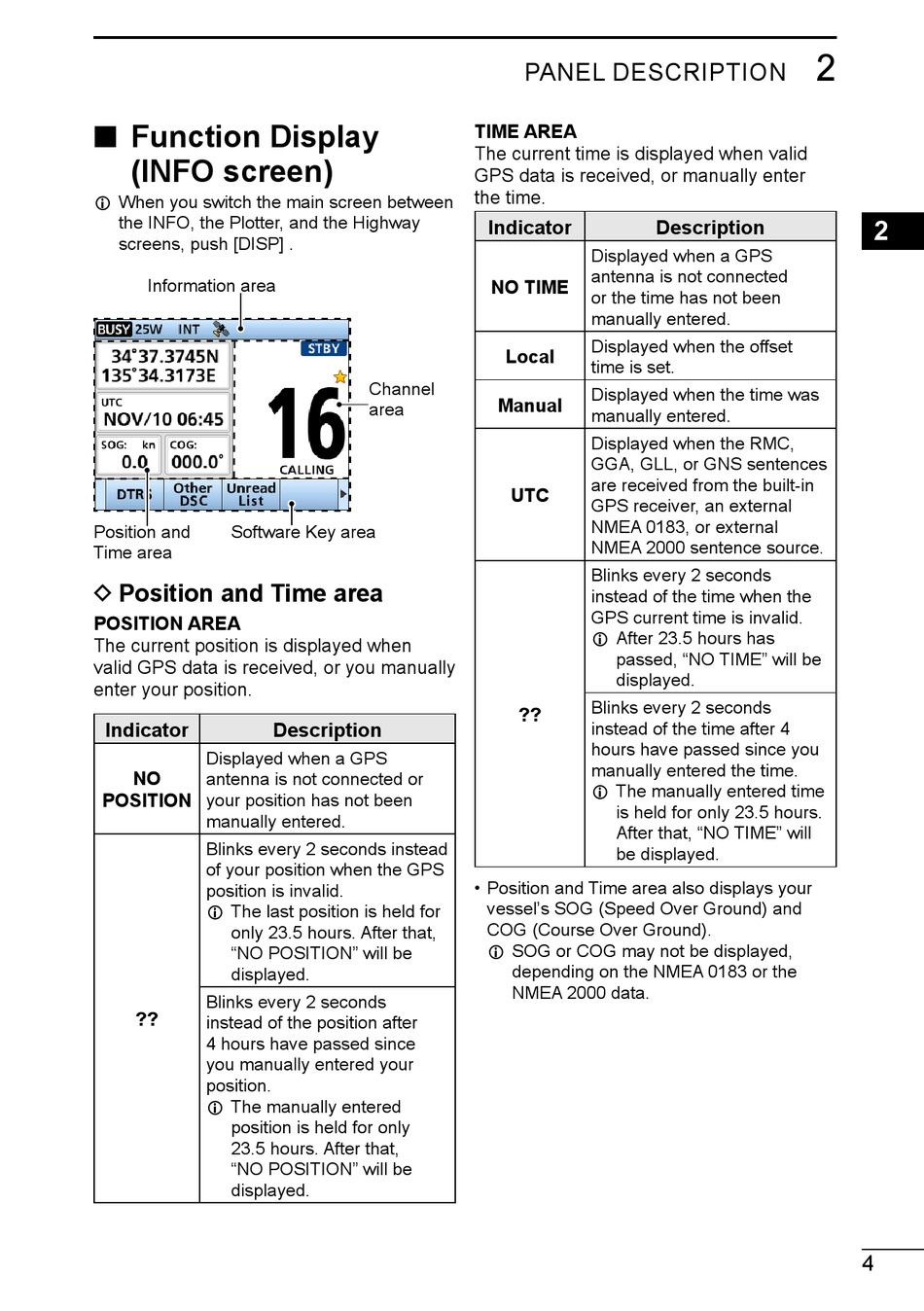

■ Function Display
(INFO screen)
L When you switch the main screen between
the INFO, the Plotter, and the Highway
screens, push [DISP] .
Information area
Position and Software Key area
Time area
D Position and Time area
POSITION AREA
The current position is displayed when
valid GPS data is received, or you manually
enter your position.
Indicator
Displayed when a GPS
NO
antenna is not connected or
POSITION your position has not been
manually entered.
Blinks every 2 seconds instead
of your position when the GPS
position is invalid.
L The last position is held for
only 23.5 hours. After that,
"NO POSITION" will be
displayed.
Blinks every 2 seconds
??
instead of the position after
4 hours have passed since
you manually entered your
position.
L The manually entered
position is held for only
23.5 hours. After that,
"NO POSITION" will be
displayed.
Channel
area
Description
PANEL DESCRIPTION
TIME AREA
The current time is displayed when valid
GPS data is received, or manually enter
the time.
Indicator
Displayed when a GPS
antenna is not connected
NO TIME
or the time has not been
manually entered.
Displayed when the offset
Local
time is set.
Displayed when the time was
Manual
manually entered.
Displayed when the RMC,
GGA, GLL, or GNS sentences
are received from the built-in
UTC
GPS receiver, an external
NMEA 0183, or external
NMEA 2000 sentence source.
Blinks every 2 seconds
instead of the time when the
GPS current time is invalid.
L After 23.5 hours has
passed, "NO TIME" will be
displayed.
Blinks every 2 seconds
??
instead of the time after 4
hours have passed since you
manually entered the time.
L The manually entered time
is held for only 23.5 hours.
After that, "NO TIME" will
be displayed.
• Position and Time area also displays your
vessel's SOG (Speed Over Ground) and
COG (Course Over Ground).
L SOG or COG may not be displayed,
depending on the NMEA 0183 or the
NMEA 2000 data.
