9
OTHER FUNCTIONS

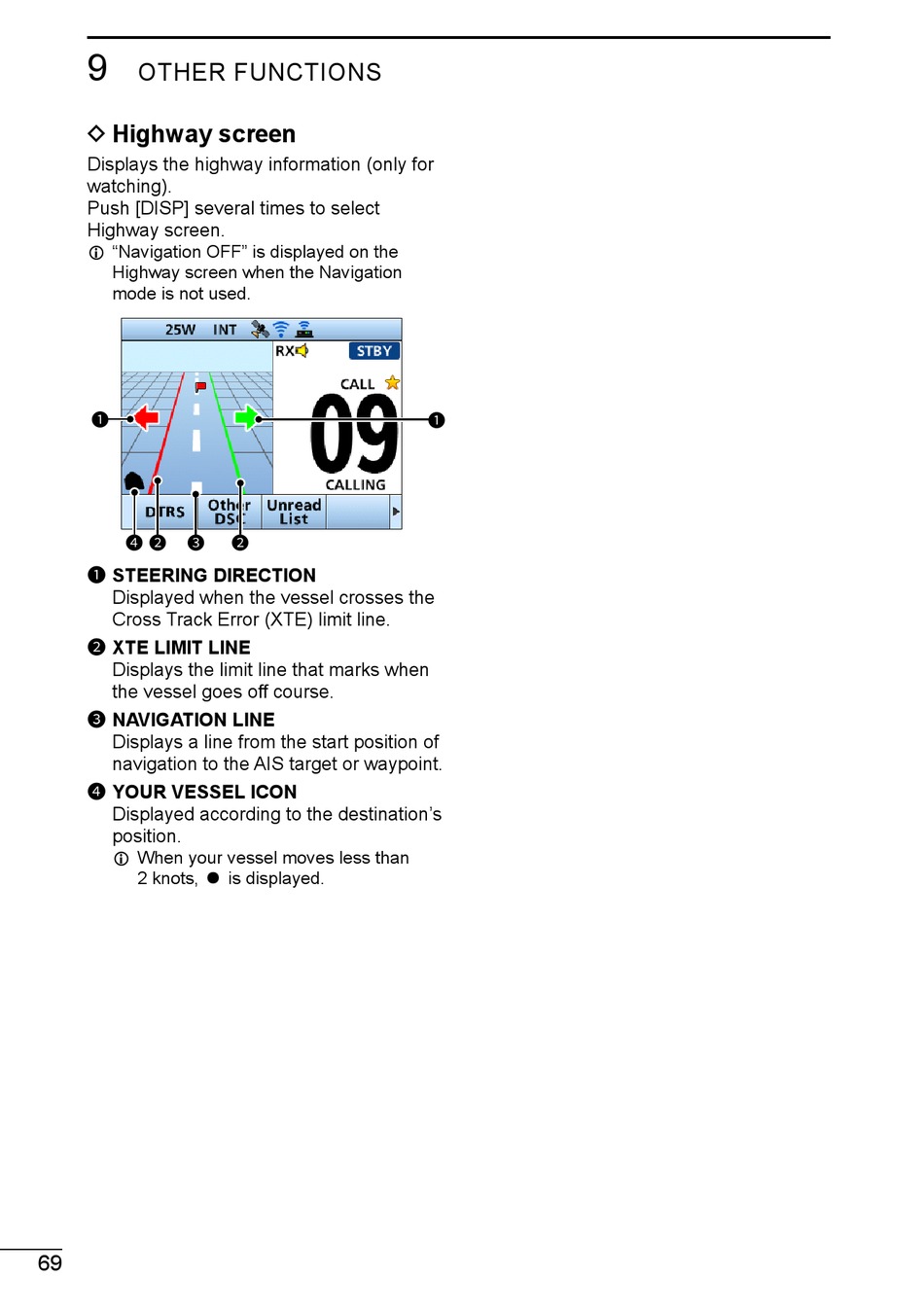

D Highway screen
Displays the highway information (only for
watching).
Push [DISP] several times to select
Highway screen.
L "Navigation OFF" is displayed on the
Highway screen when the Navigation
mode is not used.
1
4 2 3
1 STEERING DIRECTION
Displayed when the vessel crosses the
Cross Track Error (XTE) limit line.
2 XTE LIMIT LINE
Displays the limit line that marks when
the vessel goes off course.
3 NAVIGATION LINE
Displays a line from the start position of
navigation to the AIS target or waypoint.
4 YOUR VESSEL ICON
Displayed according to the destination's
position.
L When your vessel moves less than
2 knots,
69
2
is displayed.
