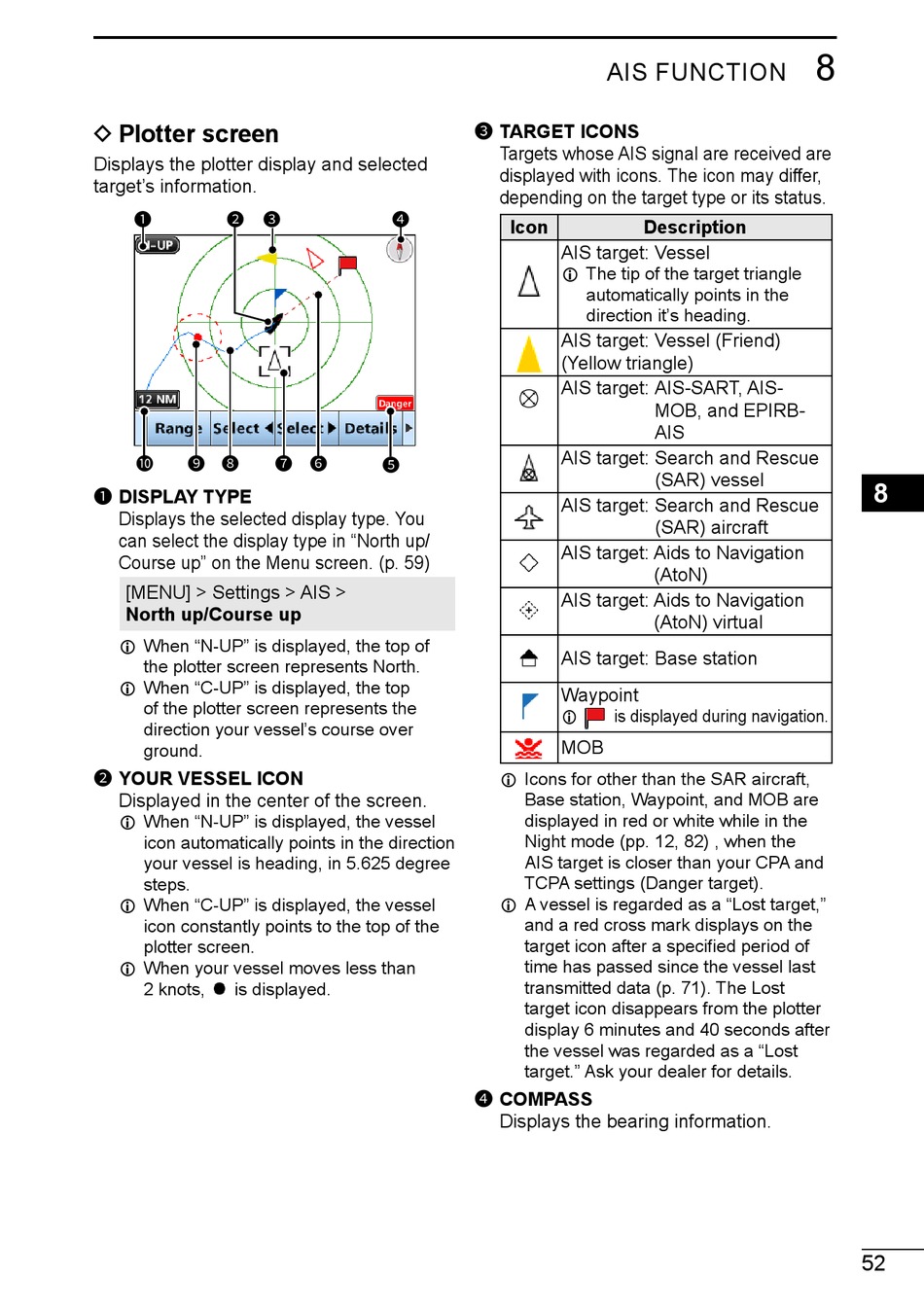

Icom IC-M510 Instruction Manual page 65

D Plotter screen
Displays the plotter display and selected
target's information.
1 2 3
10 9 8
1 DISPLAY TYPE
Displays the selected display type. You
can select the display type in "North up/
Course up" on the Menu screen. (p. 59)
[MENU] > Settings > AIS >
North up/Course up
L When "N-UP" is displayed, the top of
the plotter screen represents North.
L When "C-UP" is displayed, the top
of the plotter screen represents the
direction your vessel's course over
ground.
2 YOUR VESSEL ICON
Displayed in the center of the screen.
L When "N-UP" is displayed, the vessel
icon automatically points in the direction
your vessel is heading, in 5.625 degree
steps.
L When "C-UP" is displayed, the vessel
icon constantly points to the top of the
plotter screen.
L When your vessel moves less than
2 knots, is displayed.
4
7 6
5
AIS FUNCTION
3 TARGET ICONS
Targets whose AIS signal are received are
displayed with icons. The icon may differ,
depending on the target type or its status.
Icon Description
AIS target: Vessel
L The tip of the target triangle
automatically points in the
direction it's heading.
AIS target: Vessel (Friend)
(Yellow triangle)
AIS target: AIS-SART, AIS-
AIS target: Search and Rescue
AIS target: Search and Rescue
AIS target: Aids to Navigation
AIS target: Aids to Navigation
AIS target: Base station
Waypoint
is displayed during navigation.
L
MOB
L Icons for other than the SAR aircraft,
Base station, Waypoint, and MOB are
displayed in red or white while in the
Night mode (pp. 12, 82) , when the
AIS target is closer than your CPA and
TCPA settings (Danger target).
L A vessel is regarded as a "Lost target,"
and a red cross mark displays on the
target icon after a specified period of
time has passed since the vessel last
transmitted data (p. 71). The Lost
target icon disappears from the plotter
display 6 minutes and 40 seconds after
the vessel was regarded as a "Lost
target." Ask your dealer for details.
4 COMPASS
Displays the bearing information.
8
MOB, and EPIRB-
AIS
(SAR) vessel
(SAR) aircraft
(AtoN)
(AtoN) virtual
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
52
