OTHER FUNCTIONS

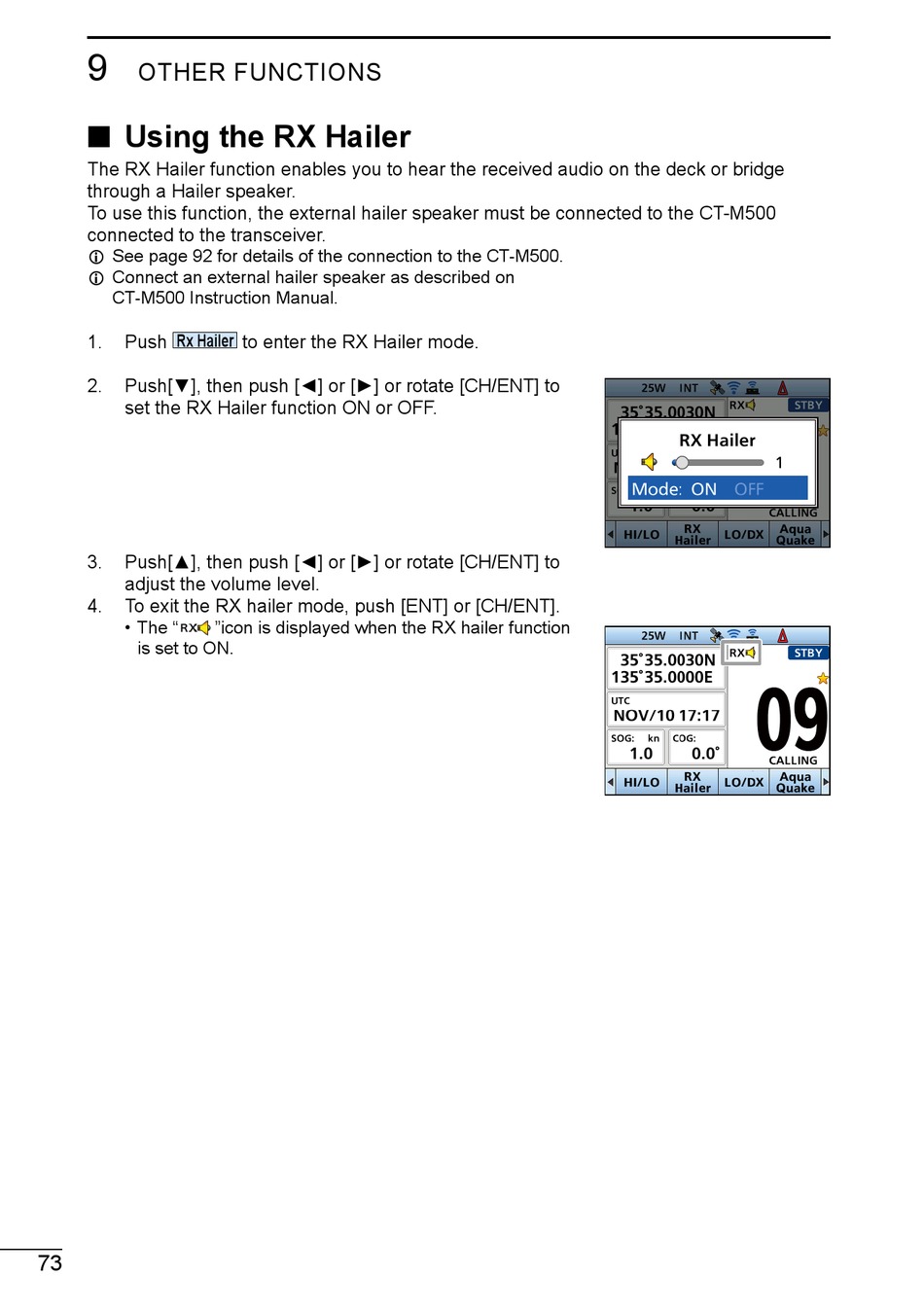

■ Using the RX Hailer

The RX Hailer function enables you to hear the received audio on the deck or bridge
through a Hailer speaker.
To use this function, the external hailer speaker must be connected to the CT-M500
connected to the transceiver.
L See page 92 for details of the connection to the CT-M500.
L Connect an external hailer speaker as described on
CT-M500 Instruction Manual.
Rx Hailer
1. Push
2. Push[▼], then push [◄] or [►] or rotate [CH/ENT] to
set the RX Hailer function ON or OFF.
3. Push[▲], then push [◄] or [►] or rotate [CH/ENT] to
adjust the volume level.
4. To exit the RX hailer mode, push [ENT] or [CH/ENT].
• The "
is set to ON.
73
to enter the RX Hailer mode.
"icon is displayed when the RX hailer function
