chassis. The following figure shows the backplane hooks and the corresponding slots on
the chassis.
3. Insert the screws included in your kit into the flanges on the bottom edge of the backplane. Use
a #2 Phillips screwdriver to screw both screws into the chassis, as shown in
Figure 19. Insert screws on the bottom edge of the expansion backplane
32 • Chassis and Blade Installation
Expansion Backplane
and hooks

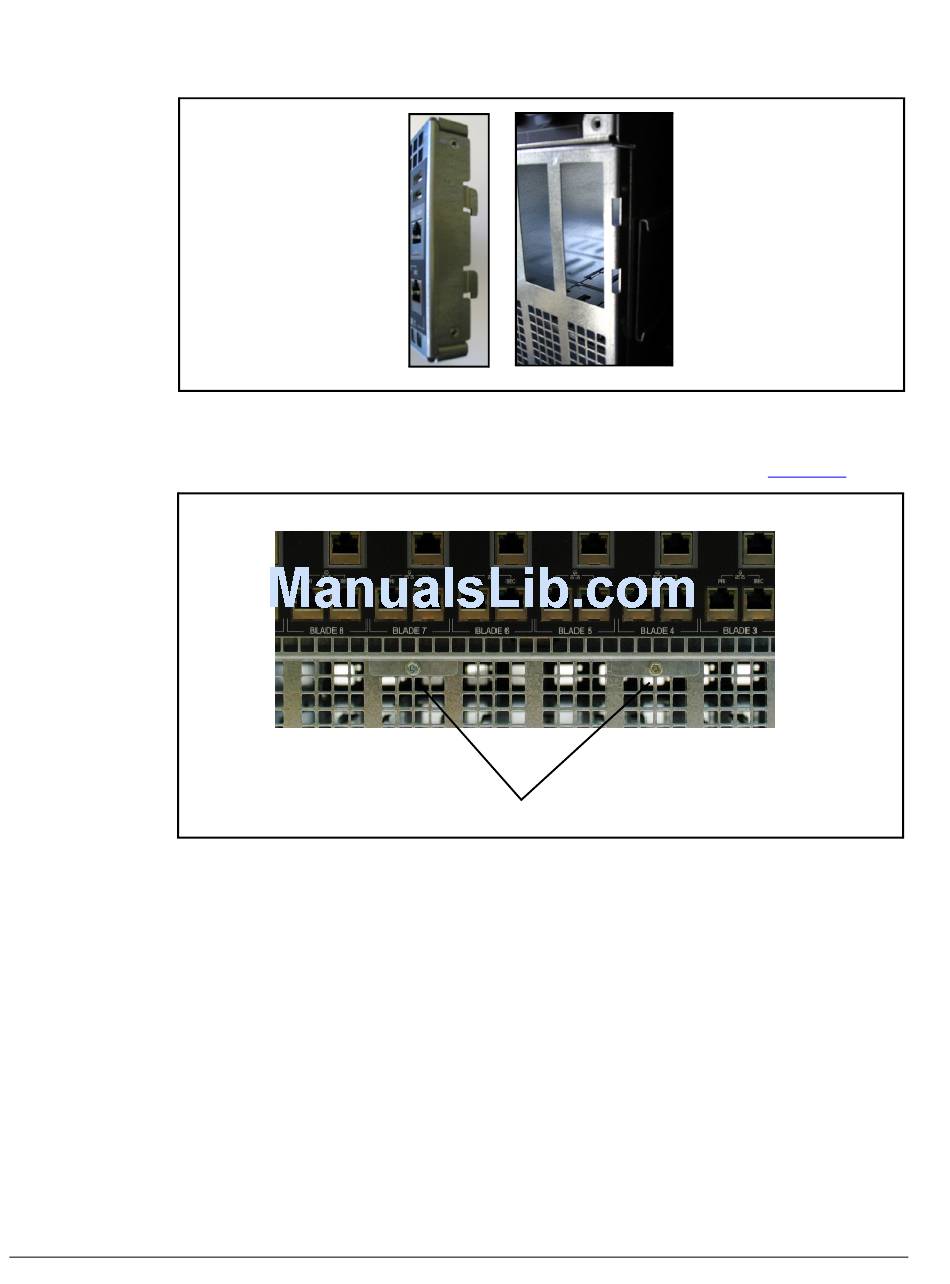

Figure 18. Attaching the expansion backplane to a chassis
Insert both screws
Chassis with slots for
backplane hooks
Figure 19.
